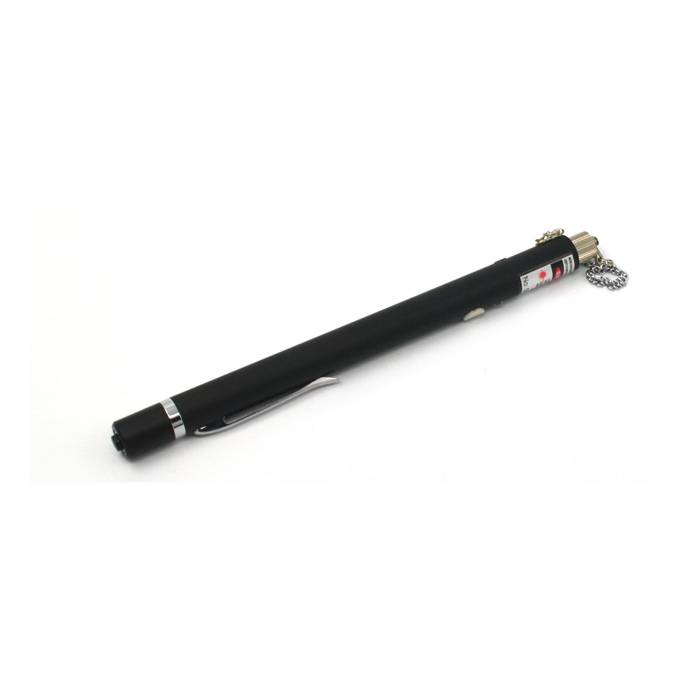

10 mw Pen Type Visual Fault Locator

10mw Pen Style Visual Fault Locator /visible laser source/Fiber fault detector/ optical fault locator / 10-12km

Description:

• Product:Visual Fault Locator
• Material:Aluminum
• Laser Wavelength:650nm
• Laser Output:10mwMax Laser
• Testing Range:10Km
• Dimension:16x 176mm
• Power:2xAA Batteries(Not included)
• Color: Black

Specification:

• This Pen type VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing,fiber routing and continuity checking in optical networks. It finds breakpoints, poor connections, bending or cracking in fiber optic cables; and it can find faults in an OTDR dead zone and is used for end-to-end visual fiber identification.

Applications

• Maintenance in telecom, CATV
• Test Lab of optical fibers
• Fiber routing and continuity checking in optical networks
• Other fiber optic measurements

Features

• 1.Central wavelength :650nm±10nm
• 2.Emitter type :FP-LD
• 3.Output power :5mw
• 4.Laser Range:up to 5km
• 5.Operating temperature :-20°C to 60°C
• 6.Storage temperature:-40°C to 85°C
• 7.Pulse Frequency: Class 2Hz
• 8.Applicable fiber type: single mode or multi mode
• 9. Connector: 2.5mm FC/SC/ST universal connector
• 10.Continuous-wave or pulsed mode with constant output power

sfiberoptic.Com is one of the largest and best 10mw pen stype visual fault locator manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized 10mw pen stype visual fault locator in stock with our factory. Also, free sample is also available if necessary.
