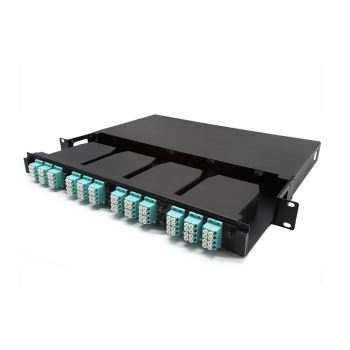

12/24 Fiber MTP/MPO 8 Cassettes Port High Density Patch Panel
12/24 Fiber MTP/MPO 8 Cassettes Port High Density Patch Panel LGX based rack mount panels for 19” and 23” racks, premises wall mount and NEMA rated outside plant panels. The panels can be configured to be patching, splicing or patch and splicing. The product line also includes a complete line or offering of MPO cassette modules for MPO trucks splitting to SFP+, QSFP+, CFP+ and CXP.

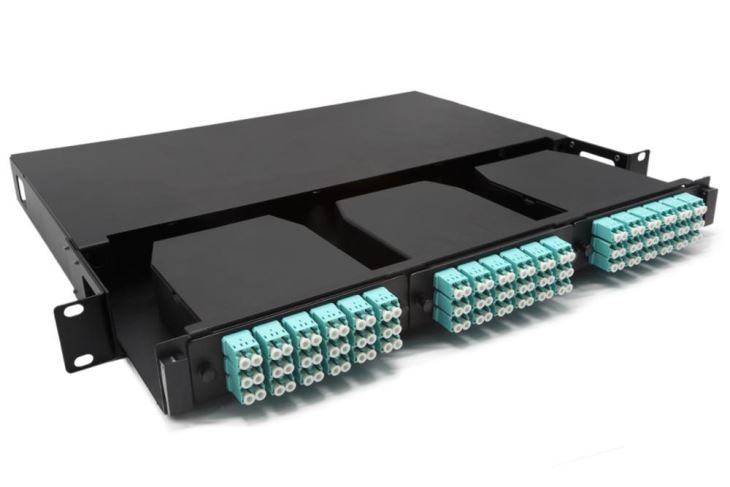

High Density Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU footprint. This design has been accomplished by staggering the mounting ears. The HD patch panels are ideal for high fiber count applications and will fit into any standard 19” or 23” rack by rotating the panel’s mounting ears.
Features
- Compliance with the Standard of YD/T925-1997
- Excellent Armor Plate,Good-looking Figure
- Design for large splicing tray
- One to four entry are available
- Metal assemblies of optic cable terminating box and optic cable metal strength chip
- Complete accessories
- Reasonable designing
- Large capacity,Core can reach 12-144cores
- Reliability
- Good protection of pigtails
- Easy to installation and maintenance
- Apply to extensive field
Application
- Applicable for fiber termination,protection and distribution
- FTTH
Specification 12/24 Fiber MTP/MPO 8 Cassettes Port High Density Patch Panel
- Operating Temperature:-25°C-+45°C
- Relative Hunmidity:≤95%(40°C)
- Atmosphere Pressure:70KPa-106KPa
- Insulated Resistance:≥2x104MΩ/500v(DC)
- Dielectric Strength:≥15KV(DC)/1min,no spark-over and no flying arc
- Fiber Bend Radius:≥40mm
| Dimensions and Capability | |
| Total Fiber Count | 144 |
| Dimensions(W*H*D) | 485mm x120mm x44mm |
| Fiber Optic Mode | SM OM1 OM2 OM3 OM4 |
| Insert Loss(LC) | 0.18(Avg); 0.30(Max) |
| Return Loss(LC) | > 55/65dB(UPC/APC) |
| Technical Specification | |
| Front | |
| Front Adapter Type | LC |
| Front Port Count | 144 |
| Front Port Fiber Count | QUAD |
| Rear | |
| Rear Adapter Type | MPO/MTP |
| Rear Port Count | 12 |
| Rear Port Fiber Count | 12 |
| Operation Conditions | |
| Operating Temperature | -20℃ — +60℃ |
| Storage Temperature | -40℃ — +70℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Patch panel, 1 unit |
| Package Dimensions(W*H*D) | 510mm*210mm*120mm |
| Material | Carton box |
| Weight | 8KG |
| Lead Time | 10-15 working days normally |
