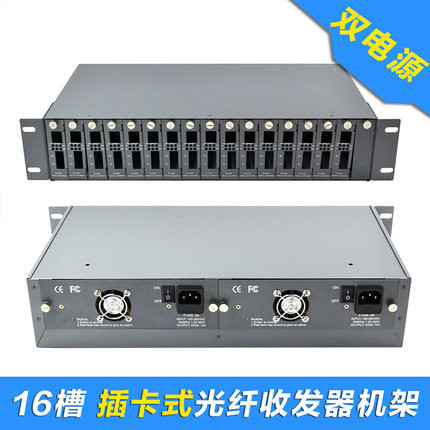

- 16 slots fiber media converter rack chassis card type with dual power supply
The Chassis-based Media Converters include a number of independent media converters and a chassis capable of housing up to 14 media converters. You can start with single media converters, each equipped with its own housing and AC power adapter. When your requirements grow big, you can mount a chassis in your equipment rack and install your media converters in the chassis. The housing of each media converter can be easily removed, and the media converter PC board can be slid into the chassis.
The chassis lets you install multiple media converters in an equipment rack together with the network devices for which they provide media conversion. This provides for space saving, and the cabling will look neat. The chassis comes with its own universal AC to DC power supply. For maximum power availability, an optional redundant power supply is available for installation in chassis.
sfiberoptic.COM supply two types of rack-mounted chassis for unmanaged media converters: 2U 14 slots media converter chassis and 2U 16 slots media converter chassis. The 14 slots media converter chassis supports plug-and-play installation of stand-alone media converters convert modules. It can hold at most 14 pieces media converters. The 16 slots media converter chassis should be used with card-type media converters.It can hold at most 16 card-type converters of 10/100M.Note：The Rack Chassis is empty, no Media Converter is included.
Key Features
For up to 16 Single-mode and Multi-mode card-type fiber media converters
Supports one fiber port + 1xRJ45 card-type Ethernet media converter
Standard: IEEE802.3 10/100 Base T Ethernet, IEEE802.3U, 100Base V TX/FX Fast Ethernet, IEEE802.3 x Flow control, IEEE802.3.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Power configuration: Dual power supply
Hot Swap Support for the Converters to ensure a flexible connection
Equipped with a second, redundant Power Supply for maximum stability and reliabilityApplications
Number of slot: 16
Media converters adapted: 16 slots chassis card-type media converters
Power in: AC 100 V-260 V, 50-60Hz ; or DC 48V
Power out: DC + 5V , 12A (single power) or 24A (dual power)
Diameter of DC plug: 2.5/5.5mm
Pipple: ≤50Mv
Noise: ≤50Mv
Protection of power supply: circuit-breaker when over voltage; circuit-breaker when over flow; circuit-breaker when short circuit
Operating Temperature: 0℃-+50℃
Storage Temperature: -20℃-+85℃
Relative Humidity: 5%-95%
Dimensions: L485mm, W231mm, H90mm; 19 inches 2U
