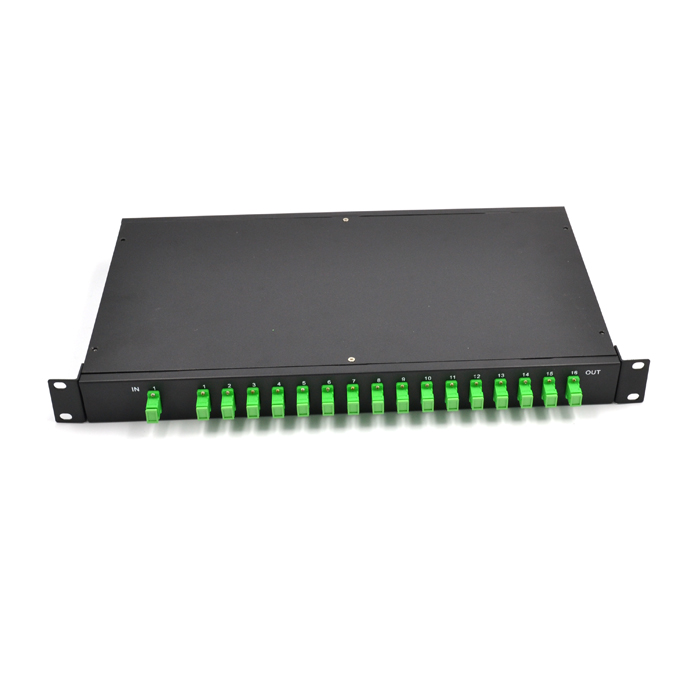

1X16 1U 19“Fiber Rack Mounted PLC Splitter Rack PLC splitter consists of the PLC splitters and the enclosure body, it is with standard size and for easy installation, there are many adapters interfaces optional such as SC or FC. The rack PLC splitters suit for the indoor or outdoor applications in FTTx projects, CATV or data communication centers.
Rack PLC splitters are different types including 1×4, 1×8, 1×16, 1×32 ,1×64 PLC Splitters and 2×4, 2×8, 2×16, 2×32 etc types. All with 1U 19″ rack mount enclosures. Our Rack mounted 1U PLC splitters meet the Telcordia standards and with very competitive prices. Buy from the direct manufacturer to save your money and time.sfiberoptic.Com LC, SC, FC or ST adapters for choice. APC or UPC on customer request.

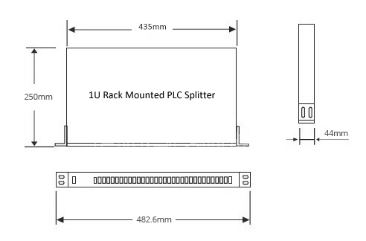

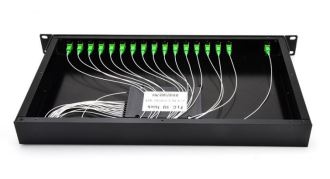

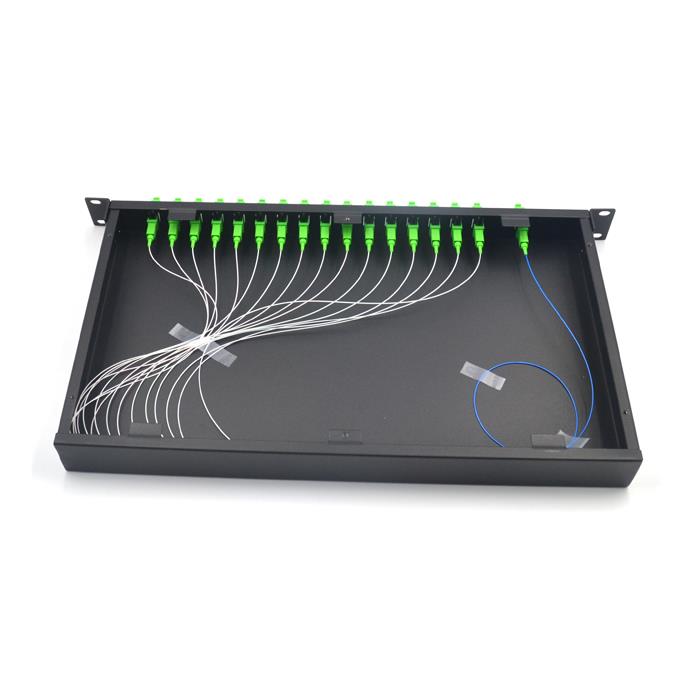

1U Rack Mounted PLC Splitter Size and install Picture for you reference(Usually inside Rack mounted install 2.0mm ABS Box PLC Splitter ,0.9mm is also available):
Rack PLC splitter Key Features
19” Rack Mount Metal Box Configuration Good uniformity and low insertion loss Low Polarization Dependent Loss Excellent Environmental Stability Excellent Mechanical Stability Telecordia GR-1221 and GR-1209 Components through TLC-Certified,Conform to YD1117-2001
Rack PLC splitter Applications
Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive optical networks(PON, GEPON)
Rack PLC splitters Specifications:
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
Operating wavelength（nm） | 1260-1650 | ||||||
Insertion loss (dB) | Typical | 3.6 | 7.2 | 10.5 | 13.5 | 17 | 19.5 |
Maximum | 4 | 7.5 | 11 | 14 | 17.2 | 21 | |
Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 1 | 1 | 2 |
Maximum | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 |
Maximum | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |
Wavelength dependent loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.3 |
Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
Return loss (dB) | Minimum | 55/50 | |||||
Directivity (dB) | Minimum | 55 | |||||
Operating temperature (℃) | -20 to 85 | ||||||
Storage temperature (℃) | -40 to 85 | ||||||
Optical fiber type | SMF-28 Or customer required | ||||||
Optical fiber length (m) | 1.2 or customize | ||||||
Order Information
| Input Channel Number | Input Optical Fiber Type | Output Channel Number | Output Optical Fiber Type | Connector Type In/Out | Fiber Length | Package Type |
| 1=1 channel 2=2 channel | 0=250um bare fiber 1=900um loose tube 2=2.0mmcable 3=3.0mmcable | 02=2 channel 04=4 channel 08=8 channel 16=16 channel 32=32 channel 64=64 channel | 0=250um bare fiber 1=900um loose tube 2=2.0mmcable 3=3.0mmcable | 0=no connector 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=LC/PC 6=LC/APC S=Specify | 10=1.0 meter 15=1.5 Meter 20=2.0 Meter 30=3.0 Meter | 1=S.S Tube 1 2=S.S Tube 2 3=S.S Tube 3 4=ABS Box 5=LGX Box 6=19 Inch Rack |
More Information for 1×16 Rack Mounted PLC Splitter ,please feel free to contact with us
sfiberoptic.Com is one of the largest and best 1×16 fiber plc splitter, 1u 19 rack mount, sc/apc manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized 1×16 fiber plc splitter, 1u 19 rack mount, sc/apc in stock with our factory. Also, free sample is also available if necessary.
