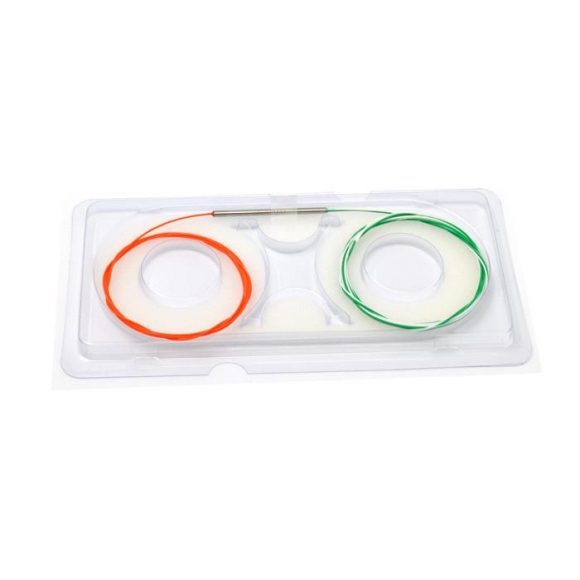

1X2 Multimode Fiber Fused Coupler/Splitter 0.9mm Without Connectors

1×2 Multimode Fiber Fused Coupler/Splitter 0.9mm without connectors

Multimode optical fiber couplers are widely used in optical local networks or FTTx networks that use multimode fibers. These couplers can be fabricated using 50/125 or 62.5/125 micron fibers and at central wavelengths of 850nm or 1310nm (other wavelengths available upon request).
Features:

• Broad operating band
• Low excess loss
• High stability and reliability

Applications:

• Multimode fiber communication systems
• Optical LAN
• Test instruments
• Optical fiber sensors

Grade		P	A
Center Wavelength(nm)		850,1310 or other wavelengths
Max. Excess Loss(dB)		0.4	0.7
Typ. Insertion Loss(dB)	50/50	3.6/3.6	3.9/3.9
	40/60	4.6/2.7	4.9/3.1
	20/80	7.7/1.3	8.0/1.8
	10/90	10.8/0.9	11.3/1.3
	5/95	14.3/0.6	14.9/0.9
	1/99	21.2/0.4	22.0/0.7
Uniformity(dB)		0.4	0.6
Directivity(dB)		>40
Operating Temperature(℃)		-20-70
Storage Temperature(℃)		-40-85
Fiber Type		50/125um or 62.5/125um
Package Dimensions (mm)		250um bare fiber:3.0*40 0.9mm Loose tube:3.0*56 2.0mm or 3.0mm cable: 90*16*9

Ordering Information:
MMC-w-a-b-e-f-c-d
w: Center Wavelength in nm; w=1310 for 850nm
a: Port Number of the coupler; a=1×2 or a=2×2
b: Quality Grade of the coupler; b=A for standard grade coupler; b=P for premium grade coupler.
e: Coupling Ratio of the coupler; e=50/50 for 50% coupling ratio; e=10/90 for 10% coupling ratio; e=5/95 for 5% coupling ratio, etc.
f: Fiber Type of the coupler; f=50 for 50/125 micron MM fiber; f=62.5 for 62.5/125 micron MM fiber.
c: Fiber Pigtail Type; c=0 for 250 micron bare fiber; c=1 for 0.9mm loose tube pigtail, etc.
d: Connector Type, d=FA for FC/APC, d=SU for SC/UPC, d=N for no connectors, etc.
Example: MMC-850-1×2-P-50/50-62.5-1-FU
