What Is 24 Core GYXTW Fiber Optic Cable Unitube Light-armored cable Aerial Duct Direct Burial two parallel steel wires 1.2mm strength members with a water-resistant filling compound Jelly
24 Core GYXTW Fiber Optic Cable Unitube Light-armored cable Aerial Duct Direct Burial two parallel steel wires 1.2mm strength members with a water-resistant filling compound Jelly. This type of fiber optic cable has been praised due to its exceptional performance in Long Distance Symmetric role. As a matter of fact, GYXTW fiber optic cable plays an important role in the telecommunication industry and it’s highly recommended by many technicians.
GYXTW Fiber Optic Cable Unitube Light-armored cable Aerial Duct Direct Burial two parallel steel wires 1.2mm strength members with a water-resistant filling compound JellyDescription of Definition of 24 Core GYXTW Fiber Optic Cable
GYXTW fiber optic cable is commonly available from 2 fiber cores to 24 fiber cores.
it has two types which includes; single mode GYXTW fiber optic cable type and multimode GYXTW fiber optic cable types.
Fiber optic cable GYXTW, 2-24 fibers
jelly filled and fiber contained central loose tube
copolymer coated steel tape
two parallel steel wires 1.2mm
PE outer sheath, G652D SM or G655 fiber
1km-4km, pure wooden drum package
Model NO.: 24 Core GYXTW Fiber Optic Cable
Conductor Material: Fiber
Type: G652 or G655
Conductor Type: Stranded
Certification: CE, ISO
Apply for: Aerial/ Duct /Direct Burial
Cable Type: Sm or Mm
Material of Jacket: MDPE/HDPE
Model Name: Fiber Optic Cable
Delivery Time: 10 Days
Origin: China
Application: Fiber Optic Cable
Cover Material: PE
Wire Core Material: Steel
Fiber Count: 24 cores
Fiber Type: G652/G655
Fiber Optic Cable Tube: Central Loose Tube
Model No.: GYXTW
MOQ: 2 Drum
Transport Package: 4km Wooden Drum
HS Code: 85176229
GYXTW Fiber Optic Cable Unitube Light-armored cable Aerial Duct Direct Burial two parallel FRP strength members with a water-resistant filling compound JellyFeatures of Definition of 24 Core GYXTW Fiber Optic Cable
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 - +60 ℃
Waterproofing layer providing strong water-resistance performance
Steel tape with PE outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable
Up to 24 fiber cores
The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.
Double wire as strength member provides excellent strain performance.
Applications of 24 Core GYXTW Fiber Optic Cable
These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.
Laying modes: Aerial & Conduit
Rural communication, local trunk line, CATV & computer networks system
Long-distance communication and LAN

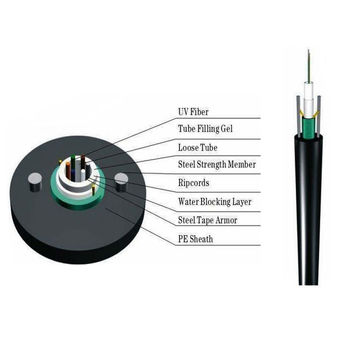

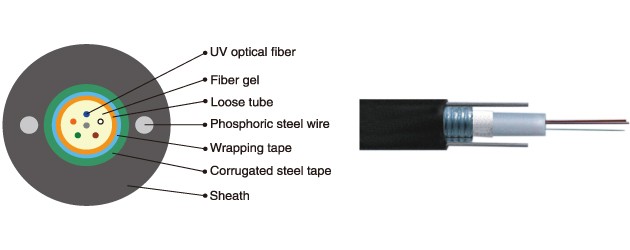

Structure configurations:
Waterproofing layer between the steel tape and cable core.
Double-sided PE corrugated steel tape with PE sheath
Parallel double steel wire as strengthening member
the GYXTW fiber optic cable is a fantastic type of fiber optic cable that has lead to significant change in the telecommunication industry. The research showed that, GYXTW fiber optic cable has some super features as compared to other types of fiber optic cable. Additionally, GYXTW fiber optic cable is widely available in the market and you can easily purchase one when need comes. Furthermore, its installation does not require technical experiences and therefore, you can install it for yourself.
| Cable Type | Fiber Count | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100m | Bending Radius Static/Dynamic mm |
| GYXTW-2-12 | 2-12 | 9.0 | 85 | 600/1000 | 500/1500 | 15D/30D |
| GYXTW-14-24 | 14-24 | 9.0 | 85 | 600/3000 | 1000/3000 | 15D/30D |
| GYXTW-2-12 | 2-12 | 10.0 | 105 | 1000/3000 | 1000/3000 | 15D/30D |
| GYXTW-14-24 | 14-24 | 10.0 | 105 | 1000/3000 | 1000/3000 | 15D/30D |
| GYXTW-26-36 | 26-36 | 14.0 | 190 | 1000/3000 | 1000/3000 | 15D/30D |
| GYXTW-38-48 | 38-48 | 15.0 | 216 | 1000/3000 | 1000/3000 | 15D/30D |
Storage/Operating Temperature : -40℃ to + 70℃
what is GYXTW fiber optic cable
what is GYXTW fiber optic
GYXTW fiber cable types
GYXTW fibre optic cable
GYXTW single mode fiber optic cable
GYXTW optical fiber
GYXTW fiber optic cable types
GYXTW optical fiber cable
GYXTW fibre optic
GYXTW optical cable
GYXTW fiber optic cable price
GYXTW fiber cable price
GYXTW fiber optic cables
GYXTW multimode fiber optic cable
GYXTW fiber optics cable
what is a GYXTW fiber optic cable
GYXTW fiber optics
GYXTW fiber optic cable cost
GYXTW fiber optic cable manufacturers
GYXTW bulk fiber optic cable
GYXTW fiber optic cable supplier
GYXTW Fiber Optic Cable Unitube armored cable Aerial Duct Direct Burial two strength members water-resistant filling Jelly
Fiber Optic Cable Transmission Distances
Dram for indoor Fiber Optic cable light weight cables 2Km
Dram for outdoor Fiber optic cable heavy weight cables 2Km

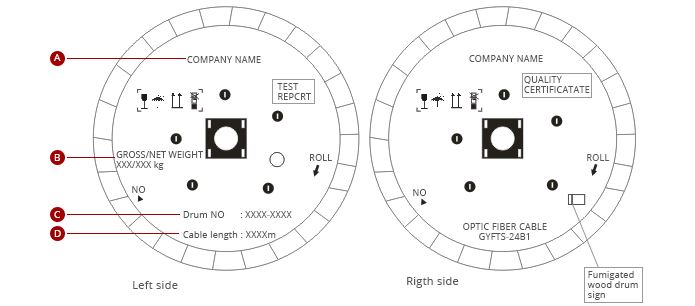

Cable Dram Information and markingwiki
