What is GJFZY53- Fire resistant cable 24 Fibers Multimode 50/125 OM4, LSZH, Single-Armored Double-Jacket, Tight Buffered Distribution Waterproof Indoor/Outdoor Cable
with longitudinally applied glass yarn strength Indoor/Outdoor fiber optic cable delivers outstanding audio, video, telephony and data signal performance for educational, corporate and government campus applications. With a low bending radius and lightweight feature, this cable is suitable for both indoor and outdoor installations. Typical indoor/outdoor cables are loose tube and tight buffer designs, and we also supply Ribbon cables , drop cables, distribution cables and break-out cables These are available in a variety of configurations and jacket types to cover riser and plenum requirements for indoor cables and the ability to be run in duct, direct buried, or aerial/lashed in the outside plant. Any fiber count and cable length can be available.members. It features a double LSZH jackets with the outer jacket being of UV stabilised, water and moisture resistant. Between the 2 sheaths there is a corrugated steel tape making the cable rodent proof. The cable is suited for LAN backbones, direct burial, ducts, under floor or ceiling spaces.
Specifications
Cable Type Tight-Buffered Distribution Cable
Fiber Count 24 Fibers
Cable Diameter 11.3 ± 0.5mm
Cable Weight 109kg/km
Inner/Outer Jacket LSZH (Black)
Fiber Type Multimode 50/125 OM4

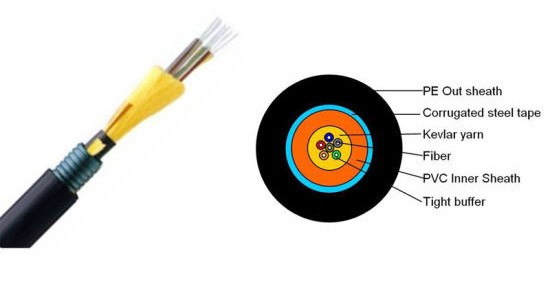

Armor Layer Corrugated Steel Tape
Strength Member Material Glass Yarn
Bending Radius (long/short term) 10D/20D (mm)
Operating/Storage Temperature -20 to +60°C
Tensile Strength (long/short term) 200/1000N
Crush Load (long/short term) 1000/3000 (N/100mm)
Feature and Application
Small cable diameter, high tensile strength
Good mechanical and temperature performance
Robust 900um tight buffered fibers for ease of termination
Outer jacket has good anti-ultraviolet, water blocking performance
Glass yarn strength members and steel tape armor for rodent resistance
Short run interconnect links
Under floor or ceiling spaces
Installation in trunking, LAN backbones
Duct/conduit, aerial, direct burial application
Fiber backbones in riser and horizontal configurations
Jacket material: PVC (Environmental lame-retardant polyvinyl chloride), LSZH (Environmental low smoke zero halogen flame retardant polyolefin), or other customized material.
Jacket color: blue, orange, green, brown, gray, red, black, yellow, and violet, pink, aqua.
Fiber type: B1-G.652, B1.3-G.652.D, B4-G655, A1-50/125um, A1b-62.5/125um, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G.657, E1.1- EasyBad Plus G.657, etc.
Cable Dimension: the nominal cable dimension, or other customized dimension;
Fiber Count: total number of fibers in the cable

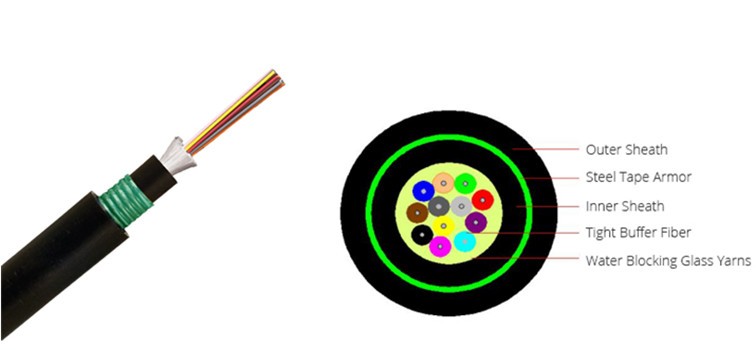

MOQ: 1km-2km, or other customizedTight buffered distribution waterproof indoor/outdoor cable contains 4, 6, 8, 12, or 24, 900um tight buffered optical fibers with longitudinally applied glass yarn strength members. It features a double LSZH jackets with the outer jacket being of UV stabilised, water and moisture resistant. Between the 2 sheaths there is a corrugated steel tape making the cable rodent proof. The cable is suited for LAN backbones, direct burial, ducts, under floor or ceiling spaces.Product Specification
| Connector Type | Tight-Buffered Distribution Cable | Fiber Count | 24 Fibers |
| Inner/Outer Jacket | LSZH (Black) | Fiber Type | Multimode 50/125 OM4 |
| Armor Layer | Corrugated Steel Tape | Strength Member Material | Glass Yarn |
| Cable Diameter | 11.8 ± 0.5mm | Cable Weight | 140kg/km |
| Tensile Strength (long/short term) | 500/1000N | Crush Load (long/short term) | 1000/3000 (N/100mm) |
| Bending Radius (long/short term) | 10D/20D (mm) | Operating/Storage Temperature | -20 to +60°C |
Features and Applications
Small cable diameter, high tensile strength Good mechanical and temperature performance Robust 900um tight buffered fibers for ease of termination Outer jacket has good anti-ultraviolet, water blocking performance Glass yarn strength members and steel tape armor for rodent resistance Short run interconnect links Under floor or ceiling spaces Installation in trunking, LAN backbones Duct/conduit, aerial, direct burial application Fiber backbones in riser and horizontal configurationsIdeal Solution for Tight-Buffered Distribution Waterproof Indoor/Outdoor Cable

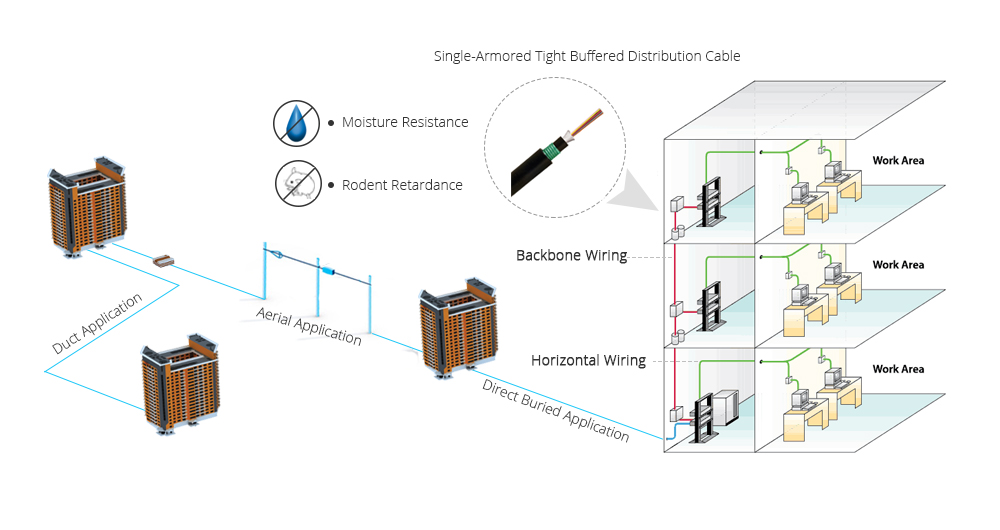

Distribution waterproof indoor/outdoor cable is easy to install and handle. With high mechanical strength, rodent and waterproof protection, the ideal application of the cable is for LAN backbones, direct burial, ducts, trunking, and under floor or ceiling spaces.

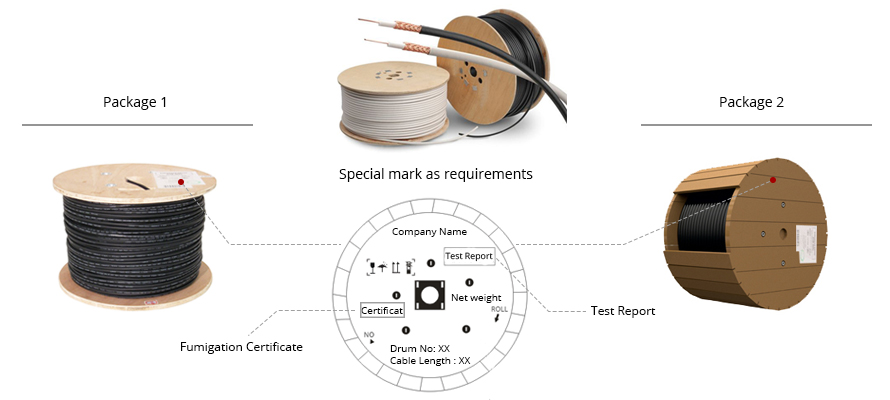

Packaging & Shipping
standardized packaging of cable, and we can ship it as soon as possible for adequate inventory. We pack the cable with roll, then put it into carton. The package provide good protection for cable. Usually we only attach test report on the out package of the cable, but we could also mark as your requirements.
