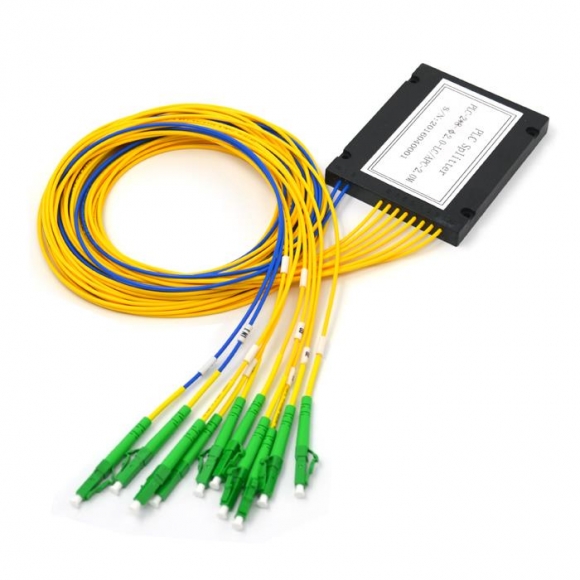

what is 2×8 Fiber Optic Splitter ABS Module 2.0mmwith LC/APC Connectors
2×8 Fiber Optic Splitter ABS Module 2.0mmwith LC/APC Connectors sfiberoptic.Com offers a variety of ABS box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here. The sfiberoptic.Com PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications. All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here.
Options:
1×2, 1×4, 1×8, 1×16, 1×32, 1×64 splits
2×2, 2×4, 2×8, 2×16, 2×32, 2×64 splits
Unconnectorized
Fiber jacketing outside boxes 2mm and up to 3mm
ABS box type or inside metal box/module cassette type
SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options
Custom connector configurations and combinations
Applications:
Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive Optical Networks (PON)
Gigabit Passive Optical Networks (GPON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
Features:
Low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical Stability
Telcordia GR-1221 and GR-1209

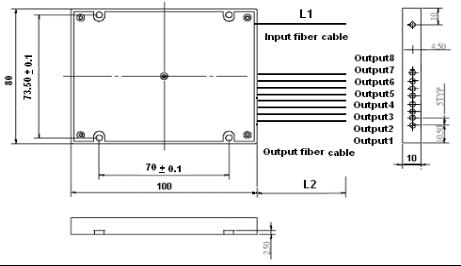

Below is structure of 1X8 and 2X8 PLC Splitter ABS Box type :
structure of 1X8 PLC Splitter ABS Box type2×8 ABS Box PLC Splitter exclude connector loss
| TYPE | 2*8 | ||
| Fiber Type | 9/125 um SMF-28e or customer appoint | ||
| Operating Wavelength(nm) | 1260-1650 | ||
| Insertion Loss(dB) | Typical | 10.8 | |
| Max | 11.2 | ||
| Loss Uniformity(dB) | Max | 1.5 | |
| Polariation Dependent Loss(dB) | Max | 0.4 | |
| Directivity(dB) | ≥55 | ||
| Return Loss (dB) | UPC:50 APC:55 | ||
| Operating Temperature (°C) | -40-+85 | Storage Temperature (°C) | |
2×8 ABS Box PLC Splitter include connector loss
| TYPE | 2*8 | ||
| Fiber Type | 9/125 um SMF-28e or customer appoint | ||
| Operating Wavelength(nm) | 1260-1650 | ||
| Insertion Loss(dB) | Typical | 11.3 | |
| Max | 11.2 | ||
| Loss Uniformity(dB) | Max | 1.5 | |
| Polariation Dependent Loss(dB) | Max | 0.4 | |
| Directivity(dB) | ≥55 | ||
| Return Loss (dB) | UPC:50 APC:55 | ||
| Operating Temperature (°C) | -40-+85 | Storage Temperature (°C) | |
Packing way of ABS Box type PLC Splitter:
Our ABS Box type Fiber Optical PLC Splitter Packing way :
ABS PLC Splitter with SC/APC Connectors ABS PLC Splitter without Connectors
How to Make Orders:
| Configuration Type | Package Style | Fiber Input | Fiber Out Put | Connector type | Each Leg length |
1×2 1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8 2×16 2×32 2×64 |
| 250um | 250um | None | 1M 1.5M |
sfiberoptic.Com is one of the largest and best 2×8 fiber optic plc splitter abs module 2.0mm manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized 2×8 fiber optic plc splitter abs module 2.0mm in stock with our factory. Also, free sample is also available if necessary.
