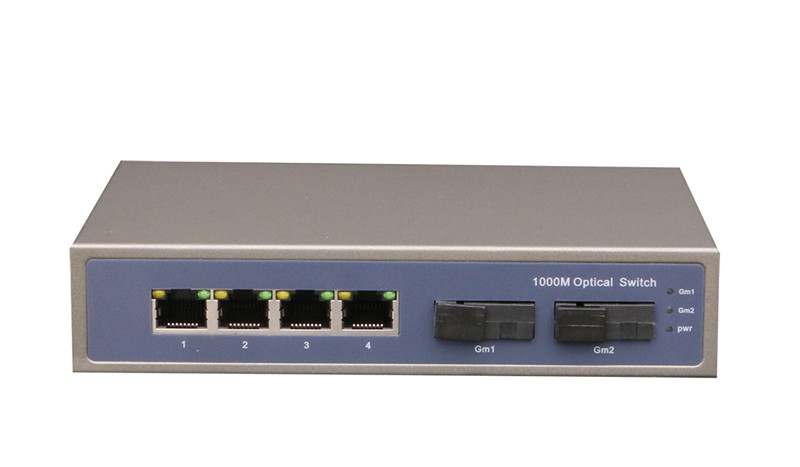

4 Port PoE + 2 Port SC Enhanced POE Switch
applied to POE IPC camera, POE WIFI AP, and POE IPPHONE, and easy for network transmission.
This device comes with SC port, easy for optical fiber remote transmission, and with SFP for remote data upload and data collection.
Main Features
◆ 4GE POE+2SC, 16G bus.
◆ Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
◆ Comply to POE IEEE 802.3af/at standard, all ports standard testing.
◆ Support POE IPC camera, POE WIFI AP, and POE IPPHONE.
◆ SC-ST 25KM.
◆ Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
◆ Auto MDI/MDIX.
◆ Upstream port lightning protection.
◆ MAX 30W, MAX power 65W.
◆ Store-and-forward.
◆ All ports support wire speed switch, jumbo frame transmission.
◆ Zero QFD, self-adaption.
◆ Panel lights can monitor operative mode and malfunction analysisElectric Port
1000M POE
4
SC
2(SC-ST: 1310 A+A)
Function
Exchange
Mechanism
Store-and-forward
Exchange Capacity
16G
MAC
4K
Environmental
Working Temperature：0℃-40℃
Storage temperature ：-40℃-70℃
Working Humidity ：10%-90% RH non-condensing
Storage Humidity：5%-90% RH non-condensing
POE
IEEE802.3af/at, MAX 30W, MAX power 65W
power
DC48V1.25A AC输入110-220V 50/60HZ
Network protocol
IEEE 802.3X
IEEE 802.3i 10BASE-T X
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T G
IEEE 802.3z 1000BASE-X G
IEEE 802.3af /IEEE 802.3at
IEEE 802.3x Flow control
Default
Mode
Common switch
Match
VLAN isolation
Speed
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Gigabit Ethernet 2000Mbps full-duplex
Network Media
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤100m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤100m)
1000Base-TX: Pair 4 Category 6(Cat5e)and above UTP/STP(≤100m)
SC-ST Fiber Max Transm 25KM
Physical Specifications
Product Size：165mm*104mm*35mm(L*W*H)
package Size：300mm*175mm*100mm(L*W*H)
1.0kg
