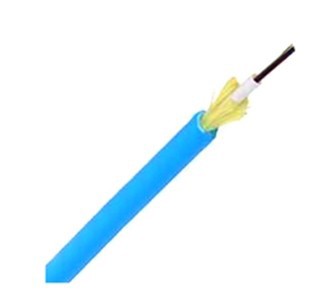

4-6-8-12 Core Loose Tube Indoor/Outdoor Fiber Optic Cable

What is 4-6-8-12 Core Loose Tube Indoor/Outdoor Fiber Optic Cable

4-6-8-12 Core Loose Tube Indoor Outdoor Fiber Optic Cable Indoor/Outdoor cables combine the flame resistance and safety features of an indoor riser or plenum cable with the durability that is critical for Outside Plant Cable. The result is a unique, dual-purpose cable that can save time and money by allowing OSP applications to flow seamlessly indoors, using a single cable and no splices.

Fiber Count : 4-6-8-12 Core

Fiber Type: OS2 9/125 G652D /OM1 62.5/125um Multimode – OM2 50/125um Multimode – 10G OM3 50/125um Multimode – 10G OM4 50/125um Multimode (Other Fiber available Too)

Outer Jacket: LSZH/PVC/Plenum

MOQ: 2km

4-6-8-12 Core Loose Tube Indoor Outdoor Fiber Optic Cable

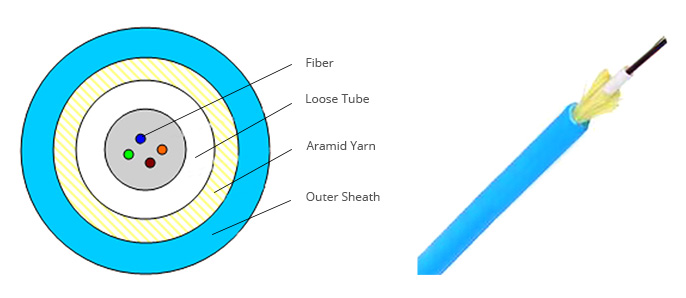

LSZH (LSZH, Low smoke, Zero halogen) material Jacket, good fame retardant performance. The loose tube filled with grease provides special protection for the fiber. The loose tube is surrounded by the Aramid Yarn, which has the filling effect, high temperature resistance, low shrinkage and high tensile strength.

Features:

– Streamlined installation with direct outdoor-to-indoor cable transitions.
– Good fame retardant performance.
– Low shrinkage and high tensile strength.
– High density, easy installation in transitional aerial and duct applications.
– Enhances system performance by avoiding additional splice point attenuation.
– The loose-tube design isolates the fibers from outside environmental and mechanical stresses.
– Low Smoke Zero Halogen available.

Application:

– Outside plant, inter-building installations
– Aerial, duct applications and entrance facilities
– Local area networks
– Private networks

Cable Count	Out Sheath Diameter	Weight	Minimum Allowable Tensile Strength (N)	Minimum Allowable Crush Load （N/100mm)	Minimum Bending Radius (MM)	Storage Temperature
	（MM)	（KG)	short term	long term	short term	long term	short term	long term	（℃）
2	6.0	45.00	600	200	1000	200	20D	10D	-20+60
4	6.0	45.00	600	200	1000	200	20D	10D	-20+60
6	6.0	45.00	600	200	1000	200	20D	10D	-20+60
8	6.0	45.00	600	200	1000	200	20D	10D	-20+60
10	6.0	45.00	600	200	1000	200	20D	10D	-20+60
12	6.0	45.00	600	200	1000	200	20D	10D	-20+60

	G.652	50/125um	62.5/125um
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
@1300nm		≤1.0	≤1.0
@1310nm	≤0.36
@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
@1300nm		≥1200	≥600
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)	≤1260

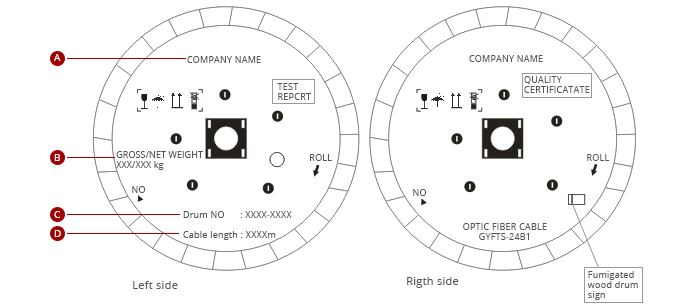

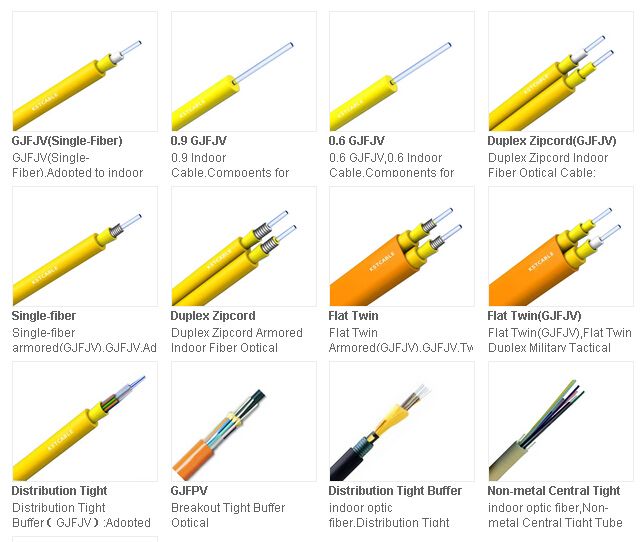

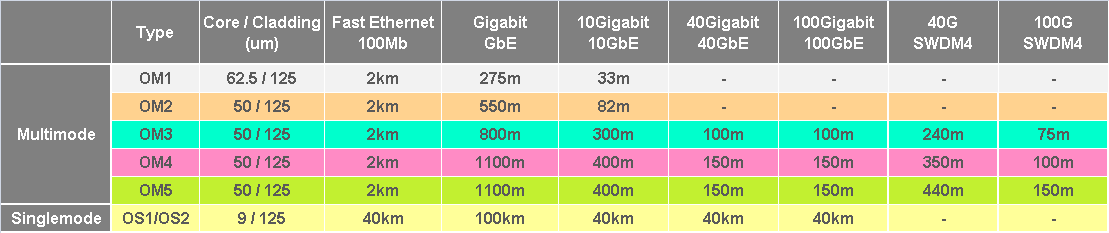

Fiber Optic Cable Transmission DistancesIndoor Fiber Optic Cables TypeDram for indoor Fiber Optic cable light weight cables 2KmDram for outdoor Fiber optic cable heavy weight cables 2KmCable Dram Information and marking
