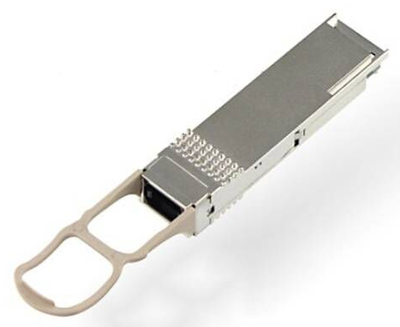

Cisco QSFP-40GE-LR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km DOM Transceiver
Product Details
Cisco Genuine QSFP-40GE-LR4 Vendor Name Fiberstore Form Type QSFP+ Max Data Rate 41.25Gbps Wavelength 1310nm Max Cable Distance 10km Interface LC duplex Optical Components DFB CWDM Cable Type SMF DOM Support Yes TX Power -7-2.3dBm Receiver Sensitivity Commercial Temperature Range 0 to 70°C (32 to 158°F) sfiberoptic QSFP+ (Quad Small Form-factor Pluggable Plus) is a new Multi-Source Agreement (MSA) for high speed application, such as 40G-BASE, which provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of 40Gbps.
The 40Gbps QSFP+ transceiver is well suited for Infiniband and 40GBASE-SR4 / 40GBASE-LR4 applications. It combines the higher density attractions of parallel modules with some of the key advantages normally associated with SFP+ based modules. It is intended for use short reach applications in switches, routers and data center equipment where it provides higher density and lower cost when compared with standard SFP+ modules.
QSFP SR4 / QSFP+ SR4 / QSFP 40G SR4 It is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 8 or 12 fiber MTP (MPO) connector.
QSFP LR4 / QSFP+ LR4 / QSFP 40G LR4 It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 10km.
QSFP LR4 / QSFP+ LR4 / QSFP 40G LR4 It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 20km. QSFP ER4 / QSFP+ ER4 / QSFP 40G ER4 It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 40km.
Application:
High-speed interconnects within and between switches, routers and transport equipment
Server-Server Clusters, Super-computing interconnections
Proprietary backplanes
Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
40GBASE-LR4 Ethernet links
10GBASE-SR applications
40GBASE-SR4 applications
40GBASE-ER4 Ethernet links
InfiniBand SDR, DDR and QDR applications
Features:QSFP+ MSA, SFF-8436 compatible
Four independently addressable transmit and receive channels
Highly compact: savings of 60% on edge and board usage compared to four comparable SFP+ modules
Electrically hot-pluggable
XFP-like latch mechanism for ease-of-insertion
Digital Diagnostics Monitoring Interface. allows customer management and monitoring of key modules parameters, analogous to SFP+
Optical connectivity via industry standard MPO/MTP terminated fiber ribbonData Rate
Wavelength
Interface
Temp.
DDMI
40GBASE QSFP+
40Gbps
850nm
MPO/MTP
Standard
YES
40GBASE QSFP+
40Gbpcs
CWDM
LC/LC
Standard
YES
40GBASE QSFP+
40Gbpcs
CWDM
LC/LC
Standard
YES
40GBASE QSFP+
40Gbpcs
CWDM
LC/LC
Standard
YES
QSFP Wiki
The Quad (4-channel) Small Form-factor Pluggable (often abbreviated as QSFP or QSFP+) is a compact, hot-pluggable transceiver used for data communications applications. It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic cable. It is an industry format jointly developed and supported by many network component vendors, supporting data rates from 4×10 Gbit/s. The format specification is evolving to enable higher data rates; as of May 2013, highest supported rate is 4×28 Gbit/s.
The QSFP specification supports Ethernet, Fibre Channel, InfiniBand and SONET/SDH standards with different data rate options. QSFP+ transceivers are designed to support Serial Attached SCSI, 40G Ethernet, QDR (40G) and FDR (56G) Infiniband, and other communications standards. QSFP modules increase the port-density by 3x-4x compared to SFP+ modules.
QSFP has 38 pins with 4 high-speed TX pairs (CML-I) and 4 high-speed RX pairs.
SFF Committee (May 10, 2013). “SFF Committee Specification SFF-8635 for QSFP+ 10 Gb/s 4X Pluggable Transceiver Solution (QSFP10)”
SFF Committee (May 10, 2013). “SFF Committee Specification SFF-8665 for QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28)”
INF-8438i Specification for QSFP (Quad Small Formfactor Pluggable) Transceiver Rev 1.0 November 2006
SFF-8436 Specification for QSFP+ 10 Gbs 4X PLUGGABLE TRANSCEIVER Rev 4.8 October 31, 2013
