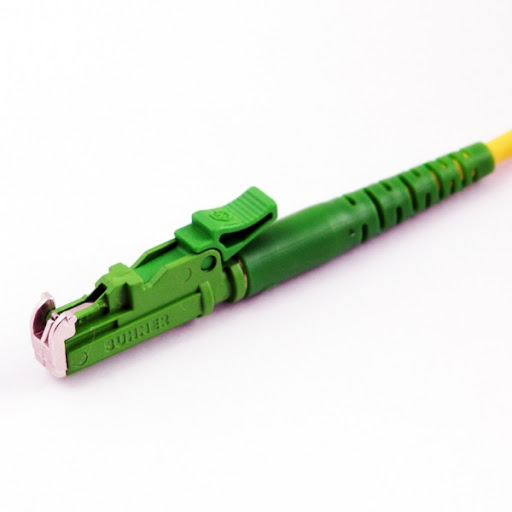

E2000 Fiber Optic Connector

E2000 fiber optic connector Kit and E2000 products are more and more used in the communication filed because its good performance. E2000 is a trademark of Diamond company and E2000 series include a wide range of different styles. Although E2000 is rather expensive than most of the other types fiber connectors, it indeed incorporate much innovative technology to improve the products performance, one of them is the E2000 featured Spring-loaded protective cap which provide increased safety protection.

E2000 fiber optic connectors and related products include both single mode and multimode types. There are single mode E2000 UPC connector, single mode E2000 APC connector and multimode E2000 UPC connectors, and there are adapters to use with them accordingly. E2000 products include simplex and duplex versions.

E2000 Fiber Optic Connectors Type

The E-2000 Connector Series is one of the few fiber optic connectors featuring a spring-loaded shutter which fully protects the ferrule from dust and scratches. The shutter closes automatically when the connector is disengaged, locking out impurities which could later lead to network failure, and locking in potentially harmful laser beams.

The connector is easy to install, with a push-pull latching mechanism which clicks when fully inserted. The E-2000 Standard Connector is available for Singlemode and Multimode applications with Physical Contact (PC) end face. Angled Physical Contact (APC) 8° polish is also available. The series is compliant with European (EN 186270) and International (IEC 61754-15) standards.

E2000 fiber connector and related products comply with IEC 61 754-15 and TIA/EIA 604-16. We supply the E2000 connector, adapter and cable assemblies.

Applications

• WANs, LANs, CATV
• Metrology, Railway, Industry

Features

• Secure transmission of high bit-rate protocols
• Zirconia ceramic ferrule fully protected by spring
  loaded shutter
• Push-pull locking mechanism for easy installation
• Color coded release levers
• Compliant with European (EN 186270) and International (IEC 61754-15) standards

E2000 Fiber Optic Connectors Dust proof and scratch resistant

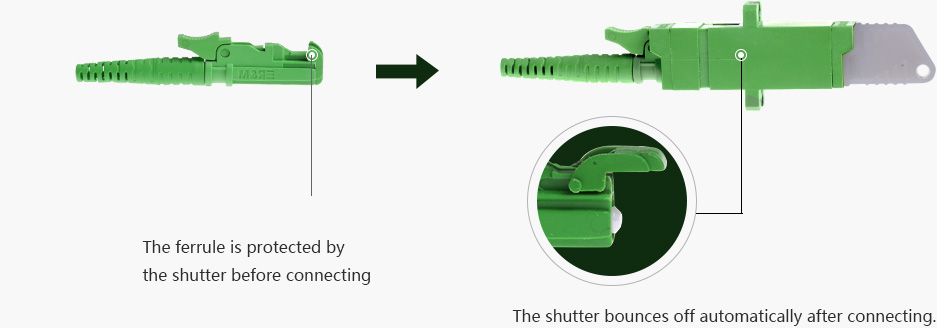

The E2000 optical fiber connector comes with a spring louver to protect the ferrule from external contaminants. And effectively prevent laser radiation from causing harm to the human body.

E2000 Fiber Optic Connectors Dust proof and scratch resistant

E2000 Fiber Optic Connectors Firmly Joint and Easy to Install

The E2000 connector adopts push-pull locking, which is easy to operate and quick to install.

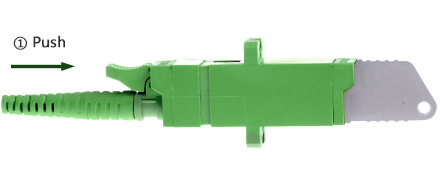

Connection

E2000 Fiber Optic Connectors Firmly Joint and Easy to Install

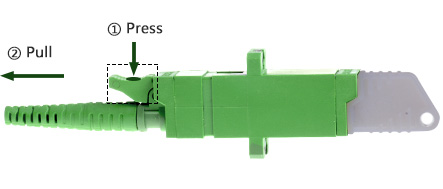

Unlock

E2000 Fiber Optic Connectors Firmly Joint and Easy to Install

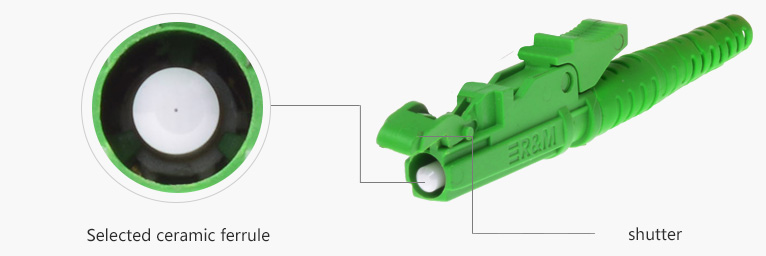

High quality ferrules

Selected ceramic ferrule, professional grinding technology, precise docking of fiber end face; lower insertion loss ≤0.15dB, making transmission more stable and connection more efficient.

E2000 Fiber Optic Connectors Ferrule

Stable parameter performance

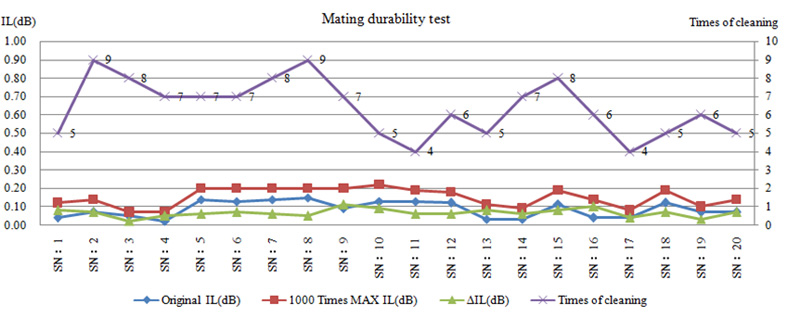

The E2000 fiber optic connector meets the working environment of -40-85 °C, with an average of more than 500-1000 insertion and removal tests, with stable performance and reliable quality.

Operating temperature：-40-85℃

Insert-pull test：500-1000 times

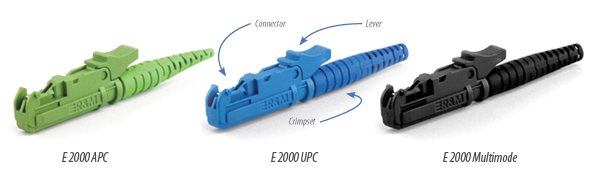

Multiple styles available.

E2000 Optical fiber connector are available in a variety of colors and boots.

SM 3.0mm APC

SM 2.0mm APC

MM 3.0mm PC

MM 2.0mm PC

SM 3.0mm PC

Compliance with international standards

The E2000 Optical fiber connector can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC61754-15, IEC 61753-1 and other standards.

Item	E2000 Optical Fiber Connector
Mode	SM			MM
Suitable fiber	9/125um			50/125um,62.5/125um
Ceramic ferrule spec	125.0-125.5um			126-129um
Ceramic ferrule concentricity	≤1.0um	≤0.5um	≤0.3um	≤3.0um
Insertion loss	≤0.30dB	≤0.20dB	≤0.15dB	≤0.30dB
Return loss	≥50dB(UPC)， ≥60dB(APC)			≥30dB
Insert-pull test	＞500 times，＜0.3dB
Operating temperature	-40℃-+85℃
