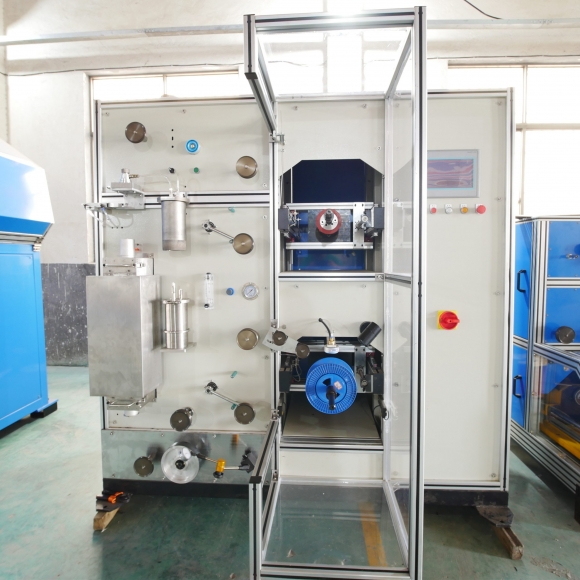

Fiber Coloring And Rewinding Machine

Fiber coloring rewinding machine is mainly used for full color chromatography coloring of SM and MM fibers, which is convenient for identification of multiple fibers in the PBT fiber tube or micron cables. At the same time, the device can also be used for rewinding segmentation of optical fibers.

With the rapid development of optical communication technology, the amount of fiber optic cables used in optical communication systems has also increased rapidly. After drawing the optical fiber, in order to facilitate the identification of multiple optical fibers in the beam tube during subsequent processing and use, the method of coloring on the surface of the optical fiber is generally used. The fiber coloring and rewinding line is a production device that colors the surface of the optical fiber. It can also be used for fiber rewinding.
We have many years of experience in research and development and manufacturing of optical fiber and cable production equipment. The optical fiber coloring and rewinding machine provided by us uses the internationally advanced Japanese Panasonic AC servo drive system, with the advantages of high control accuracy, low noise, high efficiency and reliable operation; And adopt the programmable controller of German Siemens company to control it centrally, so that the control of the whole electric control system is more stable and more reliable. The touch screen adopts a set of control technology, man-machine interface technology, graphics technology, database technology, and network technology, including dynamic display, alarm, trend, control strategy, control network communication and other components, providing a friendly user interface to make the device more intuitive and easier. At the same time, it has the functions of automatic alarm and shutdown when all parts of the pay-off, tension control, UV curing furnace, and take-up and traverser fail, and the speed-up and speed-down procedures ensure that all motors operate strictly in proportion to ensure stable and reliable operation of the entire system without damaging the optical fiber.
We can provide LT05 and LT07 and other models of fiber coloring rewinding machines. Among them, LT07 can be made into single-line or double-line structure according to customer requirements. When the double-line structure is adopted, the coloring and rewinding of two optical fibers can be performed simultaneously, and the production efficiency is twice that of the single-line structure.

This device CE certificate is available.

Features:

Famous international brand UV curing oven is used to effectively improve the curing effect of bare optical fiber coloring. The equipment is controlled by Siemens 300 series PLC, with high automation and can operate multiple devices by one person.

1,Equipment application :

The optical fiber coloring and rewinding machine mainly applied for coloring the surface of optic fibers,convenient to identify the multi-fibers within the loose tube.Also can be used to rewind fibers and coat the nylon-tighted fibers with the silicone gel .

a,main function :coloring the surface of optic fibers

b,auxiliary function:rewiding the optic fiber

c, the machine use PLC control system,main electric parts are importing,

d, high production efficiency, convenient operation.

3,Equipment application:

4,Main parts brand:

Motor: Siemens motor

Transducer: American Emerson transducer

PLC:Siemens S7 series

Temperature controller:FOTEK temperature controller PID smart type

Screw and barrel: Designed by Taiwan LIQI company, Produced by Zhejiang Honghu company

Bearing: Japan NSK

electrical parts: adopt OMRON,FOTEK,SHILIN brands, etc.

Technical Parameters

1. Structure speed: 1800m/min.

2. take-up tension; 0.3N-1.2N.

3. take-up /pay-off reel sizes: 235mm * 155mm * 25.4mm (outer diameter * inner diameter * shaft hole).

265mm*165mm*25.4mm (outer diameter * inner diameter * shaft hole).

5. additional loss: ≤ 0.02db / km (sm fiber).

6. equipment size: 2.1m * 1.5m * 1.9m (L * W * H).

7. power supply requirements: -AC380V ±10% 50HZ three-phase five-wire.

8. the total power supply: ≈ 13KW.

9. Normal running power is about 6KW/h.

10. Coloring capacity is about 90KM/h.
