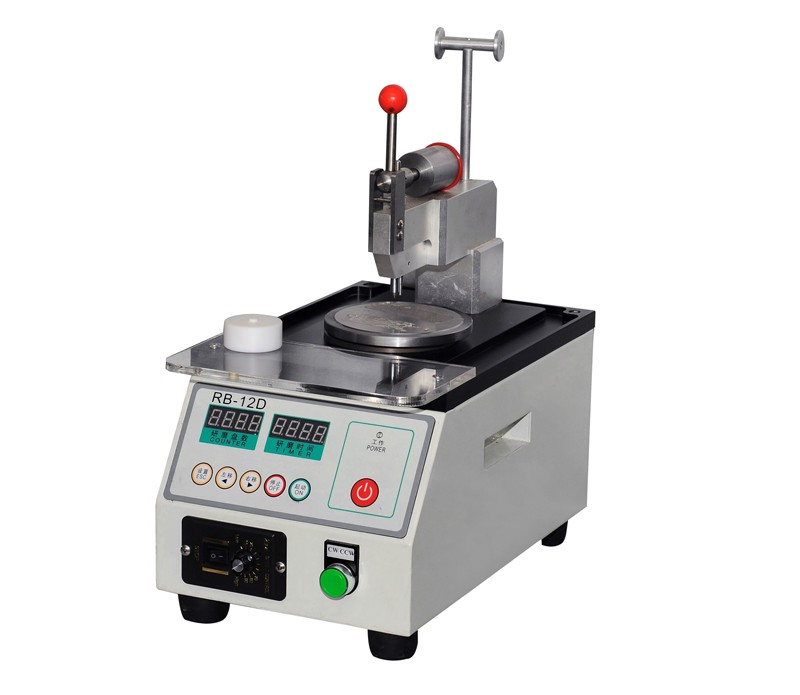

What is Fiber optic Connector polish grinding Machine Central pressure
Fiber optic Connector polish grinding Machine Central pressure Type 12-D Polish various types of standard fiber optic connectors as: FC/UPC,SC/UPC,ST/UPC,LC/UPC,MU/UPC, FC/APC,SC/APC,MTRJ,E2000 etc..high-performance polish machine offers superior quality and maximum capacity through put at a very affordable price. With high speed rotation & revolution method, this Square Pressure Fibre Optic Polishing Machine can polish 18-40 standard fibre optic connector at one time. The square is pressurized by the spring, making the operation simple with high flexibility.
Main features:
- Purified water and polish fluid can be used to save cost for consumable material.
- Fixed torque of adjustable motor will not be changed by varied speed, it will also
- reduce polish variance.
- Unique design for electrical, air and water were separated inside of cabinet,
- to secure safety during operation Fiber optic Connector polish grinding Machine.
- Module type of electrical control is easy for maintenance.
- Based on the polishing process, moving the weight to proper loading position.
- Anti-vibration pad is adjustable to certain height.

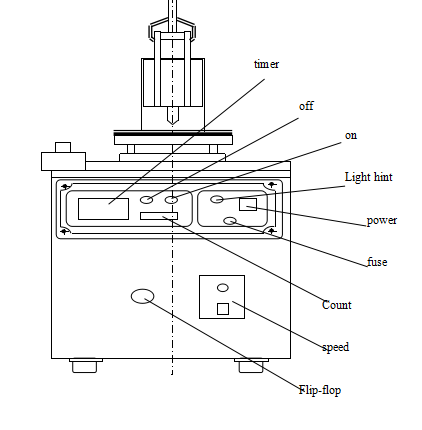

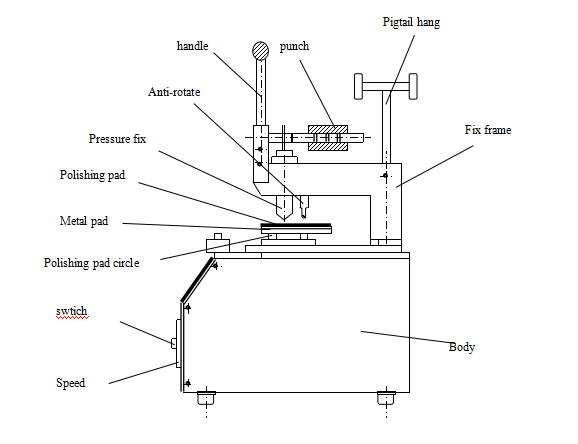

Fiber optic Connector polish grinding Machine Central pressure
Fiber optic Connector polish grinding Machine Central pressure| Product Details | |||
| Part Number | Pressure Type | central pressure | |
| Polishing Capacity | 12pcs/16pcs/18pcs/20pcs ferrule | Machine Size([L] x [W] x [H]) | 390mmx240mmx5800mm |
| O.D. of Rotation Plate | 127mm(5inch) | Speed for Rotation Plate | 0-250 rpm |
| Time Settings | 99 min 99 sec (Max) | Return Loss | ≥50 dB |
| Power Input | 220-230 VAC 50Hz/60Hz | Work Temperature | 10 - 40 Celsius Degrees |
| Electric Power | 115 W | Net Weight | 28KG |
| nosiy without load | ＜50db | polishing driven | Annoy double motors gear driving |
| polishing jumping | ±0.005mm | control method | button press |
Specification:
- Machine size 220W x 420L x 500H mm
- Net weight 26 KG
- Power AC 110/220V , 50/60 Hz , 85W
- Consumption air 3 kgf/cm2
- Polish disc O.D. 112 mm
- Polish speed 30–300 RPM
- Time setting 999.9 Sec. (Max.)
Note: Rubber pad, polishing fixture and polishing film need to be purchased separately.
Fiber polish Machine 24-550D
