Basic Information
This mini Fiber Optic Socket Panel fiber optic termination box is used for splicing and termination between indoor fiber optic cable and pigtails with SC or LC duplex type. The termination box is used for wall mounted or desktop applications. Made of the plastic material, is easy to install in home or office. Outlets are designed to fit SC fiber optic cable patch cord adapter, used in work location subsystem.
Specification
| Suitable Adapters | SC LC |
| Material | With fire-proof ABS plastic |
| Weight | 40g |
| Available Cable | Indoor Drop Cable |
| Outlet | 2 Port |
| Installation way | Wall Mount |
| Dimensions | 86mm*86mm*22mm |
| Applications | Wall Mount Distribution Use |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 1 pcs SC or 2 pcs LC connectors |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Indoor Cable |
| Location | Wall Mount Usually |
| Location of Use | FTTH FTTB |
| Lock Compatible | Button |
| Number of Terminal Drops | 1 or 2 Cables |
| Number of Trays | No |
| Product Type | Wall Mount Termination Box |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 1 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 100pcs |
Image Details

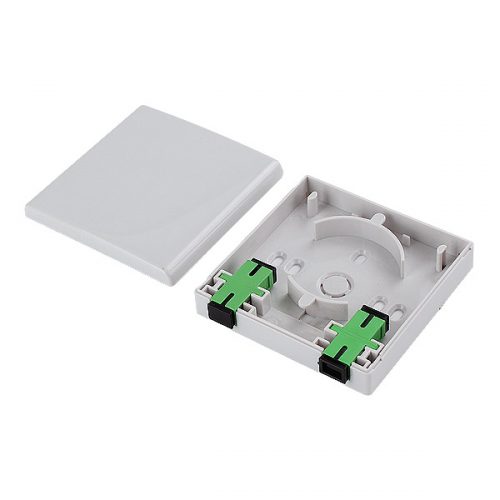

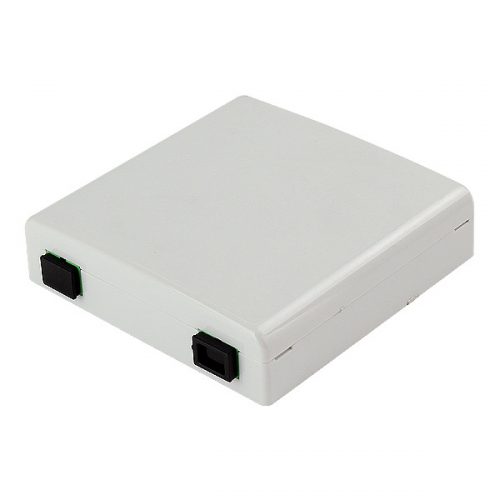

Fiber Optic Socket Panel Wall Outlet Faceplate Mini Fiber Access Termination Box
FAQs
What items are included in this SC LC FC Fiber Wall Outlet Faceplate Socket Panel SP01A
A main parts (cover and base), 2 screws and 2 pcs heat shrinkable sleeves.
What fiber optic pigtails can be installed inside this fiber optic face plate
1pcs 0.9mm or 2.0mm fiber pigtails 0.5m to 1.5m long fiber pigtail is workable.
What fiber optic adapter can be installed inside this fiber optic face plate
usually it is used with SC/UPC or SC/APC fiber adapter
