FULLX CPRI Duplex LC Fiber Ericsson RRU RRH

What FULLX CPRI Optic Patch Cord Duplex LC Fiber Ericsson RRU RRH FTTA Cable

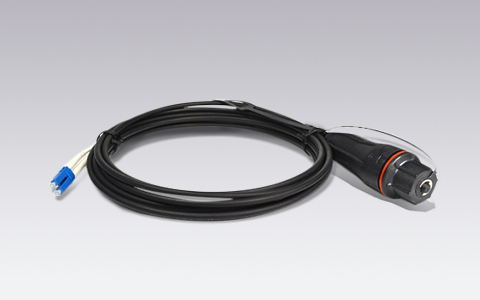

What FULLX CPRI Optic Patch Cord Duplex LC Fiber Ericsson RRU RRH FTTA Cable Optic Patch Cord RPM2534692/5000 with flexible boots is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Especially in the 3G, 4G,5G Base station (BBU to RRU). CPRI fiber patch cable are rapidly becoming the standard connector interface.The bulkhead cutout allows for removal of transceiver through the bulkhead. And the cable is Water proof, dust proof and corrosion resistant.

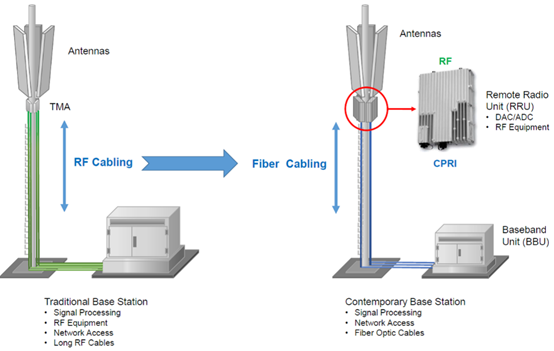

Mobile network operators are required, now more than ever before, to modernize their network infrastructures in order to keep up with continuous high-bandwidth growth. To meet subscriber expectations, many mobile operators are switching from legacy “copper-to-the-antenna” to fiber-to-the-antenna (FTTA) infrastructures. Moreover, to add capacity and coverage for LTE & 5G services, they are deploying distributed antenna system (DAS) networks and small cells. DAS manufacturers are increasingly using the FULLX CPRI Ericsson CPRI protocol as the go-to interface between base stations and DAS head-ends.

FULLX CPRI Ericsson LC fiber optic FTTA outdoor patch cord, compatible with Nokia’s FullAXS-LC waterproof connector for latest and next-generation mobile communication systems(Such as UMTS, GSM, CMDA2000, TD-SCDMA, WiMAX, LTE and so on.) deploy fiber-optic feeders to link the telecom tower base station with the remote unit at the antenna mast.

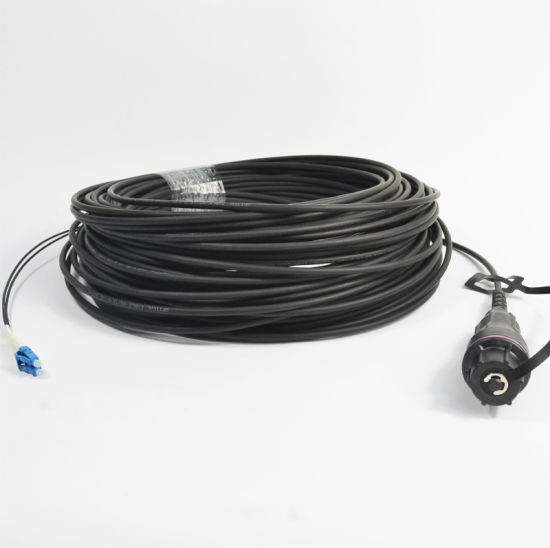

LC/LC FTTA outdoor fiber patch cord FULLX CPRI Ericsson Optic Patch Cord available in 2 core and 4 core combinations can carry control or message signals with minimum loss. FTTA outdoor fiber patch cord is designed for the quick and iterative distributing & retrieving under harsh environment. CPRI LC/LC FTTA cable is can armored with SUS flexible spring tube, portable, flexible, oil-resistant, rubbing-resistant, flame retardant, high tension load and wide operating temperature range. Its applications include quick deployment, military, mining, oil field, TV broadcasting, and communication emergency repair.Ideal for outside cabling application-Armored steel tape for rodent resistance-Pressure resistance-Fully water-blocked-Moisture blocking loose tubes-Fiber 2 core or 4 core
Easy Operation, reliable and cost-effective

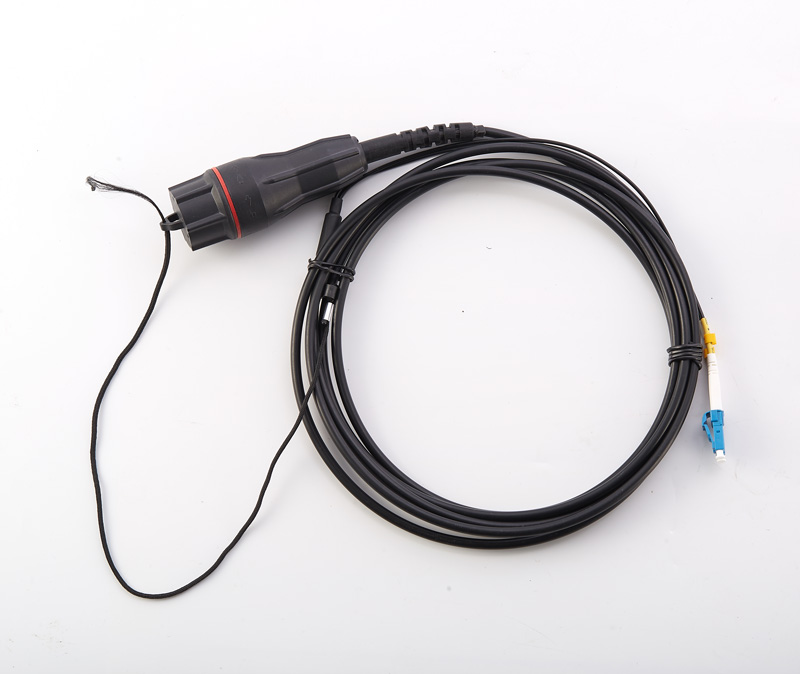

CPRI Cable compatible with FULLX CPRI Ericsson DX LC Connector, CPRI Fiber Cable for Ericsson Base Station

FTTA outdoor patch cord, compatible with Nokia’s FullAXS-LC waterproof connector for latest and next-generation mobile communication systems(Such as UMTS, GSM, CMDA2000, TD-SCDMA, WiMAX, LTE and so on.) deploy fiber-optic feeders to link the telecom tower base station with the remote unit at the antenna mast.

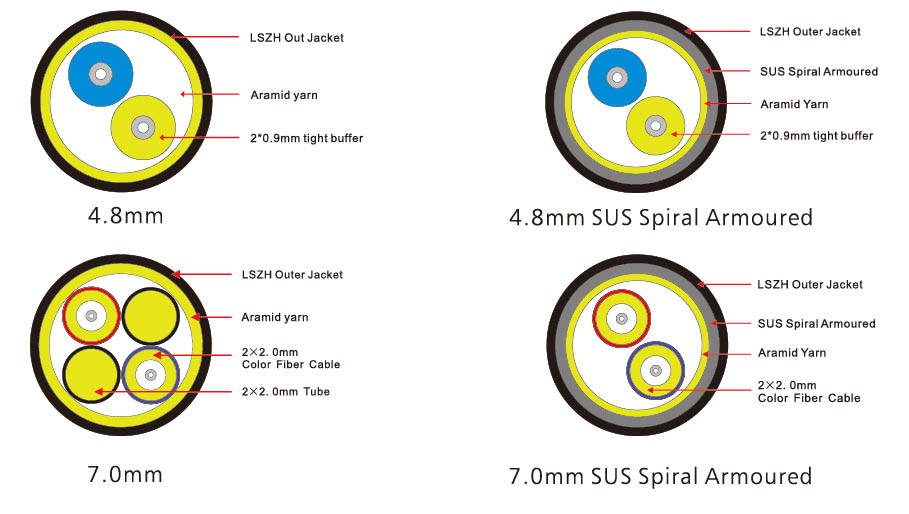

Duplex tight-buffer fiber + central loose tube/ armoured steel tube + kevlar + OD 5.0mm / 7.0mm jacket cable, connected with FULLX CPRI Ericsson LC DX connector.

The Common Public Radio Interface (CPRI) standard

defines an interface between Radio Equipment Control (REC) and Radio Equipment (RE). Oftentimes, CPRI links are used to carry data between cell sites and base stations.The purpose of CPRI is to allow replacement of a copper or coax cable connection between a radio transceiver (used example for mobile-telephone communication and typically located in a tower) and a base station (typically located at the ground nearby), so the connection can be made to a remote and more convenient location.This connection (often referred to as the Fronthaul network) can be a fiber to an installation where multiple remote base stations may be served. This fiber supports multi mode communication and doesn’t support single mode communication. The fiber end is connected with the transceiver device called Small form-factor pluggable transceiver.

The companies working to define the specification include Ericsson AB, Huawei Technologies Co. Ltd, NEC Corporation, Alcatel Lucent and Nokia.

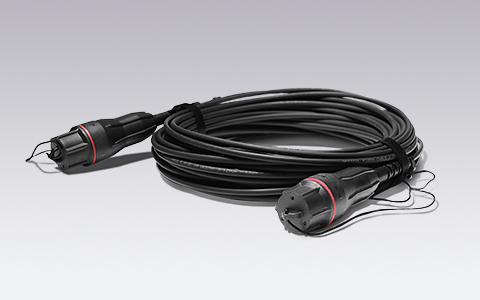

FULLX conector outdoor cable assembly matching Ericsson RRU equipment fullaxs

Product Description

Next generation WiMAX and Long Term Evolution (LTE)Fiber/Power/Signal To The Antenna (x-TTA) connectivitydesigns require rugged cable assemblies for outdoor use.For direct connection, these cable assemblies need to plug directly into the optical transceivers or other connector types though a bulkhead construction.

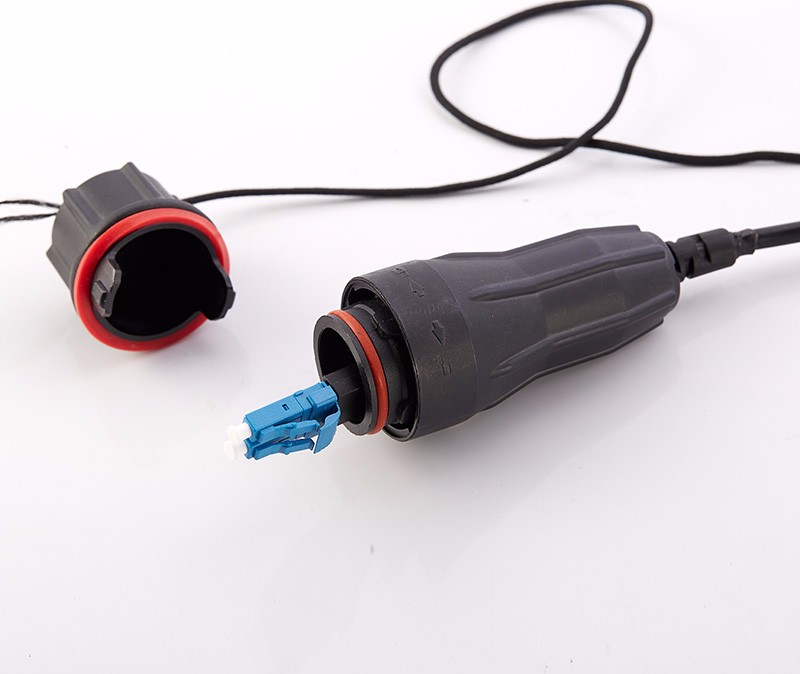

For this specific application, the connector design will need to accommodate for a large tolerance in Z-direction.Furthermore, the connector shell must allow for easy one handed mating. This LC outdoor connector
sealing systems were designed to function with a very large Z-axis tolerance, hence accommodating for the
broadest range of transceivers on the market. This unique feature allows end users to pick almost any transceiver they wish.

Application

WiMAX and LTE Base Stations
Remote Radio Heads (RRH) RRU
Industrial outdoor applications
Robotics
Aerospace & Defense

Mechanical

Designed to meet 150 N cable retention
Designed to meet IP67
LC interface

Single- and Multimode
Adapter footprint : 36mm x 36mm
Bayonet style locking
Duplex LC interconnect MM or SM
No tools required
Operating temperature : -40oC to +70oC
Mating durability min : 100 cycles.

Key Features
Open bulkhead for easy access to SFP
Positive mechanical feedback to operator when fully mated
One-hand mating
Duplex LC interface
Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Multimode and single mode

Water proof, dust proof and corrosion resistant.
Expansion to RJ45 and Power possible
Plug has tolerance free design,fully free floating on Z-axis
No cable buckling during or after installation.
Cost effective metal die cast bulkhead
Field installable version available

FTTA & FTTH Base station, BTS installation, BBU to RRU Indoor/outdoor building cabling – Harsh environments application – Long haul networking -Direct burial and aerial lashing
