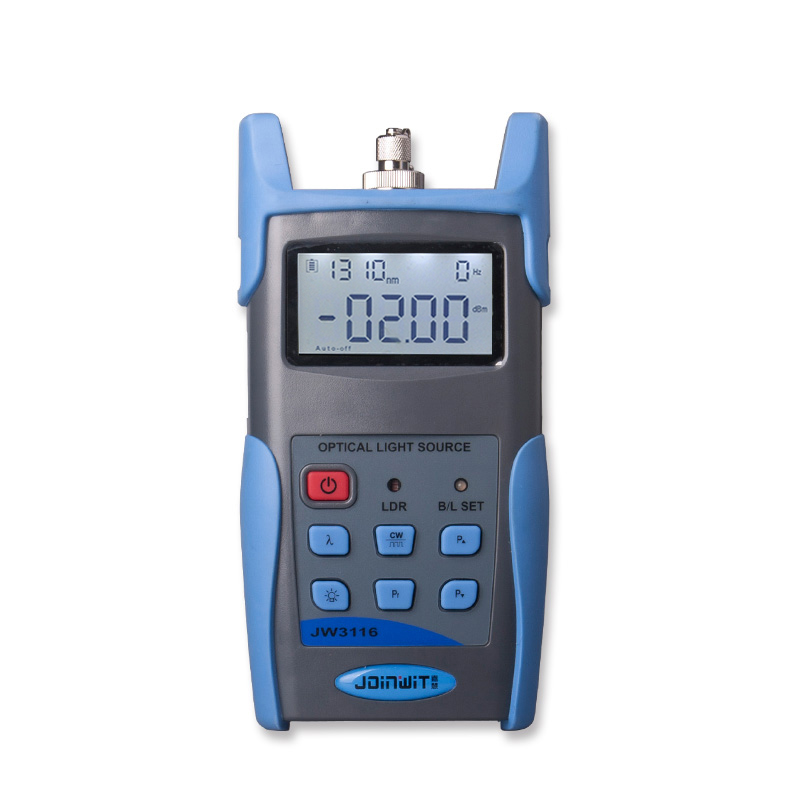

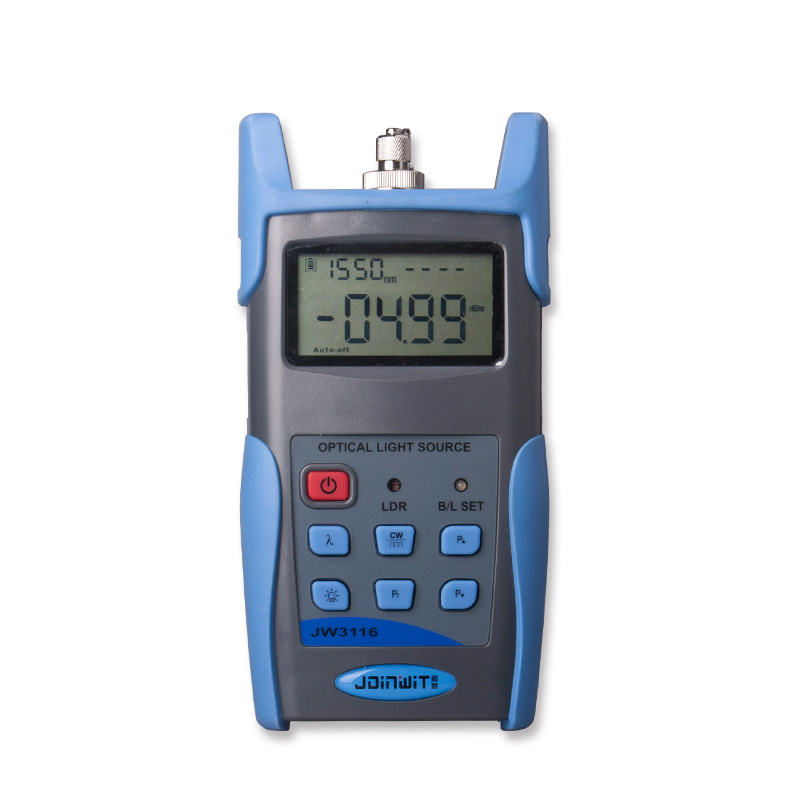

What Is JW3116 Handheld Optical Light Source price and specification
Features
- Wave ID information can be transmitted when used with JW3216 Optical Power Meter.
- Tone generation, 270HZ,330HZ,1KHZ,2KHZ
- Output power can be adjustable
- Output power value is shown on LCD display
- Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
- AA alkaline and AC adapter for power supply
- Low battery indication
Specifications
Model | JW3116 |
Operating | 1310/1550;1310/1490/1550/1625（others specify on requests） |
Applicable | SM，MM |
Laser | FP-LD(others |
Output | -5--12dBm （can be adjustable） |
Adjustable | ＜0.5 |
Stability(dB，30min，20℃) | 0.15 |
Modulation（Hz） | CW， 270，330，1K，2K |
Fiber | FC/PC |
Alkaline | 3*AA，1.5V |
Power | 8.4 |
Battery | 45 |
Operation | -10-+60 |
Storage | -25-+70 |
Dimension | 23.5*16*8cm |
weight | 0.7kg |
