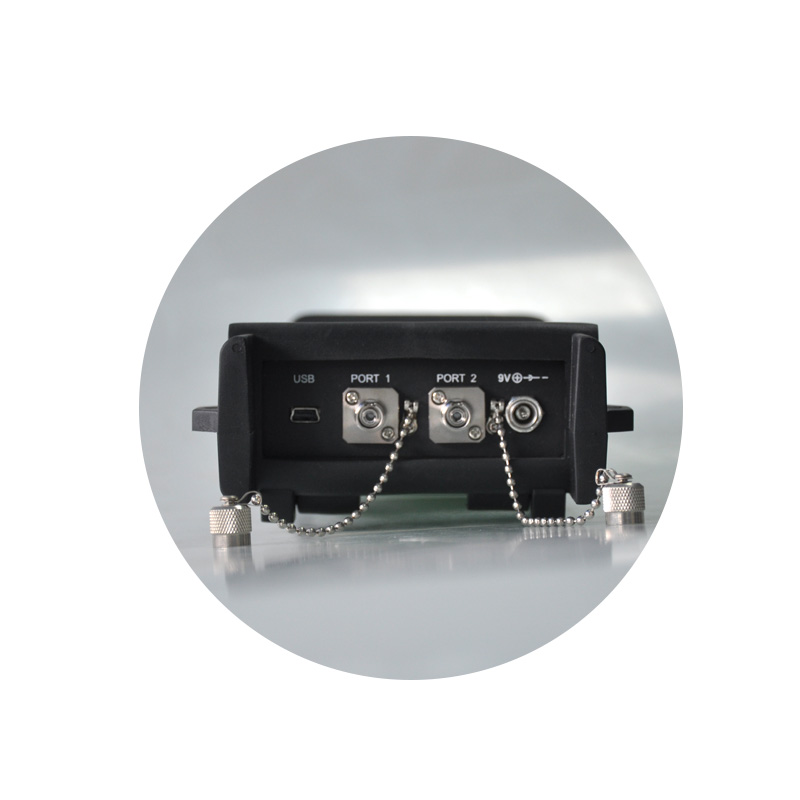

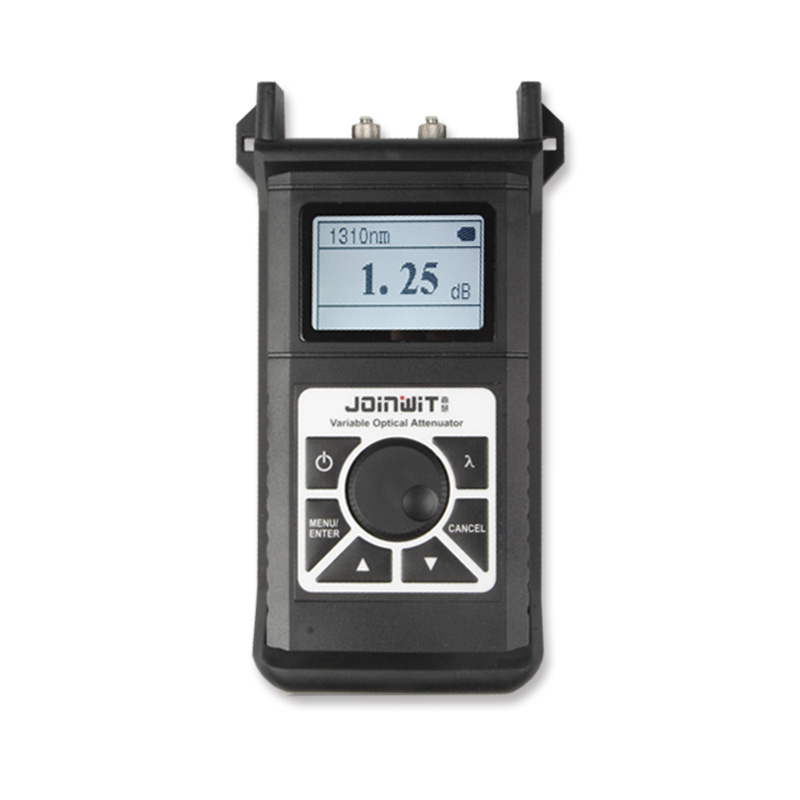

What Is JW3303 Optical Variable Attenuator price and specification
Features
- Stepwise attenuating by circumgyrated dial: attenuating step 0.05dB
- Provide with the function of displaying dB and dBm attenuating value
- 10 minutes Auto-off function can be activate and deactivate with keypad operation.
- After off the instruments, the system will have the memorizing of the attenuating value and the attenuating step, in order to restore the system back to the previous shut down state when open the instruments next time
- Portable, rugged, lightweight; Easy to use.
Specifications
Type | JW3303 |
Attenuating wavelength Range | 1260-1650nm |
Fiber Model | 9/125um SM |
Optical Connector | FC/PC |
Calibrated wavelengths | 1310/1490/1550/1625nm |
Measurement Range | 2-60dB |
Resolution | 0.05dB |
Minimize Insertion Loss | ＜2.0dB |
Linearity | ±0.5dB |
Repeating | ±0.2dB |
Attenuating Accuracy | ±0.8dB |
Return Loss at Input/ Output | ＞35dB（typical |
Max input | ＋20dBm |
Displaying type | lattice 128*64 black and white, white back |
Rechargeable batteries | 8.4V |
Power supply adaptor | 8.4V |
Operation temperature | 0-40℃ |
Operation Time | 40 hours |
Storage temperature | -10-60℃ |
humidity | 0-85%（non- |
Dimensions | 26*15.5*11.5cm |
Weight | 1kg |
