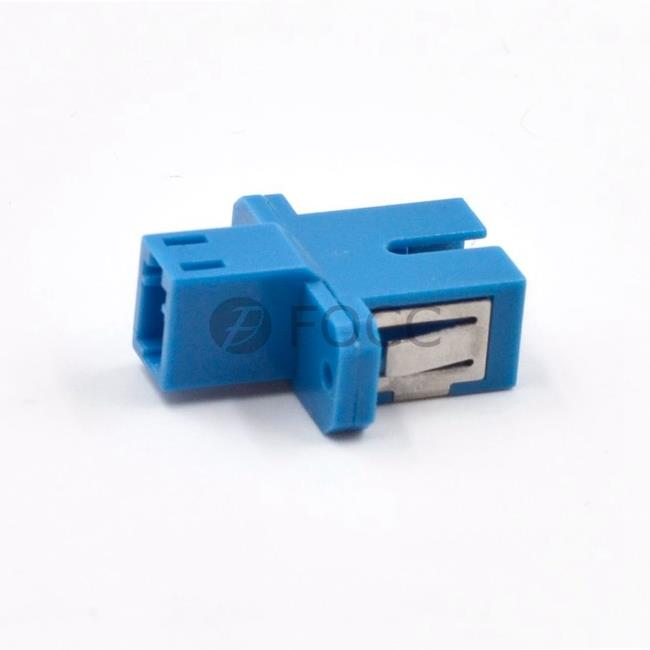

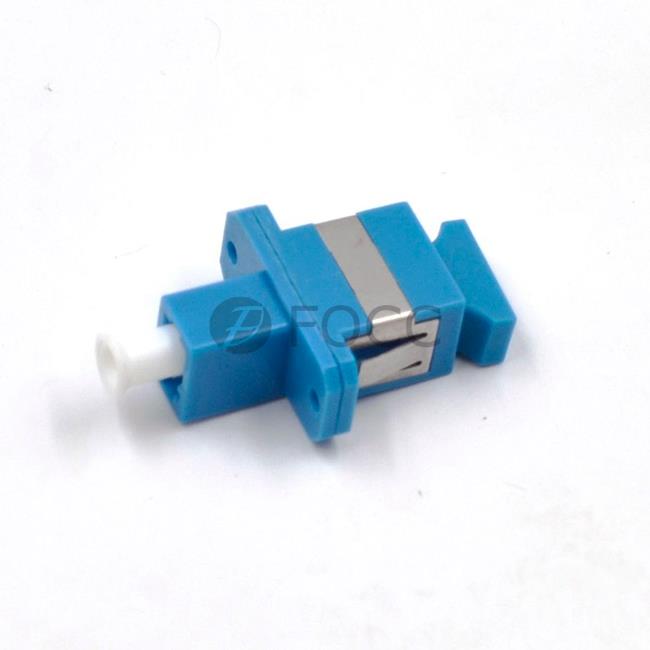

LC-SC Hybrid Simplex Plastic Fiber Optic Adapter Female to Female

LC-SC Hybrid Simplex Plastic Fiber Optic Adapter,

LC to SC Hybrid Simplex Fiber Optic Adapter is a fiber optical passive device designed for connection between two connectors.lc sc adapter,lc sc adapter price,sc lc adapter male female,lc-sc hybrid adapter,fiber optic lc-sc adapter,fibre lc to sc adapter

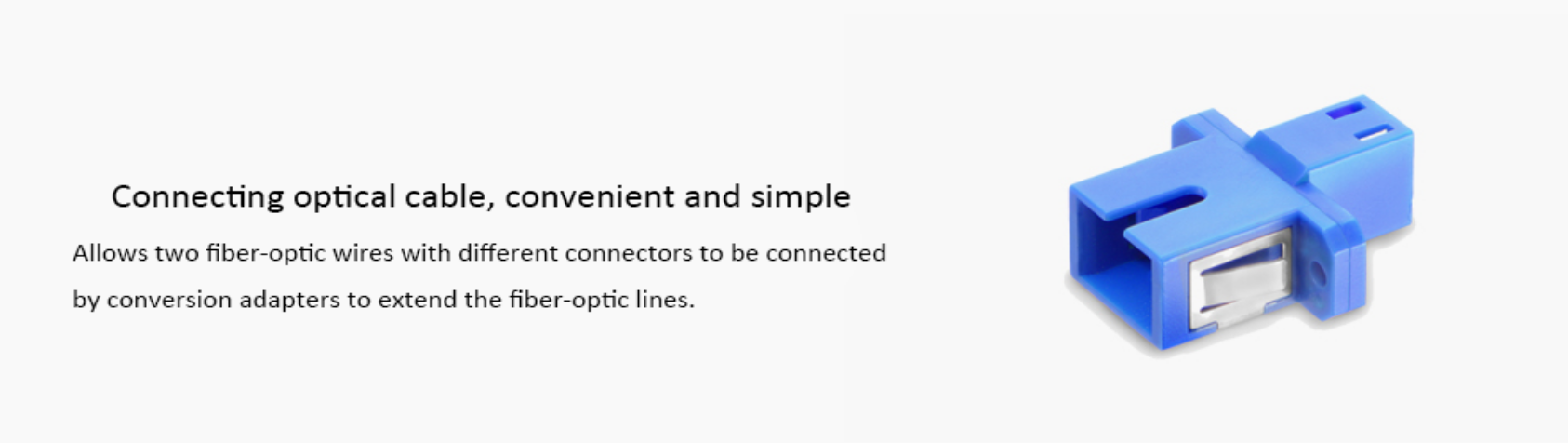

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

LC-SC Hybrid Singlemode or Multimode Simplex Fiber Adapter

The LC-SC Hybrid Adapter is specially designed to incorporate the Small Form Factor LC into an SC configured environment.

The compact design enables network operators to reduce cost via space-savings, and by

eliminating hybrid cable assemblies.

A high-precision sleeve ensures the reliable mating of the SC and FC ferrules, resolving the

problem of incompatibility due to the difference in ferrule diameter.

The result is a high performance hybrid adapter with low insertion and return loss.

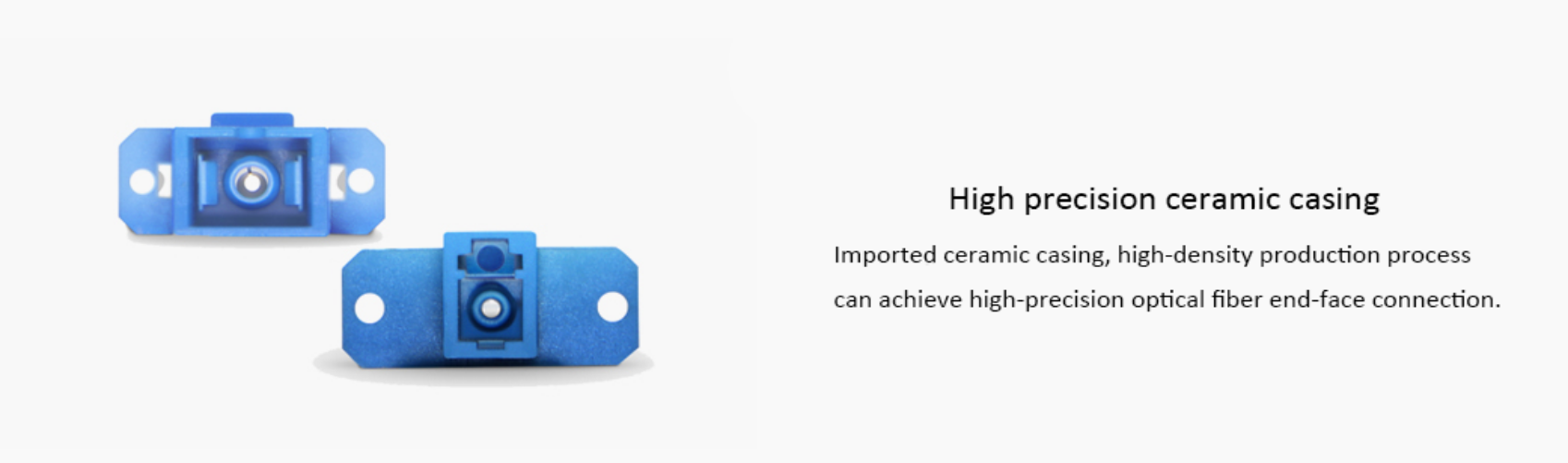

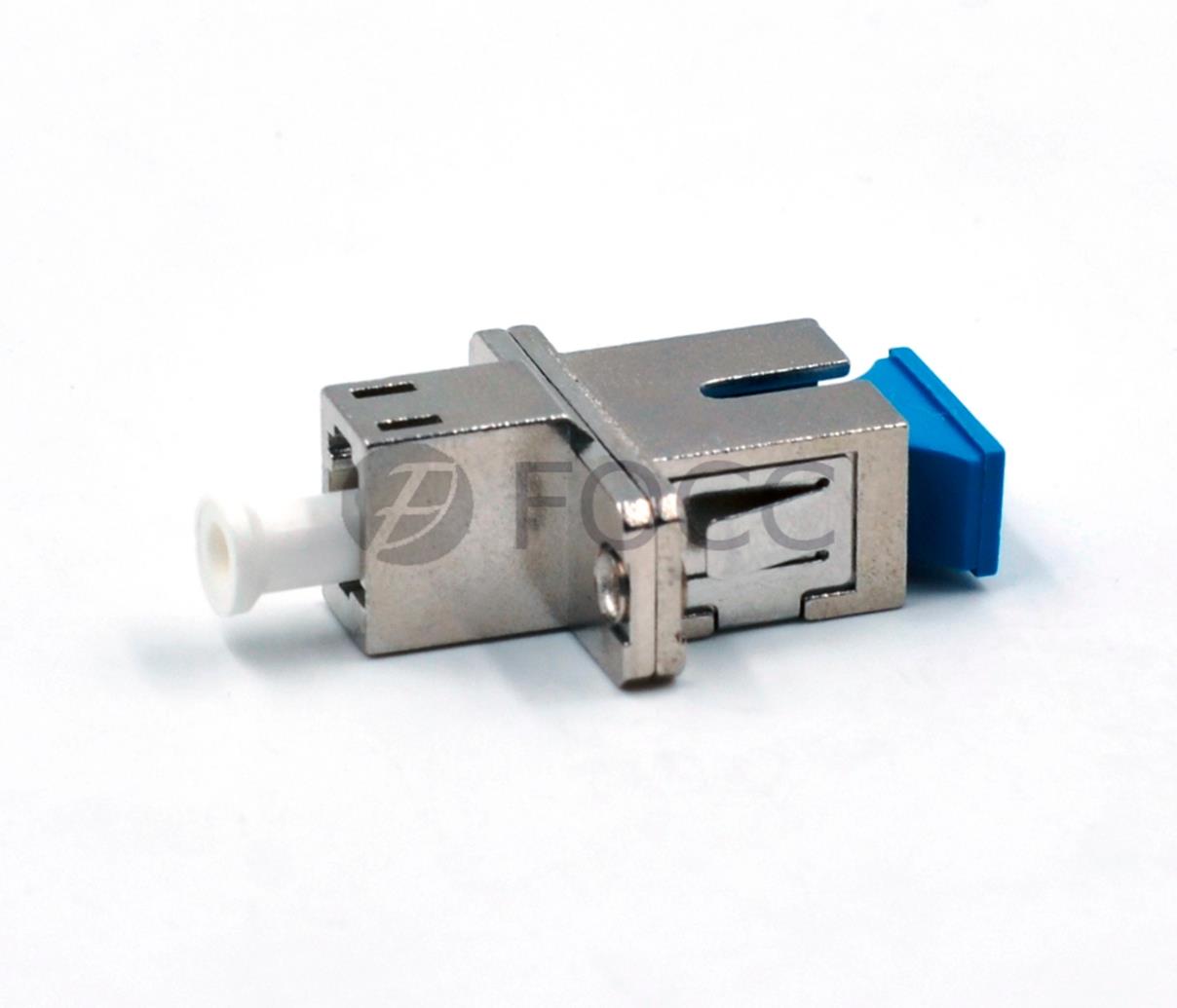

SC(f) to LC(f) hybrid Simplex (female/female) fiber optic adapter using a polymer/metal enclosed assembly to house the precision ceramic (zirconia) alignment sleeve. Designed and engineered to perform over long periods of time while maintaining very low insertion loss. LC female to SC female adapter for Simplex fiber optic cable applications. Use this hybrid adapter on your SC configured environments to accommodate LC configured applications. The precision crafted sleeve ensures a reliable connection of the SC and small form factor LC ferrules, with a 0.2dB max increase after 500 mating durability measurement.

This fiber optic SC fem/LC fem adapter can be used for both Multimode or Singlemode applications making it a superior choice for a smooth transition from SC to LC network configurations. See more adapter details and features below:

– Durable construction for a long life.
– Hybrid adapter accommodates both Multimode and Single mode.
– Insertion loss: <0.2dB – Durability (500 mating): 0.2dB max increase.
– Withdrawal force (g/f): 100-300
– Operating temperature: -40 – +85℃

Features & Applications

v LC style to SC style.

v Use in Singlemode or Multimode applications.

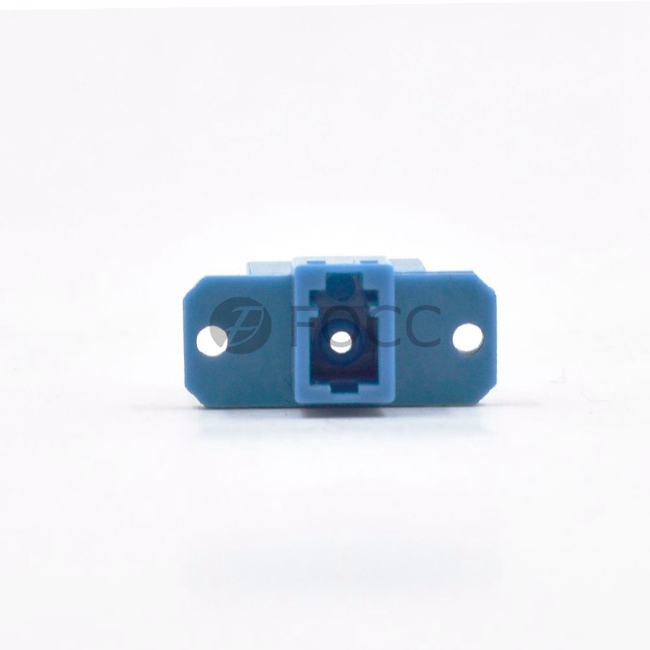

v Free-hanging or panel-mount design.

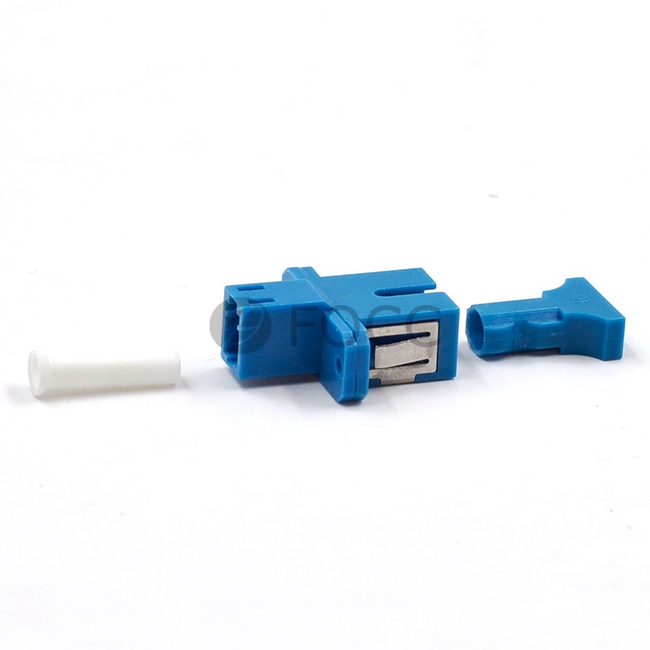

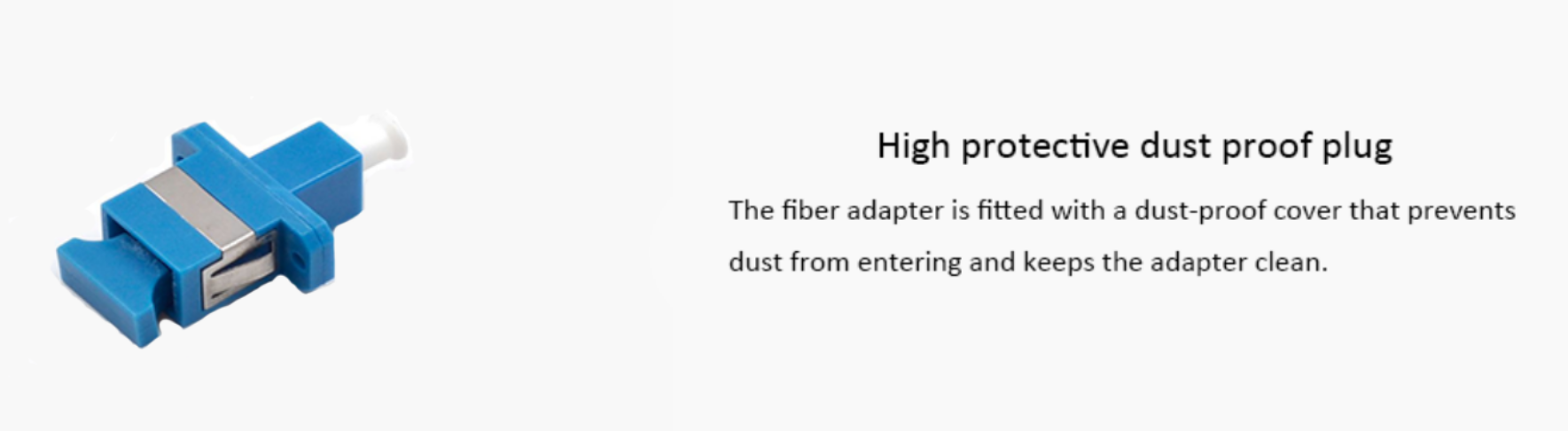

v Dust caps protect against debris and contamination

v RoHS Compliant

v Cable to equipment fiber optic connection

v A cable to cable fiber optic connection

Technical specification

Product details

v Low insertion loss and excellent durability

v Good repeatability and variability

v Excellent temperature stability

Adapters close the gap between optical fiber connectors

Widely used in optical fiber communication systems, cable television networks, local area networks and wide area networks, fiber access networks and video transmission.
