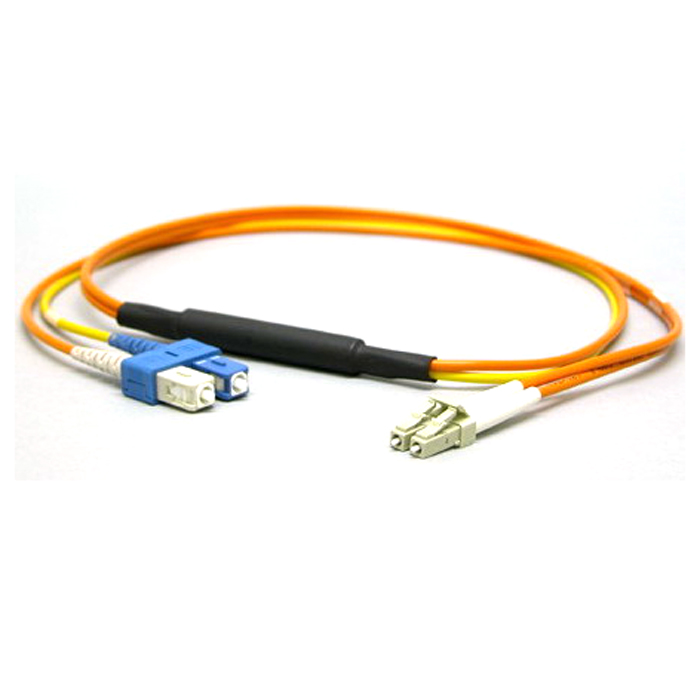

LC/UPC-SC/UPC Fiber Optical Mode Condition Patch Cables

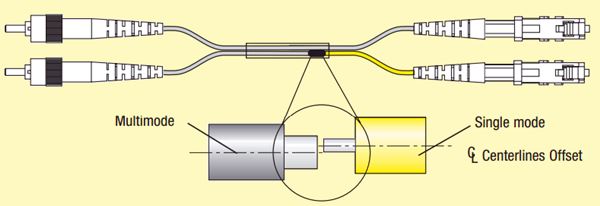

LC/UPC–SC/UPC Fiber Optical Mode Condition Patch Cables A mode conditioning patch cord is a duplex multimode cord that has a small length of single-mode fiber at the start of the transmission length. The basic principle behind the cord is that you launch your laser into the small section of single-mode fiber, then the other end of the single-mode fiber is coupled to multimode section of the cable with the core offset from the center of the multimode fiber (see diagram below).
Fiber Optic Mode Condition Patch Cables 1Mode conditioning patch cords are usually used in pairs. Which means that you will need a mode conditioning patch cord at each end to connect the equipment to the cable plant. So these patch cords are usually ordered in numbers. You may see someone only order one patch cord, then it is usually because they keep it as a spare.

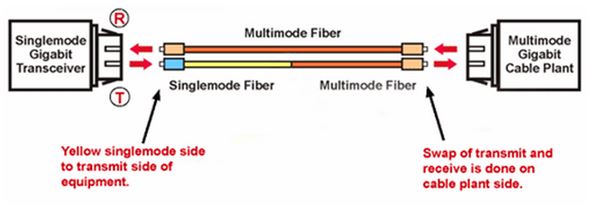

If your 1000BASE-LX transceiver module is equipped with SC or LC connectors, please be sure to connect the yellow leg (single-mode) of the cable to the transmit side, and the orange leg (multimode) to the receive side of the equipment. The swap of transmit and receive can only be done at the cable plant side. See diagram below.
Fiber Optic Mode Condition Patch Cables 2Mode conditioning patch cords can only convert single-mode to multimode. If you want to convert multimode to single-mode, then a media converter will be required.
Besides, mode conditioning patch cables are used in the 1300nm or 1310nm optical wavelength window, and should not be used for 850nm short wavelength window such as 1000Base-SX.
Ordering Information:
| Cable Jacket | Fiber Type | Connectors | Length |
LSZH | Multimode 50/125 | First End: | 1M |
sfiberoptic.Com is one of the largest and best lc/upc-sc/upc fiber optical mode condition patch cables manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized lc/upc-sc/upc fiber optical mode condition patch cables in stock with our factory. Also, free sample is also available if necessary.
Hot Tags: LC/UPC-SC/UPC fiber optical mode condition patch cables manufacturers, suppliers, factory, wholesale, customized, buy, bulk, in stock, free sample, mode condition fiber patch cords>- Customers Reviews
-
