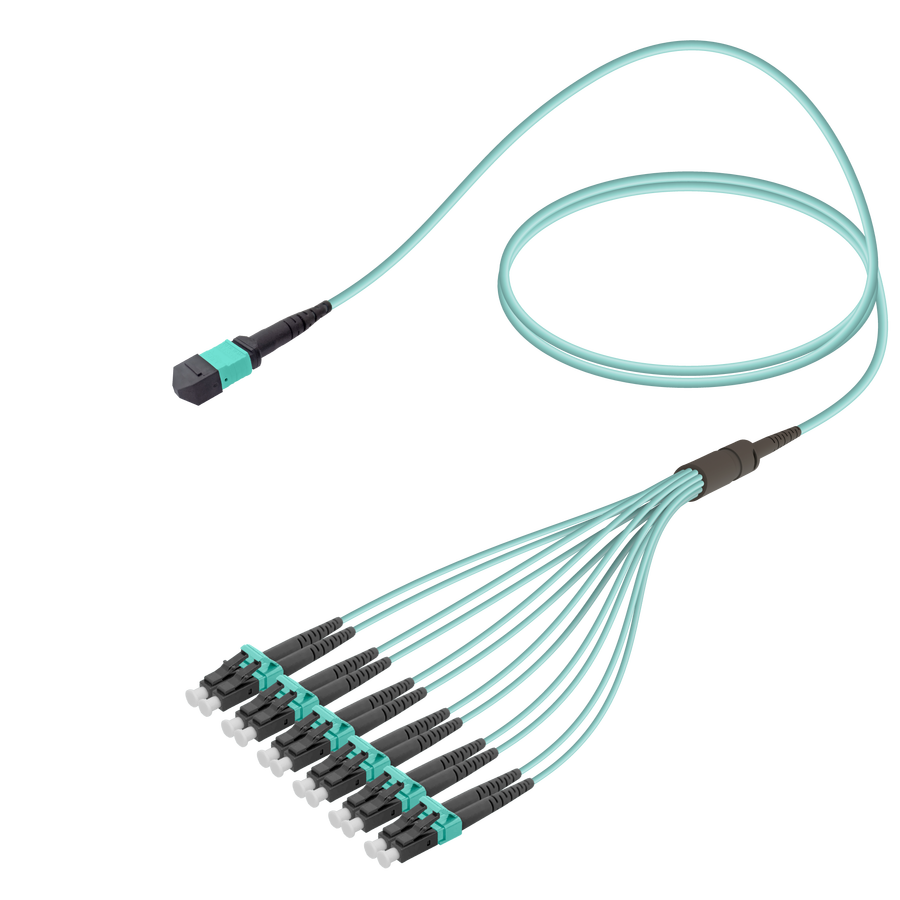

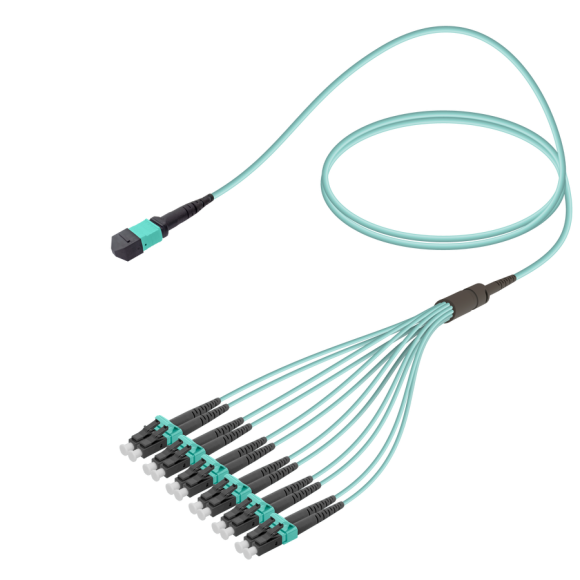

This MTP to LC fanout assembly has one Male Base-12 MTP connector on one side and 6 LC/UPC Duplex connectors on the other, and they are connected by twelve 1.8mm single-mode A2 fiber cords that have 12 fibers with 9um core diameter and 125um cladding diameter, and they are bonded within a 3.0mm main cord.
LC means “Lucent Connector” and it has 1.25mm diameter ceramic ferrule. The APC ferrule means it is polished in an 8° angle for a high precision angled physical contact. The Elite MTP connector is a high performance version of the MPO (Multi-fiber Push On) connector and it is designed for better mechanical and optical performance. MTP connectors can terminate 8, 12 or 24 fibers in a single connector, and provide a great ‘space advantage’ especially in high density data centers. MTP Male connectors have two alignment pins; and MTP Female connectors have two pin slots in response.
Features
- Lower Insertion Loss & Higher Performance
- Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942
- Low IL and stable signal transmission ensuring your network safety
- High-quality MTP connectors and guaranteed by 3D interferometer
- 100% factory tested
Applications
- QSFP to SFP+ Connection
- QSFP+ to SFP+ Connection
- PSM4 to SFP+ Connection
- 40GE to 10GE Interconnection
- 400G to 100G Interconnection
Specifications
| Insertion Loss (IEC 61300-3-4-Method-B) | MTP≤0,35dB (avg: 0,1dB); LC≤0,3dB |
| Return Loss (IEC 61300-3-6-Method-B) | MTP: ≥60dB; LC: UPC≥50dB APC≥60dB |
| Durability | 100 mating cycles |
| Flammability | UL94 V-0 |
| Operating Temperature | -10 C to +70 C |
| Cable Diameter | 3.0 mm |
| MTP Connector Compliance | IEC 61754-7, TIA 604-5, RoHS |
| LC Connector Compliance | IEC 61754-20, TIA 604-10-A, RoHS |
Fiber Structure for Transceiver Modules
| TRANSCEIVER | FORM FACTOR | CONNECTOR | FIBER COUNT | FIBER TYPE | |
| 100G | CFP/CFP2/CPAK | SR10 / XSR10 | 24F MTP (MPO) | 20 | OM3/OM4 |
| SR4 | CPAK | 12F MTP (MPO) | 12 | OM3/OM4 | |
| SR4 / XSR4 | QSFP28 | 12F MTP (MPO) | 8 | OM3/OM4 | |
| PSM4 | QSFP28 | 12F MTP (MPO) | 8 | OS2 | |
| CWDM4 | QSFP28 | LC | 2 | OS2 | |
| LRL4 | CFP2/CPAK/QSFP28 | LC | 2 | OS2 | |
| SWDM4 | QSFP28 | LC | 2 | OM3/OM4 | |
| SR-BD | QSFP28 | LC | 2 | OM3/OM4 | |
| 40G | SR4 | QSFP+ | 12F MTP (MPO) | 8 | OM3/OM4 |
| 40G-C/X/ESR4 | QSFP+ | 12F MTP (MPO) | 8 | OM3/OM4 | |
| BIDI | QSFP+ | LC | 2 | OM3/OM4 | |
| LX4 | QSFP+ | LC | 2 | OM3/OM4 | |
| UNIV | QSFP+ | LC | 2 | OM3/OM4, OS2 | |
| LR4 / LRL4 / IR4 | QSFP+ | LC | 2 | OS2 | |
| SWDM4 | QSFP+ | LC | 2 | OM3/OM4 | |
| PLRL4 / PLR4 | QSFP+ | 12F MTP (MPO) | 8 | OS2 | |
| 4x10G | IR / LR | QSFP+ | 12F MTP (MPO) | 8 | OS2 |
| 10x10G | LR | CPAK | 24F MTP (MPO) | 20 | OS2 |
| 25G | SR | SFP28 | LC | 2 | OM3/OM4 |
| LR | SFP28 | LC | 2 | OM3/OM4 | |
| 10G | SR | SFP+ | LC | 2 | OM3/OM4 |
| LR | SFP+ | LC | 2 | OM3/OM4 | |
| 1G | SX | SFP | LC | 2 | OM3/OM4 |
| LX | SFP | LC | 2 | OS2 | |
