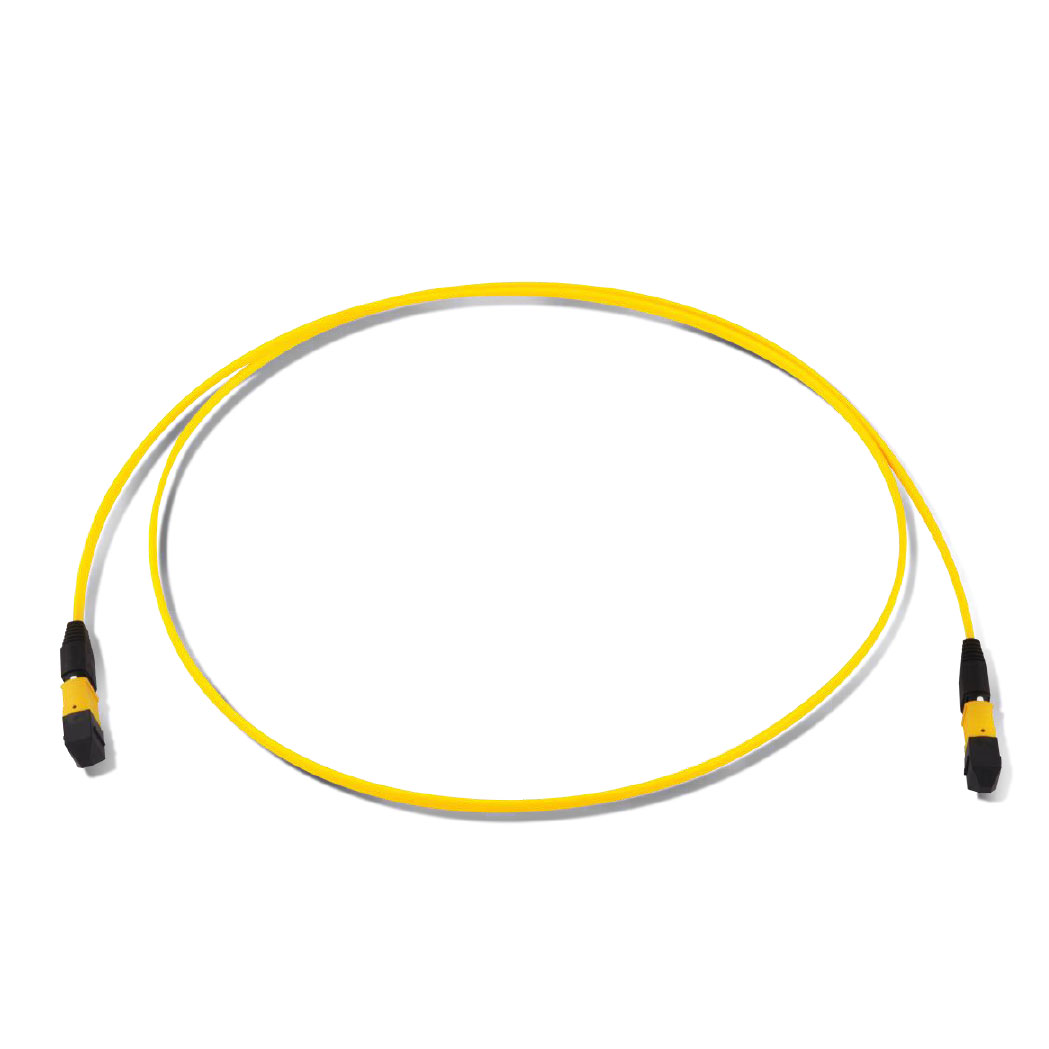

MPO/MTP Trunk Cable 12 Core
MPO/MTP ribbon and trunk mulitecore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cable way use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion low for demanding high speed networks where power budgets are critical.
APPLICATION
- Data communication network
- Optical System Access network
- Storage area networking fiber channel
- High density architectures
FEATURES
- 100% pre-terminated and tested in factory to ensure transfer performance
- Rapid configuration and networking, reduce installation time
- Supports 40G and 100G network applications
- Jacket material: LSZH, OFNR, OFNP available
- Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
PRODUCT PARAMETERS
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.50 | ≥20 | ||||
Note:
1.Test wavelength:[email protected]/1550nm,[email protected]/1300nm;
2.Standard conformance: GR-326,GR-1435.
| Mechanical Properties | |||
| Item | Criteria | Conformance | |
| △IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) | ||
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) | ||
| Environment Conditions | ||
| Item | Criteria | Conformance |
| Operation Temperature | -40-60°C | IEC 61753-1 |
| Storage Temperature | -45-85°C | |
MPO/MTP Trunk Cable Specification
Application
1.Data communication network.
2.Optical System Access network.
3.Storage area networking fiber channel.
4.High density architectures.
Features
1.100% pre-terminated and tested in factory to ensure transfer performance.
2.Rapid configuration and networking, reduce installation time.
3.Supports 40G and 100G network
4.Cable Jacket material: LSZH, OFNR, OFNP
3.Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are
Connector Types
| Type | Reference | Note | |
|
MPO |
IEC 61754-7 | Single mode | APC: Green connectors (Standard ) APC: Yellow connectors (Elite) |
| Multimode | PC: Aqua Connectors | ||
|
MTP |
IEC 61754-7 | Single mode | APC: Green connectors (Standard ) APC: Yellow connectors (Elite) |
| Multimode | PC: Aqua Connectors | ||

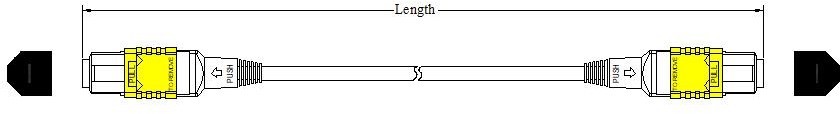

Dimensional Diagrams
- MPO/MTP Trunk Cable (Method A, Method B, Method C).
MPO/MTP Trunk Cable StructurePatch cord versions
| Jumper tolerance requirement | |
| Overall length (L) （M） | length of tolerance（CM） |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
Cable Structure

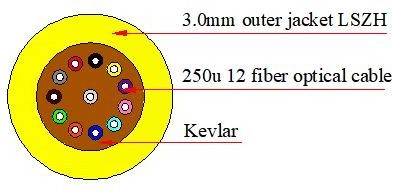

MPO/MTP Trunk CableCable Parameters
|
Cable Count | Out sheath Diameter （MM) |
Weight （KG) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature （℃） | |||
| short term | long term | short term | long term | short term | long term | ||||
| 12 | (5.1±0.3)*(2.3±0.3) | 11.6 | 150 | 80 | 500 | 200 | 20D | 10D | -20 -- +70 |

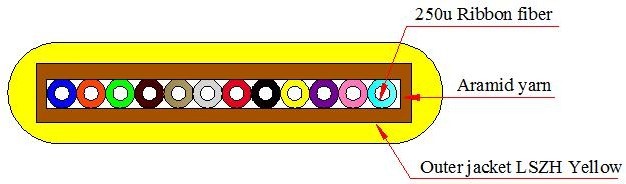

Cable Structure
MPO/MTP Trunk CableCable Parameters
| Fiber account |
OD(mm) | Nominal Weight (kg/km) | Max.tensile Strength(N) | Max.Crush Resistance (N/100mm) | Min.Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 12 | 3.0±0.15 | 7.0 | 180 | 90 | 500 | 150 | 20D | 10D |
Optical Characteristics
|
Item | Parameter |
Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC 61300-3-34 |
| Return loss | ≥ 50dB (PC) ≥ 60dB (APC) | ≥ 55dB (PC) ≥ 65dB (APC) | ≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
End-Face Geometry
| Ferrule parameter | IEC-61300–3-30 | |||
| Minimum | Maximum | |||
| ROC | ROC-X: | 2000mm | ∞ | |
| ROC-Y: | 50mm | ∞ | ||
|
Angle | Angle-X: | -0.2° | 0.2° | |
| Angle-Y: | PC | -0.2° | 0.2° | |
| APC | 7.85° | 8.15° | ||
| Fiber Hight: | 1000nm | 3500nm | ||
| Max.DH.All: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | MM | -200nm | 300nm | |
| SM | N/A | N/A | ||
| Ferrule height | 7.9mm | 8.05mm | ||
End-Face Qualty (SM)
| Zone | Range (um) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None |
IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
End-Face Qualty (MM)
| Zone | Range (um) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None |
IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 matings | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 400N (main cable); 50N (connector part) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (main cable); 0.2N for 5min (ranch part) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
