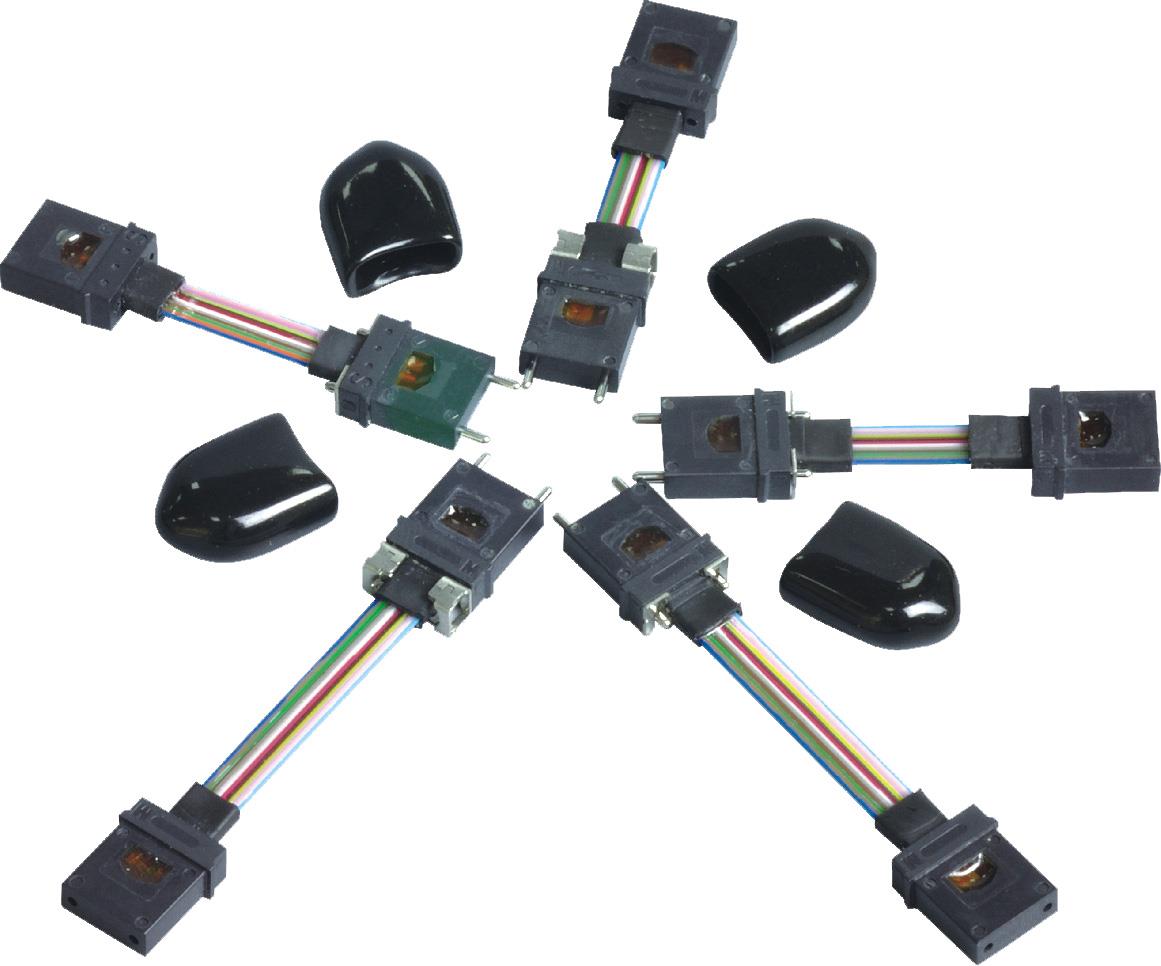

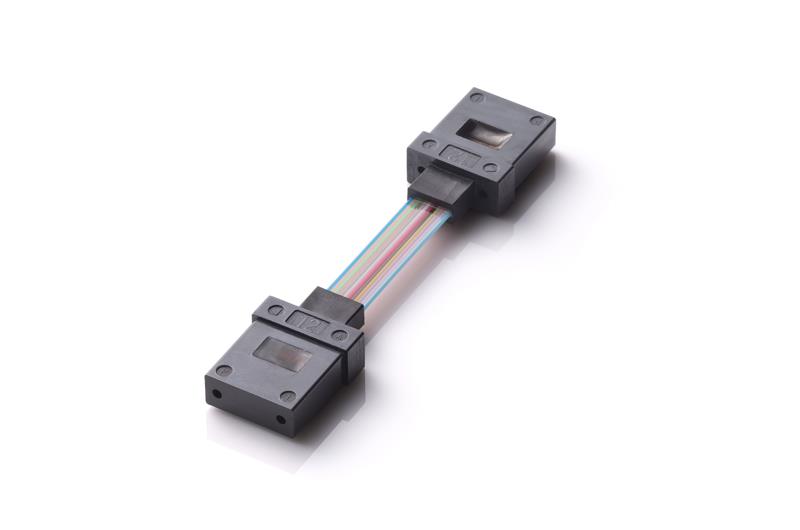

MT-MT patch cord for QSFP Module
MT-MT patch cord is used in optical QSFP Module, Connect the optical lens with external port, OM2/OM3/OM4 fiber can be used, the length is very precise to meet the small space.

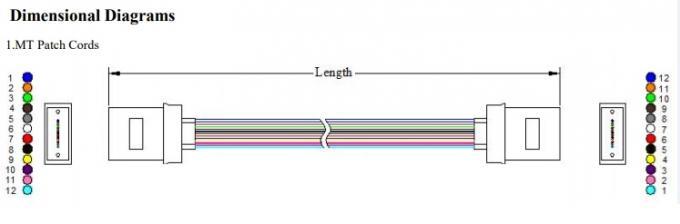

MT-MT patch cord for QSFP Module StrutureSpecification:
| Items | Elite Performance | Std Performance |
| Insertion Loss | ≤0.35 dB | ≤0.5 dB |
| Return Loss | PC≥20 dB | ≥20dB |
| Durability | 500times | |
| Operation temperature | -40℃-+85℃ | |
| Fiber Type | OM2/OM3/OM4 | |
Feature
- Cross or parallel connecting
- 40G/100G transmission speed
- Standard or low loss can be optional
- 8Cores or 12 cores can be optional
- GR-1435-Core compliance
- The length is specified by customer
- Ribbon fiber or separated fiber convenient for inside connection
Application MT-MT patch cord
- QSFP Module
- Multi channel testing instrument
- Data center
- Communication
MT Patch Cords A
