Flat Drop Patch Cord drop cable patch cord ftth drop cable patch cord
Flat Drop Patch Cord drop cable patch cord ftth drop cable patch cord are use in FTTH network for indoor and outdoor ,Local Area Network and Building Cabling Network,Interconnect between instruments,,terminal box and communication.
Flat Drop Patch Cord drop cable patch cord ftth drop cable patch cordAPPLICATION
- FTTH network for indoor and outdoor
- Local Area Network and Building Cabling Network
- Interconnect between instruments,
- terminal box and communication
FEATURES
- Low insertion loss, high return loss
- Available FTTH Drop cable diameters: 2.0*5.0mm; 2.0*3.0mm

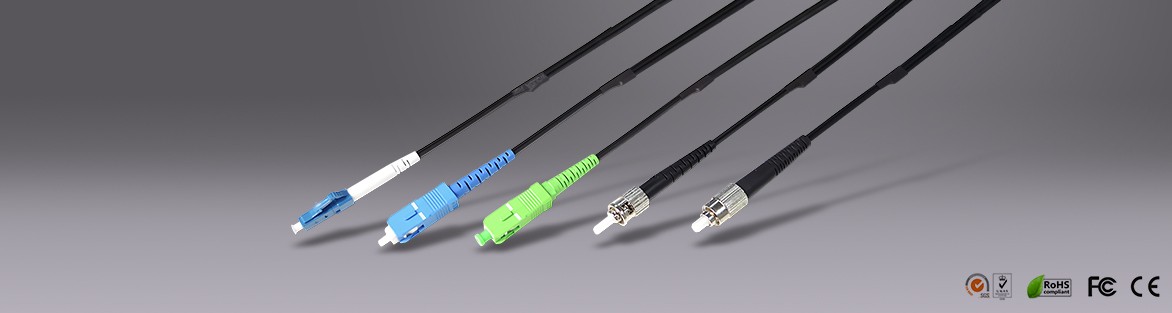

- Connector Types: LC, FC, SC,ST for option
- Fiber Mode: G652D, G.657A1, G657A2, G657B3
- Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC
- Compliant to IEC standard

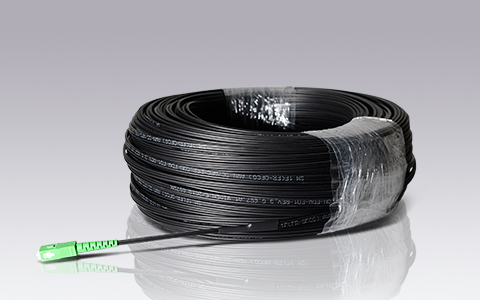

SC APC FTTH Flat Drop Patch Cord

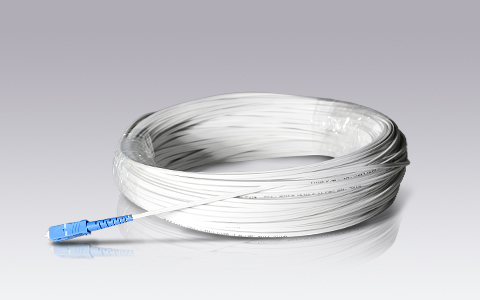

SC UPC FTTH Flat Drop Patch Cord| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
