What Is SFP-10G-LR-1310nm 10km DDM Optical Transceiver Module
SFP-10G-LR-1310nm 10km DDM Optical Transceiver Module This 10GBase-LR 1310nm SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length of 20/40/60km.
Features：
1.Optical interface compliant to IEEE 802.3ae 10GBASE-LR
2.Electrical interface compliant to SFF-8431
3.Hot Pluggable
4.1310nm DFB transmitter, PIN photo-detector
5.Low power consumption
6.Applicable for 10km/20km SMF connection
7.All-metal housing for superior EMI performance
8.Advanced firmware allow customer system encryption information to be stored in transceiver
9.Cost effective SFP+ solution, enables higher port densities and greater bandwidth
| Data Rate | 10G | Fiber Mode | Single Mode Fiber |
| Types of Interface | LC | Types of Laser | DFP |
| Operating Temperature | Standard 0-70°C | Operating Humidity | 0%-90% RH (non condensing) |
| Transmission distance | 20/40/60km | Modes of Communications | Duplex |
| Wavelength | 1310nm | Condition | New |
| Receiver Sensitivity | <-14.4dBm | Extinction Ratio | >3.5dB |
| Saturated Optical Power | -3dBm | Power Consumption | <2W |
| Hot Pluggable Times | 200 | Average Output Power | -8.2 - -0.5dBm |

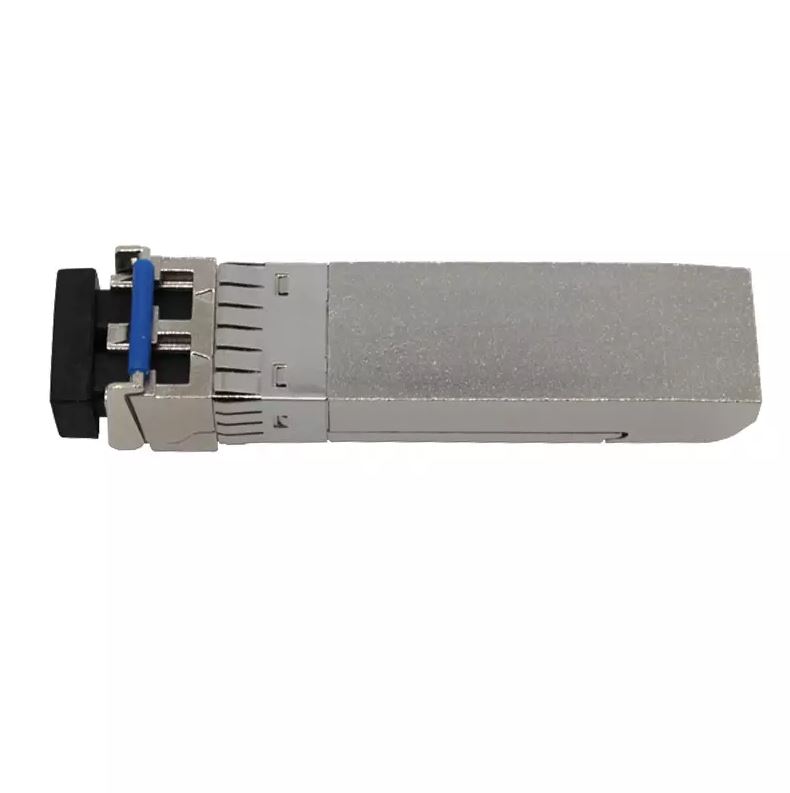

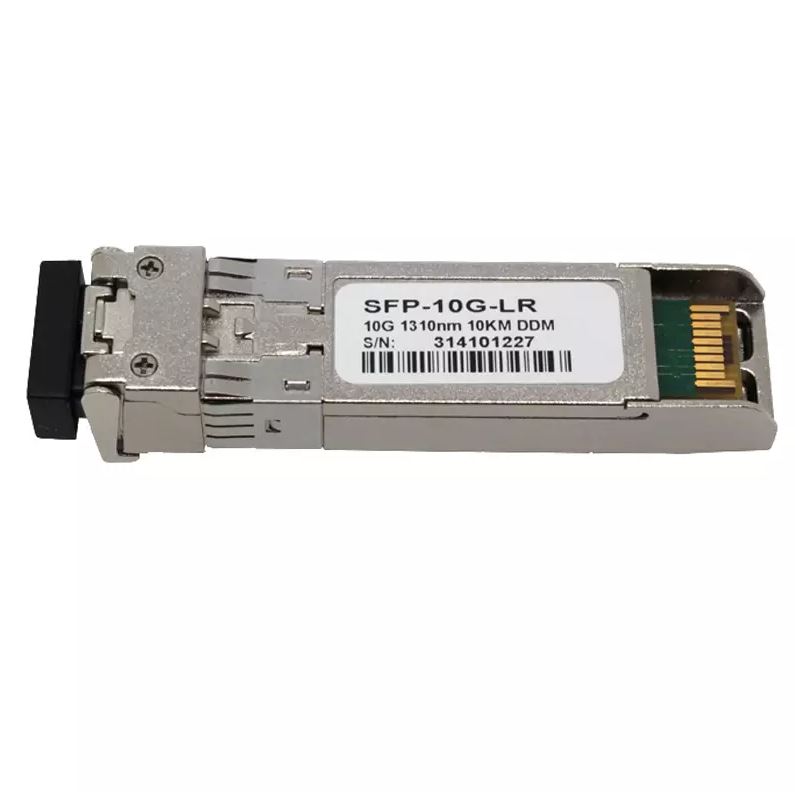

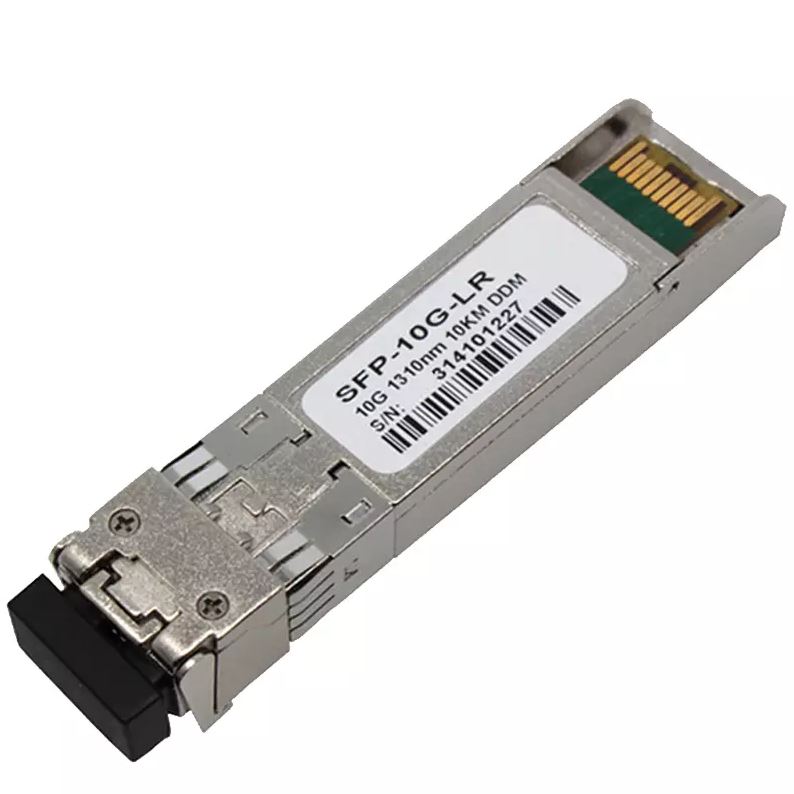

SFP-10G-LR-1310nm 10km DDM Optical Transceiver Module
SFP-10G-LR-1310nm 10km DDM Optical Transceiver Module 3
SFP-10G-LR-1310nm 10km DDM Optical Transceiver Module 2>- Customers Reviews
-
