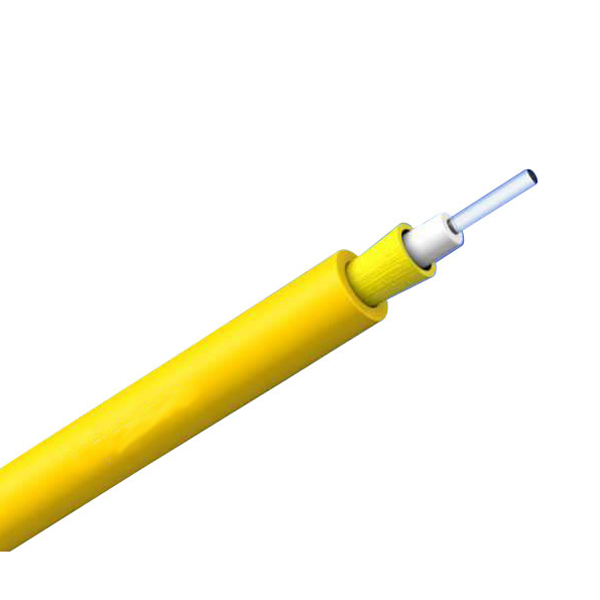

What Is Single-mode Simplex Tight Buffer 2.0 mm LSZH GJFJV Indoor Fiber Optic Cable

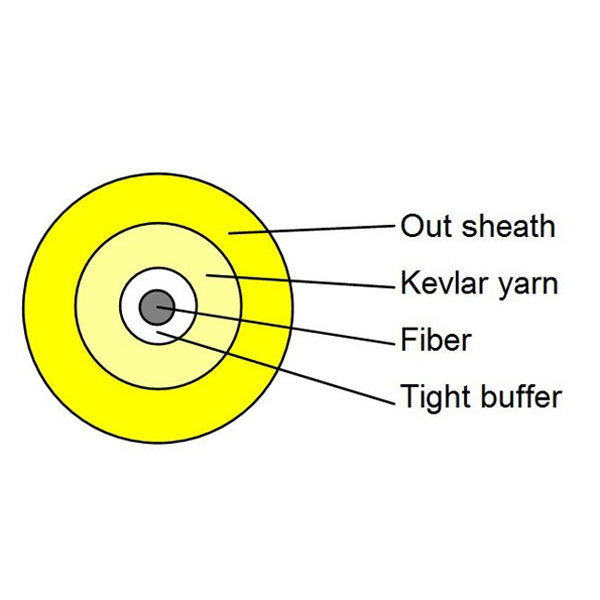

Single-mode Simplex Tight Buffer 2.0mm LSZH GJFJV Indoor Fiber Optic Cable The fiber is coated with 250um soft plastic, and then covered with a 900um tight buffer thick layer of hard plastic, which add some fiber protection.The Kevlar yarn material ensure a good performance of tensile strength. And the Flame retardant outer jacket could be used in Riser environment.The cable diameter is 2.0mm,3.0mm optional.patch cord cable
Single-mode Simplex Tight Buffer 2.0mm 2.0mm LSZH GJFJV Indoor Fiber Optic Cable
Single-mode Simplex Tight Buffer 2.0 mm 3.0mm LSZH GJFJV Indoor Fiber Optic CableFeatures:
- Soft,flexible and easy to do stripping, splicing and cabling
- Good mechanical and environmental characteristics
- The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards
- Kevlar yarn material ensure a good performance of tensile strength
- 900um tight buffer protect the fiber well
Application:
- Single core round tight buffered indoor fiber optical cable applications
- Used in patch cords and pigtails
- Interconnection of fiber optic equipment
- Adopted to indoor distribution..
- As pigtail of communication equipment.
- Suitable for communication equipment served.
- Can be installed conveniently and perated simply.
Technical Parameters:
| Out sheath Diameter | Tight buffer Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature | |||
| （MM) | （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） |
| 1.6 | 0.6 | 2.80 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 1.8 | 0.6 | 3.00 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 2.0 | 0.9 | 4.25 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 2.4 | 0.9 | 5.00 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 2.8 | 0.9 | 6.60 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 3.0 | 0.9 | 7.00 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| Optical Characteristics: | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C） | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657（A1、A2 、B3） | B4: Main technical data for positive dispersion shifted single-mode fiber | |||

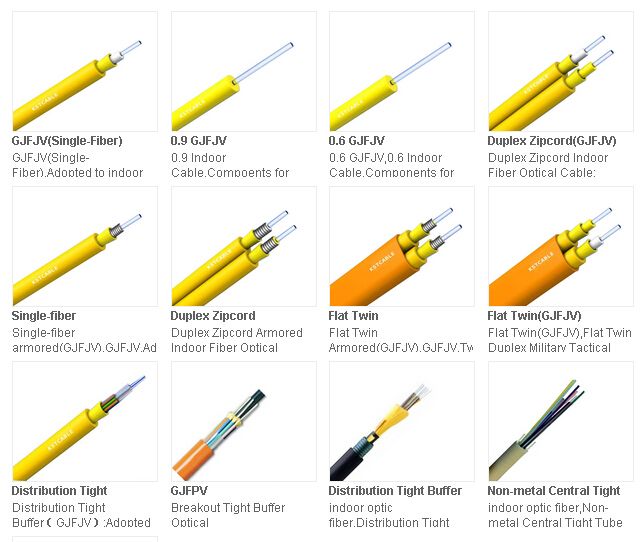

Indoor Fiber Optic Cables Type

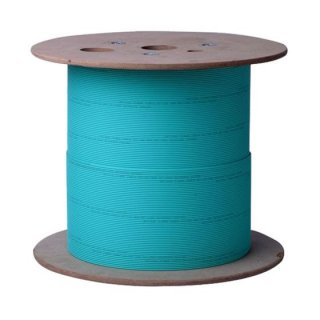

Dram for indoor Fiber Optic cable light weight cables 2Km
Dram for outdoor Fiber optic cable heavy weight cables 2Km
Cable Dram Information and markingwiki
