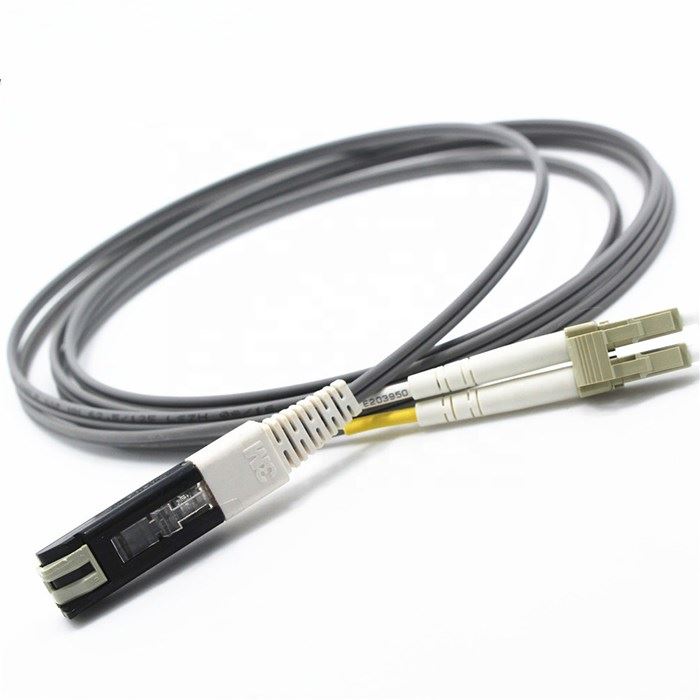

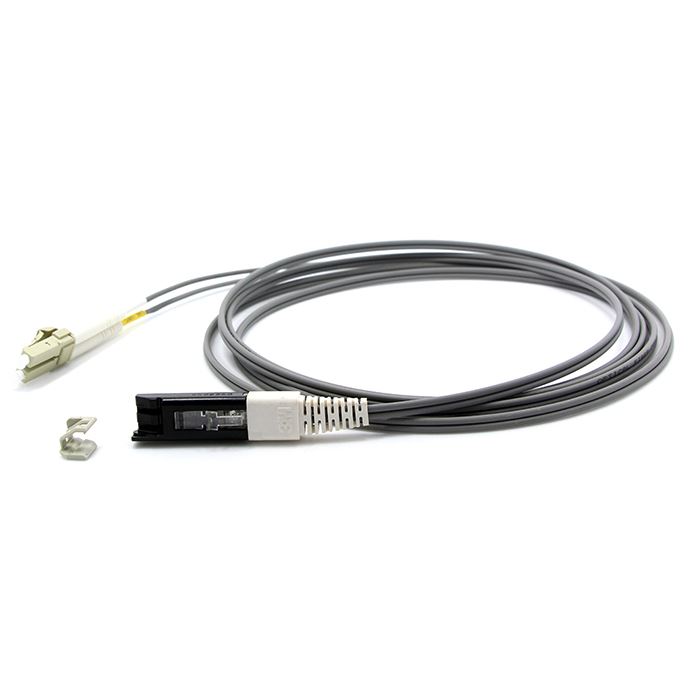

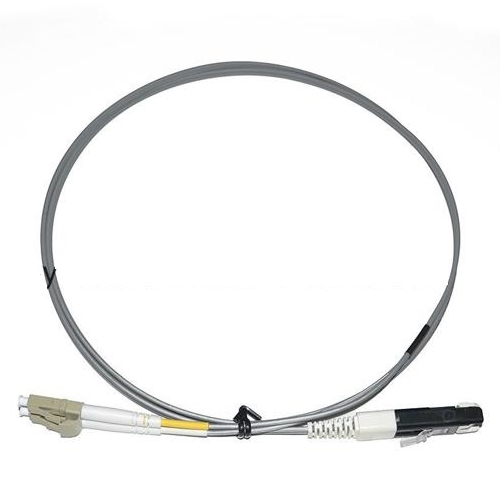

VF45 – LC fiber patch cable Duplex Sm and MM with 3M GGP fiber 3M brand connector
Customized high-strength optical fiber VF45 –LC MM OM1 OM2 patch cord GGP Fiber Patch Cord
3M Volition VF-45 patch cables are manufactured using GGP(Glass/Glass/Polymer) fiber optic cables and industry standard ST, SC, FC, LC, MTRJ and VF-45 fiber optic connectors. GGP fiber cable assemblies are ideal for panel-to-panel cross-connects, equipment back planes, under desk and other applications that require reliability and mechanical strength. Volition VF-45 patch cables are ideal for applications requiring tight bends, durability and depend ability. They’re great for exposed fiber optic cable situations, such as under-desk applications where their mechanical strength and tight bend radius makes them more resistant to kicks, pulls and bends.
3M Volition VF-45 Patch Cords use the excellent reliability and ruggedness of 3M glass/glass/polymer (GGP) fiber optic cable which is ideal for applications requiring tight bends, durability and dependability. The cable used to make Volition patch cords is grade index multimode optical fiber with 10um glass cladding diameter and 125um polymer coating diameter. The polymer is a tough permanent coating, which provides improved strength and bends resistance. The static fatigue parameter is a 50% improvement over standard life. This High strength fiber is fully compatible and interminable with standard glass fiber.
GGP Fiber Proven 3MTM Technology Allows Tighter Bend Radius (3/8 inch)Easier to Route and Manage Exceptional Strength and Durability Withstands Abuse
All VF45 patch cords are constructed with the innovative 3M “GGP” high-strength coated optical fiber, providing enhanced durability under tight bend radius conditions.

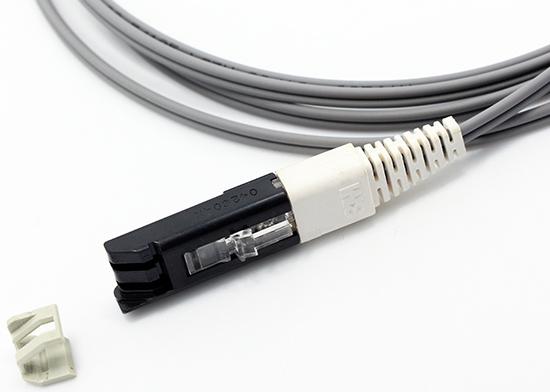

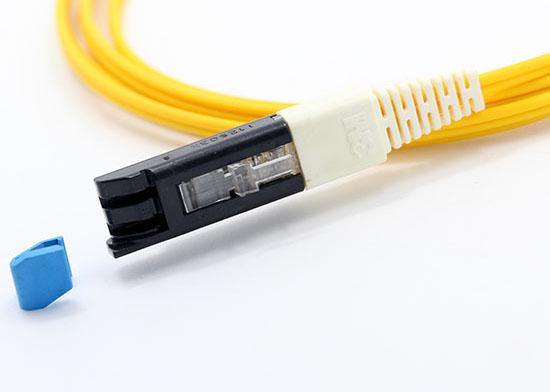

VF-45 Fiber Optic Patch Cord is designed by 3M and features plug and jack design without the need to adapters. VF-45 plug is inserted into the socket (jack) at a 45-degree angle, pressing a pair of fibers into V-grooves inside the socket. This design of VF-45 Connector eliminates the need for expensive ferrules thus reduce connector costs.
About the VF-45 Patch cord
All VF45 patch cords are constructed with the innovative 3M “GGP” high-strength coated optical fiber, providing enhanced durability under tight bend radius conditions.
VF-45 Fiber Optic Patch Cord is designed by 3M and features plug and jack design without the need to adapters. VF-45 plug is inserted into the socket (jack) at a 45-degree angle, pressing a pair of fibers into V-grooves inside the socket. This design of VF-45 Connector eliminates the need for expensive ferrules thus reduce connector costs.

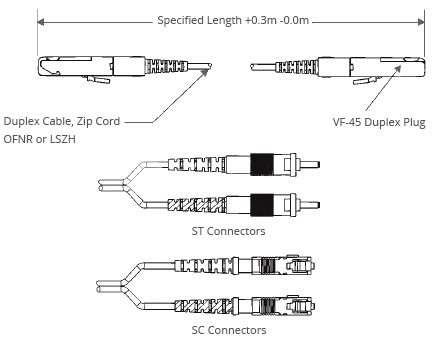

OMC’s VF-45 patch cords are provided in a variety of lengths and are also available in hybrid LC,SC,FC,ST,MTRJ configurations.
Features
- VF-45 Connector is half the size of the SC Connector
- Minimum space required when mounted in telecom enclosure or other racks
- VF-45 Optical Connector works on standard 62.5um or 50um multimode fiber
- Tested to TIA and IEC performance specifications
- RJ-45 style latch for ease of use and familiarity
- RoHS compliant for all VF-45 connector material
Order Information

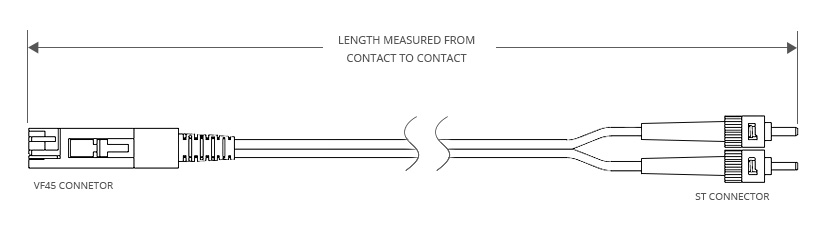

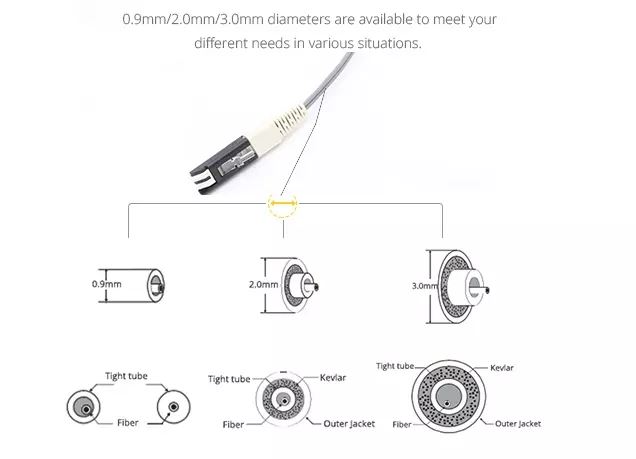

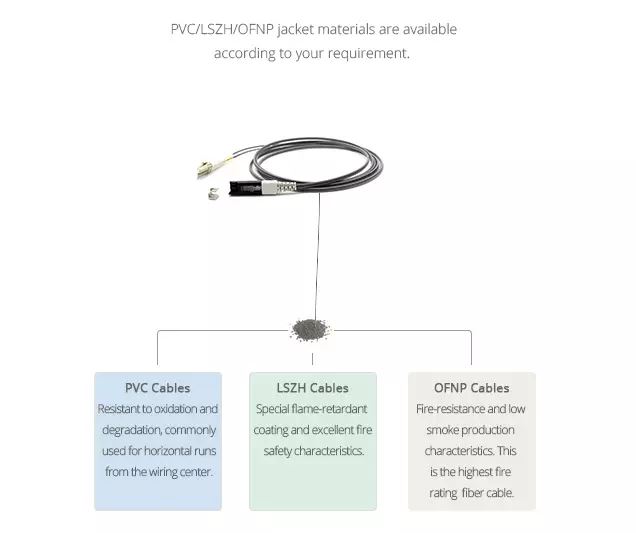

Length in Meters: 1; 1.5; 2; 3; 5; 6; 8; 15; 30;Custom Cable Jacket Type: R-Riser; L-LSZH;CustomFiber Type by Core Size: 50/125(MM); 62.5/125(MM); 9/125(SM);CustomSecond Connector End: V-VF-45 Plug;ST;SC;LC;CustomFirst Connector End is Always Volition VF-45 Plug
Application
- Interconnect socket (field terminated)
- Wall outlets and faceplates
- Termination and cleaning kits
- Test equipmentTechnical Data
Item | Parameter | |
Single-mode | Multi-mode | |
Insertion Loss | ≤0.75dB | |
Return Loss | ≥50 dB (SM PC),≥35 dB (MM PC) | |
Repeatability | ≤0.1dB | |
Durability | 0.2dB Max. 1000 mattings | |
Operating Temperature | -40℃-+85℃ | |
Storage Temperature | -40℃-+85℃ |
