What Is Fiber optic adapter (Coupler)?

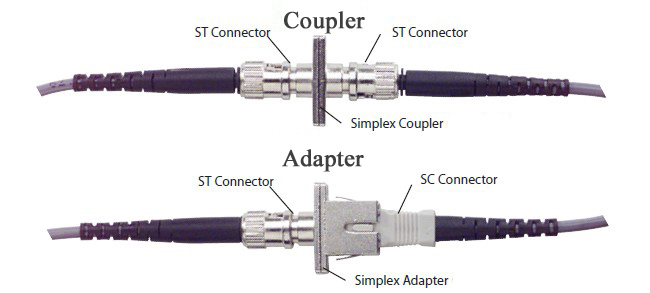

Fiber optic adapter is a device used to connect two fiber optic connectors in the fiber optic cabling system. It seems like a bridge to connect the gap between two same styles connectors, even the different connectors. Due to its fuction, there is a specific situations of fiber optic adapter. If two fiber assemblies to be connected have the same style fiber connectors, it is called coupler. If the two fiber assemblies to be connected have different style connectors then we always call adapter. We can see an example in the following picture. The adapter connected ST connector to ST connector, both sides are the same style, in this time, we call coupler. Otherwise, we call adapter.

Types of Fiber Optic Adapter

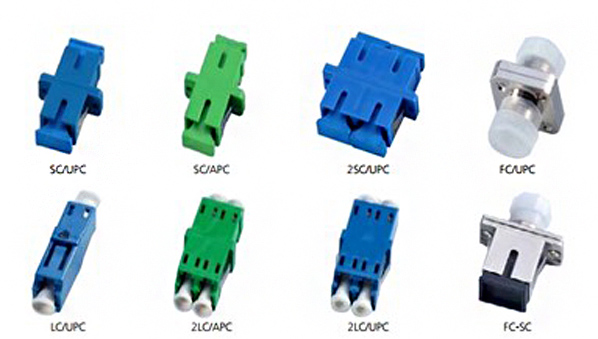

According to the diversity of the fiber optic connectors, there are many types of fiber optic adapters. Adapters are available to join like connectors SC-to-SC, ST-to-ST, or FC-to-FC–and different styles of connectors. The latter devices are called hybrid adapters and are used, for instance, to join ST and SC connectors. We can see the following pictures to know more about different types of fiber optic adapters.

How do Fiber Optic Adapters work

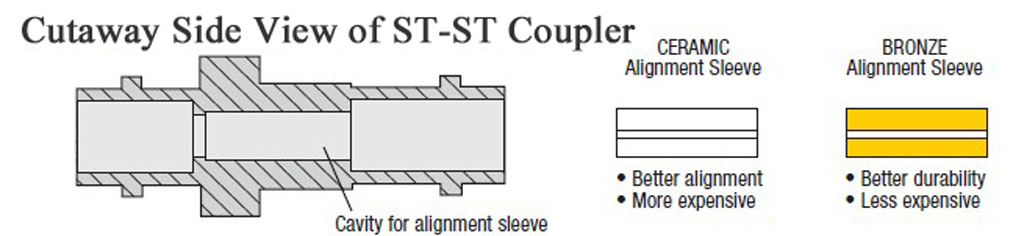

As we known, the key to a fiber connection is the precise alignment of each fiber core, so traditional connection method, such as the soldering is defective. Inside each fiber optic adapter, there is the alignment sleeve. The aligment sleeve is the most critical component of a fiber optic adapter. Bronze sleeves are more durable but the precision is not as good as ceramic. Ceramic ferrules offer a more precise alignment, but they are somewhat less durable. Bronze alignment sleeves are commonly used in multimode applications where precision alignment is not as critical. The performance of the adapter, defined as how well it aligns two connector ferrules, is determined by the amount of spring force in, and the tolerances of, the split sleeve. It needs a very professional technology to make it a reality.

SUNMA’s Fiber Optic Adapters Solutions
SUNMA offers a variety of fiber optic adapters with types including single mode and multimode, LC, SC, ST, MU, FC, MTRJ, E2000, SMA, etc. All the fiber optic adapters have reliable performance and are on sale with good discount. We also welcome any inquiry for customized adapters.

Product’s Features:
Fits accordingly LC, FC, ST ,SC adapters
Lightest weight and very compact size
Specially designed mechanism minimizes insertion loss
Easy to operate
User friendly – easy to insert, remove and reload fiber

Fuctions:
A cable to cable fiber optic connection
Cable to equipment fiber optic connection
