![IP68 ODLC & ODMC Fiber Optic Cable Assemblies](/images/tupianwenjian/what-is-ip68-odlc-odmc-fiber-optic-cable-assemblies-1926.jpg)

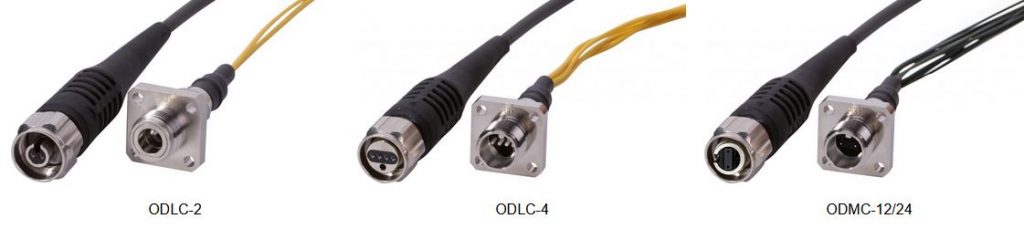

IP68 ODLC Fiber Optic Cable Assemblies (patch cord) have weatherproof metal ruggedized connectors and are available in 2-24 fibers.Based on the N-Type RF threaded connector housing, this interconnect system provides superior optical performance in outdoor environments using LC-style 1.25mm ceramic ferrules for ODLC connectors and MT-style ferrules for ODMC-12/24 connectors.The corrosion resistant metal housing provide a durable and environmentally protected solution for optical connectivity in areas exposed to elements such as rain, snow, dirt, and other types of contamination.These assemblies mate using a plug and socket interface.
Formats
ODLC-2-Fiber Optic Cable Assemblies Patch Cord
![ODLC-2-Fiber Optic Cable Assemblies Patch Cord](/images/tupianwenjian/what-is-ip68-odlc-odmc-fiber-optic-cable-assemblies-1927.jpg)

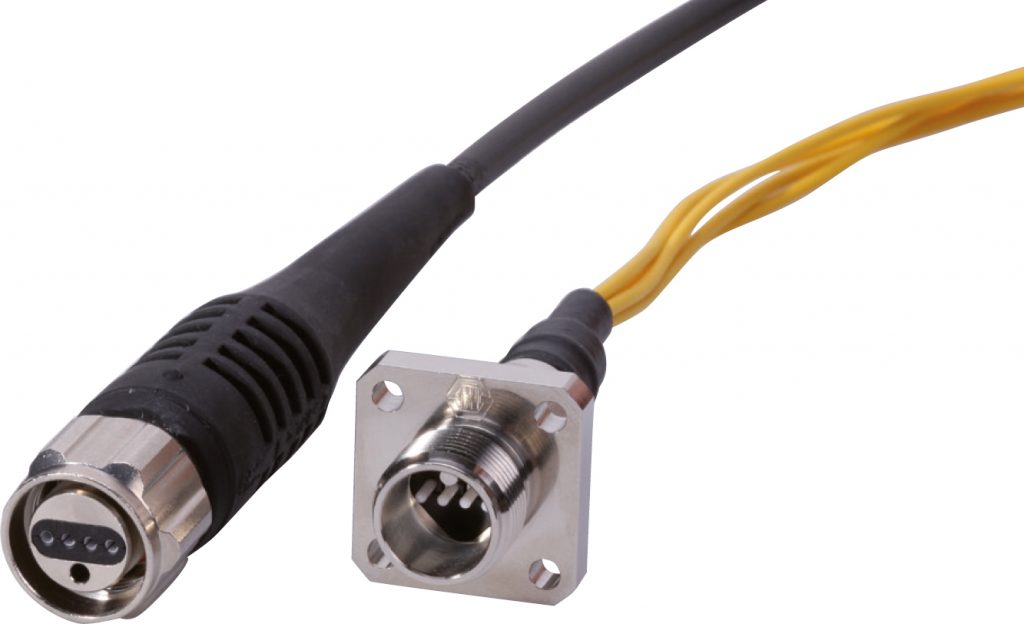

ODLC-4 Fiber Optic Cable Assemblies Patch Cord
![ODLC-4 Fiber Optic Cable Assemblies Patch Cord](/images/tupianwenjian/what-is-ip68-odlc-odmc-fiber-optic-cable-assemblies-1928.jpg)

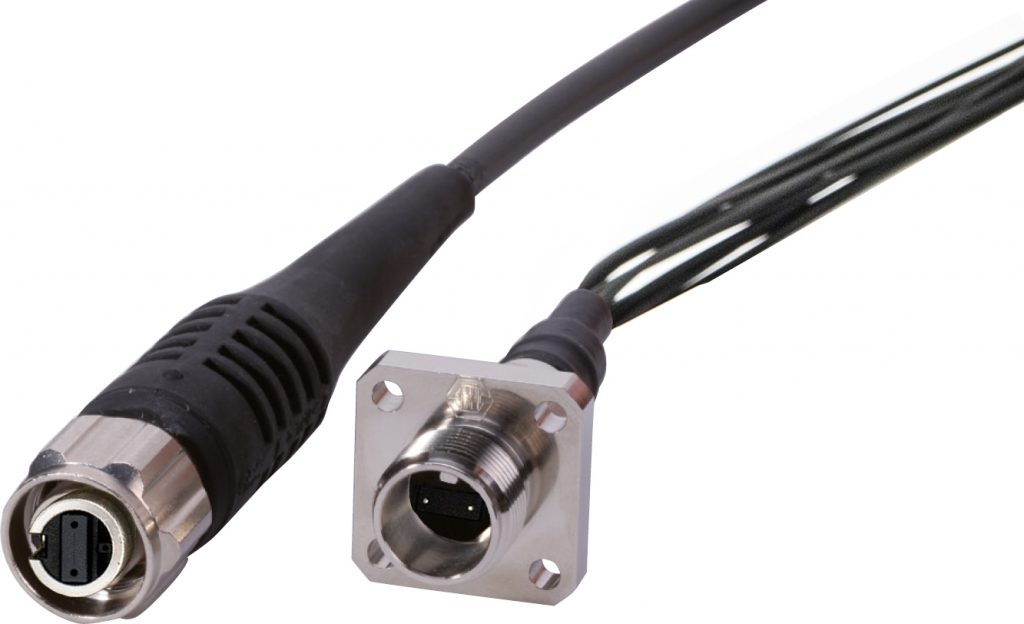

ODMC-12-24 MTP MPO Fiber Optic Cable Assemblies Patch Cord
![ODMC-12-24 Fiber Optic Cable Assemblies Patch Cord](/images/tupianwenjian/what-is-ip68-odlc-odmc-fiber-optic-cable-assemblies-1929.jpg)
Features
- Meets IP68 Standards and designed for harsh environment applications
- The threaded locking mechanism requires no tools for insertion or removal ensuring an easy and safe installation
- Indoor/outdoor or outdoor rated cable available in 5.0 or 7.0mm jacket sizes with singlemode or multimode fiber
- Compact socket and plug design
- Fulfills performance standard IEC 61753-1 Cat. E
- Waterproof, dust proof and corrosion resistant
- Waterproof protection caps
- EMI protected
- RoHs compliant
Applications
- Outdoor events, shows, or anywhere rugged or
- weatherproof connectivity is required
- FTTH or FTTMDU
- FTTA cell tower Remote Radio Units (RRU) or RRH
- Industrial machinery or diagnostic equipment
IP68 Rated
Solid Particle Protection
IP First Digit Rating Level: 6
Totally protected against dust ingress (dust-tight).
Liquid Ingress Protection
IP Second Digit Rating Level: 8
Protected from water ingress while immersed in deep water.
Specifications
ODLC-2/4 Technology | Full Ceramic Ferrule and Sleeve |
ODMC-12/24 Technology | Plastic Ferrule (PPS) |
Housing Material | Nickel-Plated Brass |
Plug Mechanical Performance | ≤ 800 N Tensile Load and ≤ 30 N Static Side Load |
Socket Mechanical Performance) | ≤ 30 N Tensile Load |
Installation Torque Force | Min. 1 Nm and Max. 2 Nm |
Operating Temperature (IEC 61300-2-22) | 40 up to +85 °C |
Mating Durability | 1000 Cycles |
Ingress protection (mated) (IEC 60529) | IP 68 |
Salt mist (IEC 61300-2-26) | Passed 30 days |
Vibration (IEC 61300-2-1) | Passed 10 to 500 Hz/10 g |
Shock (IEC 61300-2-9) | Passed 100 g |
Insertion Loss (IEC 61300-3-34) | ODLC-2/4: ≤ 0.20 dB, ODMC-12/24: 0.45 dB |
Return Loss (SM Only) | ODLC-2/4: ≥ 55 dB, ODMC-12/24: ≥ 65 dB |

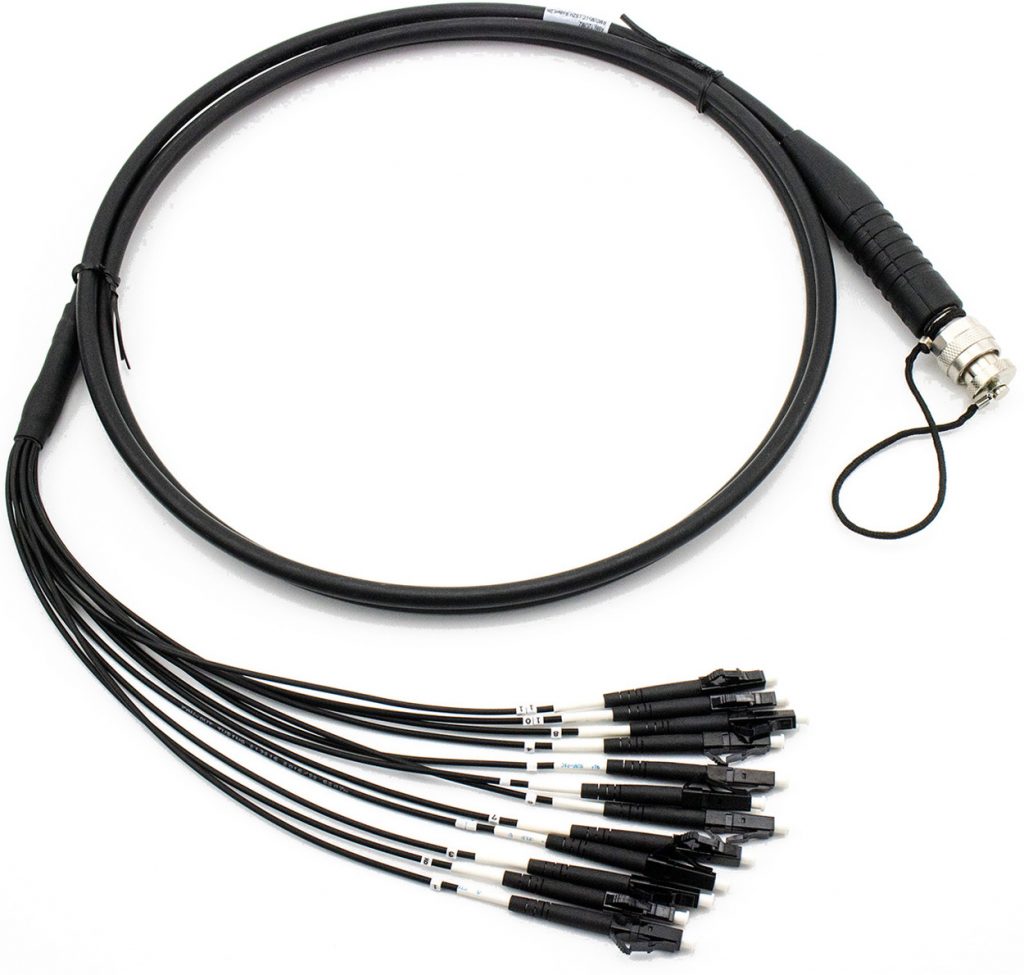

IP68 ODLC Fiber Optic Cable Assemblies PLUG Type
![IP68 ODLC Fiber Optic Cable Assemblies PLUG Type](/images/tupianwenjian/what-is-ip68-odlc-odmc-fiber-optic-cable-assemblies-1930.jpg)

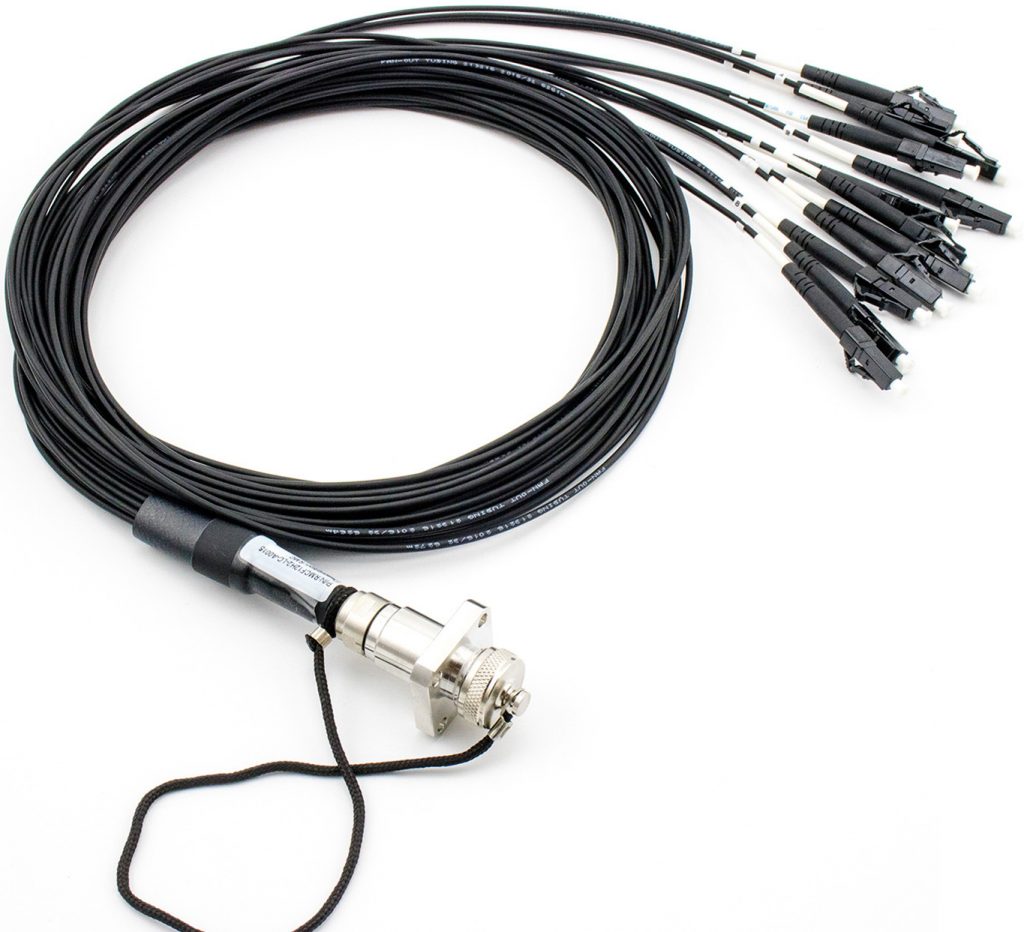

IP68 ODLC Fiber Optic Cable Assemblies Socket Type
![IP68 ODLC Fiber Optic Cable Assemblies Socket Type](/images/tupianwenjian/what-is-ip68-odlc-odmc-fiber-optic-cable-assemblies-1931.jpg)

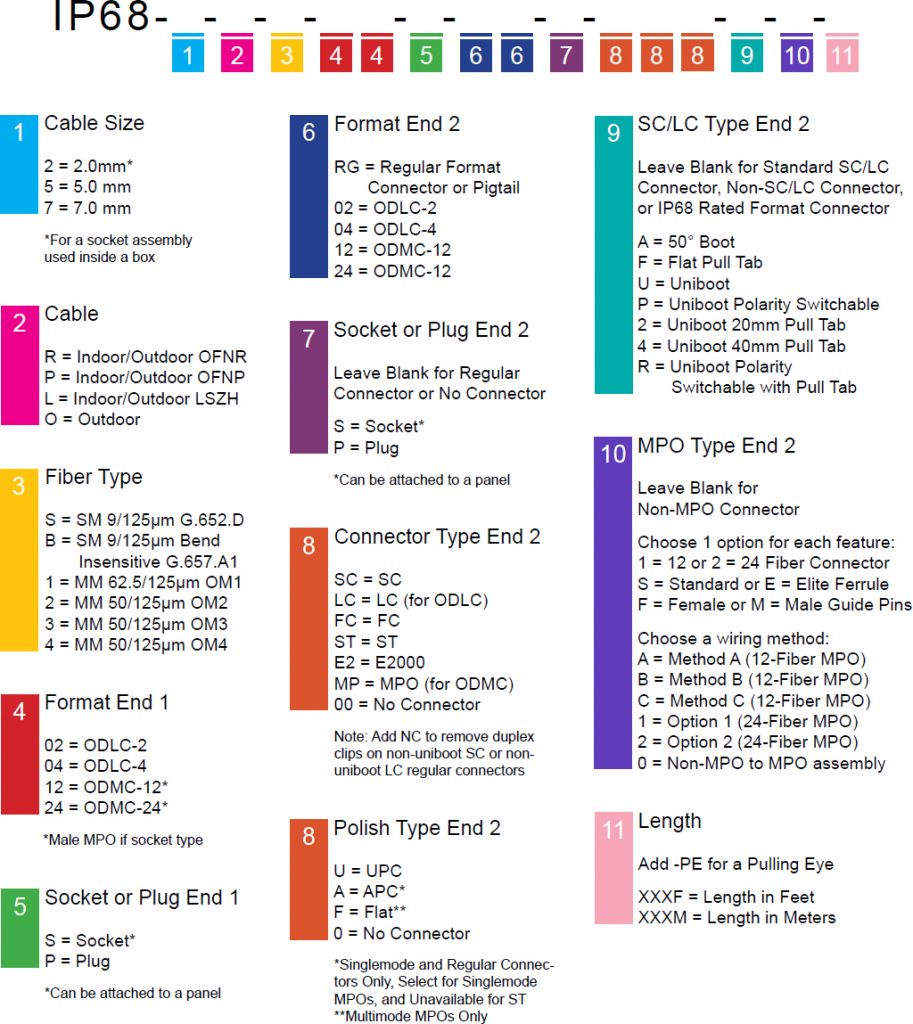

Ordering Format
![](/images/tupianwenjian/what-is-ip68-odlc-odmc-fiber-optic-cable-assemblies-1932.jpg)
