MTP is a registered trademark of US Conec, which is the acronym for Multi-fiber Termination Push-on. When it comes to MTP connectors in daily operations, MPO connector is often seen as an interchangeable term. Though MTP brand connectors are fully compliant with MPO standards and are fully compatible with MPO brand connectors, nevertheless, MTP connectors are not totally the same as MPO connectors. Different from MPO which is a standardized interface type, MTP can be regarded as one high-performance version of MPO connector. MTP connectors are able to provide quick connection for up to 72 optical fibers, among which 8 fibers, 12 fibers and 24 fibers are the most common types. These connectors can join in different cables to become MTP trunk cables such as 24-fiber MTP to MTP trunk cable or MTP -LC harness cables, or they can be used to terminate links on cassettes in fiber patch panels through adapters. The components of an MTP cable connector are illustrated below.
Figure 1: Deconstruction of MTP fiber connector
Seen with the naked eye, there is very little difference between MTP connectors and MPO connectors. Both the MPO and MTP connectors have variants of 12/24/48/72-fiber connectors and have a key on one side of the connector body as well as male and female plug type. However, compared with standard MPO connectors, MTP connectors offer novel patented features and significant performance improvements.

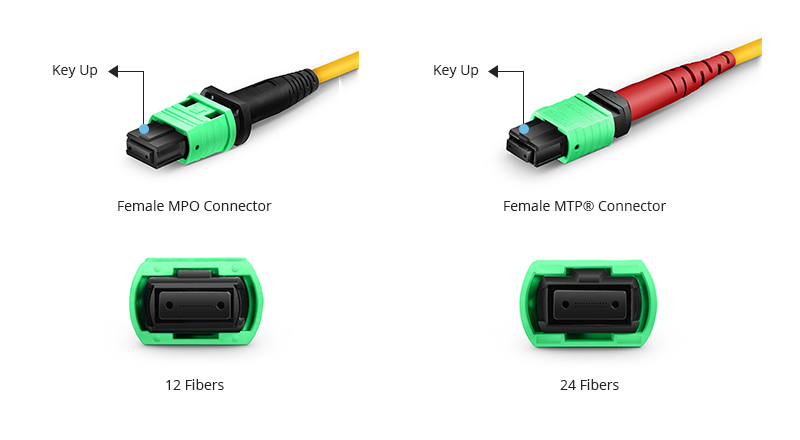

Figure 2: Female MPO connector vs Female MTP connector
READ MORE ...Fiber Optic Patch Cables- Customers Reviews
-
