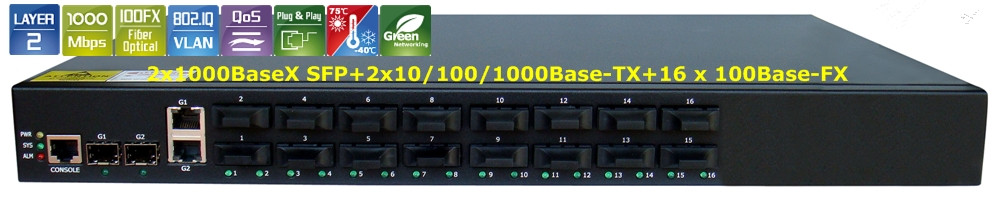

16 Fiber Port &2GE Fiber&2/4 UTP lan port Fiber optic ethernet switch ，Fiber Media Converter
Multi-gigabit optical aggregation series is my company based independent software research and development from a fiber aggregation switches, which have 16 * 1000M optical ports and 2/4 * 10/100 / 1000M adaptive Ethernet electrical interface. , Transmission distance: Multimode: 550m; Single-mode: 20/40/80 / 120KM (optional).
Multi-gigabit optical convergence convergent series fiber optic switch is a photoelectric signal switch Gigabit Ethernet (Gigabit Fiber Switch) of electrical and optical signals multiplexed centralized exchange used, it meets IEEE802.3z / A standard, MTBF: > 70,000 hours
□ 16 * 1000Base-X optical ports and2/ 4 * 1000Base-T electrical interface composition;
□ Standard: IEEE802.3z / A;
□ Ethernet electrical interface supports full-duplex and half-duplex network communication, with auto-negotiation capability;
□ Ethernet port supports AUTO-MDIX (crossover cable and straight-line adaptive);
□ High backplane bandwidth, two-story full wire-speed packet forwarding rate of exchange;
□ can detect when the optical signal is lost for the end of the fiber optic equipment down or nowhere, and through the LED indicates alarm;
□ light switch electrical ports are 10/100 / 1000M auto-sensing ports, the device according to the connected electrical outlet hear each other to set their own rate highest rate;
□ unrepeated transmission distance of up to 2∽120 kilometers;
□ Optical interface Optional: single fiber / dual fiber, single-mode / multi-mode;
□ Interface: LC (SFP)
□ Power supply: built-in power AC220V;
Ethernet port
Quantity: 2/4
Type: RJ45,10 / 100 / 1000M,
Rate: 10/100 / 1000M adaptive, full / half duplex fully adaptive
Protocol: IEEE 802.3, IEEE 802.1Q (VLAN)
MAC address table: 4096 MAC addresses can be learned
Physical interface: RJ45 seat support (cross / straight-line adaptive) Auto-MDIX
Optical Interface
Quantity: 16
Type: SFP/SC, 1000M
Wavelength: singlemode 1310nm / 1550nm
Multimode 850nm / 1310nm (optional)
Fiber Count: single fiber / dual-fiber (optional)
Transmission power: -9dBm∽-5dBm
Transmission Length: singlemode 20/40/60/80/100 / 120km
Multimode 2km (optional)
Receiving sensitivity: Better than -36dBm
Connector: SC / FC / LC, default: SFP
Mechanical properties
Housing: IP30 protection grade, metal
Installation: Desktop, wall-mounted
Industry Standard
EMI: FCC Part 15. CISPR (EN55022) class A
Industry: IEC6100-6-2
Railway: EN50155.EN50121-4
Transportation: NEMA TS-2
Coal: GB / T3836.1 / 2/3/4
Machinery: IEC68-2-6 / 27/32
working environment
Operating temperature: 0 - 50 ℃
Storage temperature: -20 - 70 ℃
Relative humidity: 5 to 90% (non-condensing)
power supply
Power: AC220V (built-in)
