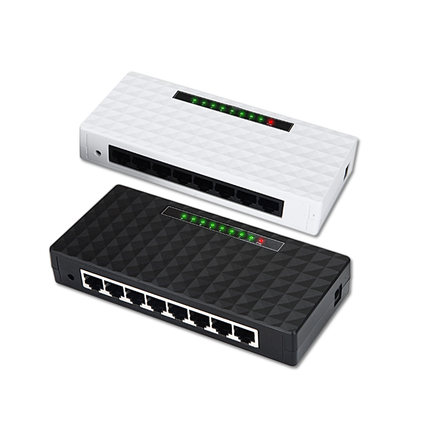

100M 8 port reverse power supply POE switch for FTTH ONU
Product description
8 port 100M POE Enhanced fast type Ethernet switch
CPU
Industrial grade Chips
POE Function
REVERSE port1-port8 VOL DC9-57V 45+ 78-/12+ 36-
Characteristic
Each port POE signal indicator
High quality metal case
Curing isolation function
Interrupt network loop function
Stop broadcast storm
DHCP conflict prevention
Interface
8port 10/100M- REVERSE POE
(All ports support MDI/MDIX adaptive)
1 port DC out 12V MAX 2A(5.5/2.1)
Forwarding mode
Store and forward
network media
10BASE-TX: And more than 5 types of unshielded twisted pair(≤150m)
100BASE-TX: And more than 5 types of unshielded twisted pair(≤150m)
Performance specification
Bandwidth:1.6Gbps (Non blocking)
network delay(10 to 100M bps):The maximum delay of less than 20 microseconds;MAC:2KBCompatible network protocols and standards
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control,IEEE 802.1Q VLAN bridge operation
LEDs indicator
Each port connection status, the working state of PoE system of the power indicator light
Power support
DCIN:9V-57V or DCOUT:12V MAX 2A
Physical specifications
175mm*92mm*32mm(L*W*H)
Package size
181mm*131mm*82mm(L*W*H)
Environmental Standard
Working temperature:0°-55°C
Storage temperature:-20°-75°C
Working humidity:10%-90%,No condensation
Storage humidity:10%-95%,No condensation
Working height:Altitude 3000 M Altitude(10,000ft)
Storage height:3000M Altitude(10,000ft)Safety
surge absorption
weight
0.5kg(+power)
warranty
1 years
