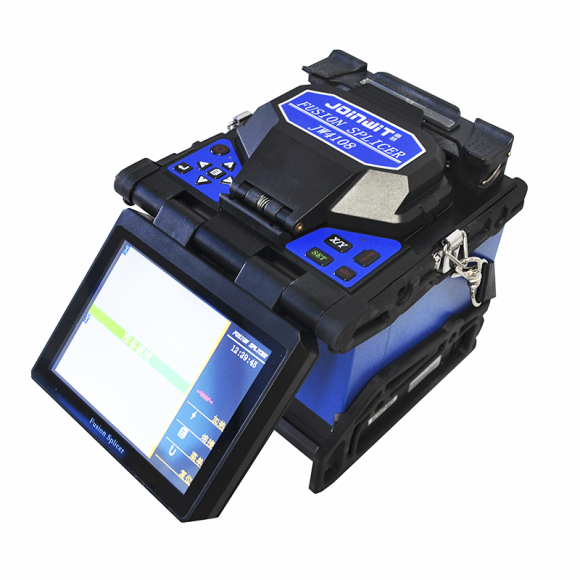

What Is JW4108 Digital Fiber Fusion Splicer price and specification
Features:
l 5 inches high Resolution
colorful LCD display
l Average splice time: 10
second
l Average tube-heat time: 30
second
l Lithium battery: up to 180
times of continuous splice and heat
l Simultaneous X and Y views
with 180 times magnification
l New developed technology
providing wind and dust resistance
l Splicing mode：Auto
& Manual & Full-Automation
l USB Port
l Storing 6,000 groups of
splice results.
l Multipurpose optical fiber
fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)
Specifications：
Applicable Fibers | SM, MM, NZ-DS, EDF ,Pigtail, |
Average | 0.02dB(SM), |
Return | ≥60dB |
Tension | 2.0N(200gf)（Standard） |
Splicing | 50 groups |
Protection | 20mm, 40mm, |
Language | Chinese, English |
Environmental | -10-+50℃(operation temperature),0-95% RH(humidity), 0-5000m(altitude) |
Power | AC adaptor: 100-240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) DC adaptor: 12V voltage 8AH |
Dimensions | 155（W）*165（D）*150（H） |
Weight | 2.5kg |
Standard Package
No. | Item | Quantity |
1 | Machine | 1 |
2 | Fiber | 1 |
3 | Fiber | 1 |
4 | AC Adaptor | 1 |
5 | Battery | 1 |
6 | Charger | 1 |
7 | Spare |
* Delivery Time. |
