Basic Information
This 16 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure is used for splicing and termination between indoor SC LC FC fiber optic cable and pigtails. used for wall mounted to connect indoor cable with 16 pcs drop cables or 1:16 plc fiber optic splitters.
Specification
| Suitable Adapters | SC LC Adapters |
| Material | Premium ABS material |
| Weight | 1320g |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 16 Small Ports + 2 Cable Ports |
| Installation way | Wall Mounted or Pole Mountable |
| Dimensions | 320mm*270mm*105mm |
| Applications | Wall mount or pole mount |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 16pcs SC |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Both Indoor / Outdoor Cable |
| Location | Wall or pole Usually |
| Location of Use | FTTH,FTTB,FTTX |
| Lock Compatible | Screws |
| Number of Terminal Drops | 16 Cables |
| Number of Trays | 1 Splice Tray |
| Product Type | Splitter distribution or drop cable |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 16 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 20pcs |
Image Details

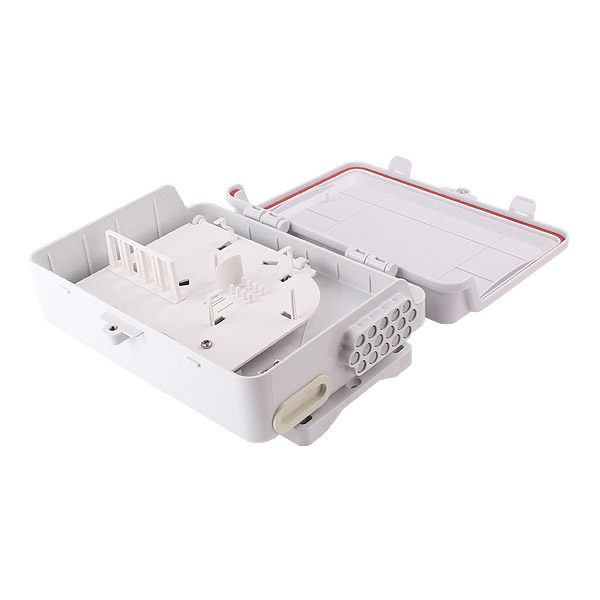

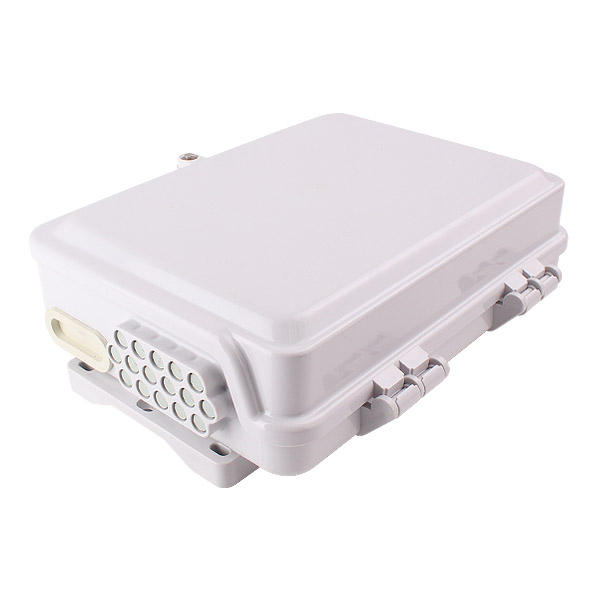

16 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure
FAQs
What items are included in this SC LC FC Fiber Wall Outlet Faceplate Socket Panel SP01A
A main parts (cover and base), 2 screws and 2 pcs heat shrinkable sleeves.
