Basic Information

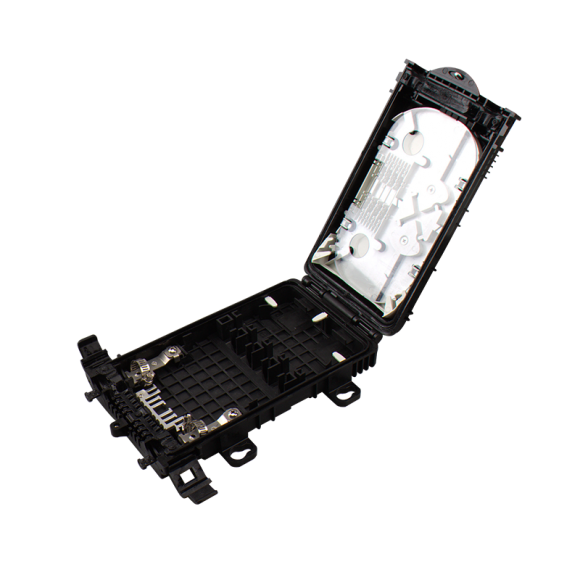

Fiber Optic Distribution Box FDB08E is designed for FTTH Network. It is of IP68 in waterproof use. You can install this fiber distribution box in Aerial, Duct and Underground. As the guidance of proper installation. The ambient temperature ranges from -40 to 65℃.
Specification
Specifications:
| Capacity | 8 cores | IP Grade | IP68 |
| Material | PP or PE | Dimensions | 240*155*50(mm) |
| Impact Test | IK 10 | Weight | 600g/each |
| Entrance/Exit | 2 ports/8 ports | Tray Capacity | 8 cores (single) 1 pcs |
| Cable Diameter | 05mm-021mm | Drop Cable | 02mm-06mm |
Buy Fiber Optical Distribution Box FDB08E from 8 cores as per your Requirements.
Free Fiber Distribution Box FOSCM8A Sample for Evaluation Quick Delivery on Trial Order & Bulk Order
Well Made Material for Distribution Box Smart Design and Easy to Install
100% Money Refund or Replacement with Quality Problem
| Package | Specification | Carton size(cm) | Capacity | N.W | Remarks |
| 1 | small size box | 25*16*6 | 1pcs | 0.6-1KG | Configuration as per weight |
| 2 | big size box | 65*49*33.5 | 40pcs | 40KG | Configuration as per weight |
| Main Component | ||||
No. | Name of components | Quantity | Usage | Remarks |
1 | Housing(bottom) | 1 set | Protecting fiber cable splices in whole | Internal diameter:330*120*110(mm) |
2 | Housing(cover) | 1 set | Protecting fiber cable splices in whole | Internal diameter:330*120*110(mm) |
3 | Insert plate | 2 pairs | Fixing the housing | 175*56*30(mm) |
4 | Fiber optic splice tray(FOST) | Max 6 trays (bunchy) or 4 trays (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy: 12,24(cores) Ribbon: 3 (pieces) |
5 | Foundation | 1 set | Fixing reinforced core of fiber cable and fiber optic splice tray(FOST) | |
6 | Seal fitting | 1 set | Sealing between FDB cover and FDB bottom | |
7 | Port plug | 6 pieces | Sealing empty ports | |
| 8 | Fixed bolt | 1 sets | Fixing the housing | |
| Main accessories and special tools | ||||
| 9 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 10 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 11 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 12 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 13 | Hanging hook | 1 set | For aerial use | |
| 14 | Earthing wire | 1 piece | Putting through between earthing device | |
| 15 | Abrasive cloth | 1 piece | Grind the fiber | |
| 16 | Labeling paper | 1 piece | Labeling fiber | |
| 17 | M8 Special wrench | 1 piece | Fixing bolts of housing and insert plate | |
| 18 | M10 Special wrench | 1 piece | tightening nut of reinforced core | |
| 19 | Instruction manual | 1 piece | standard installation | |

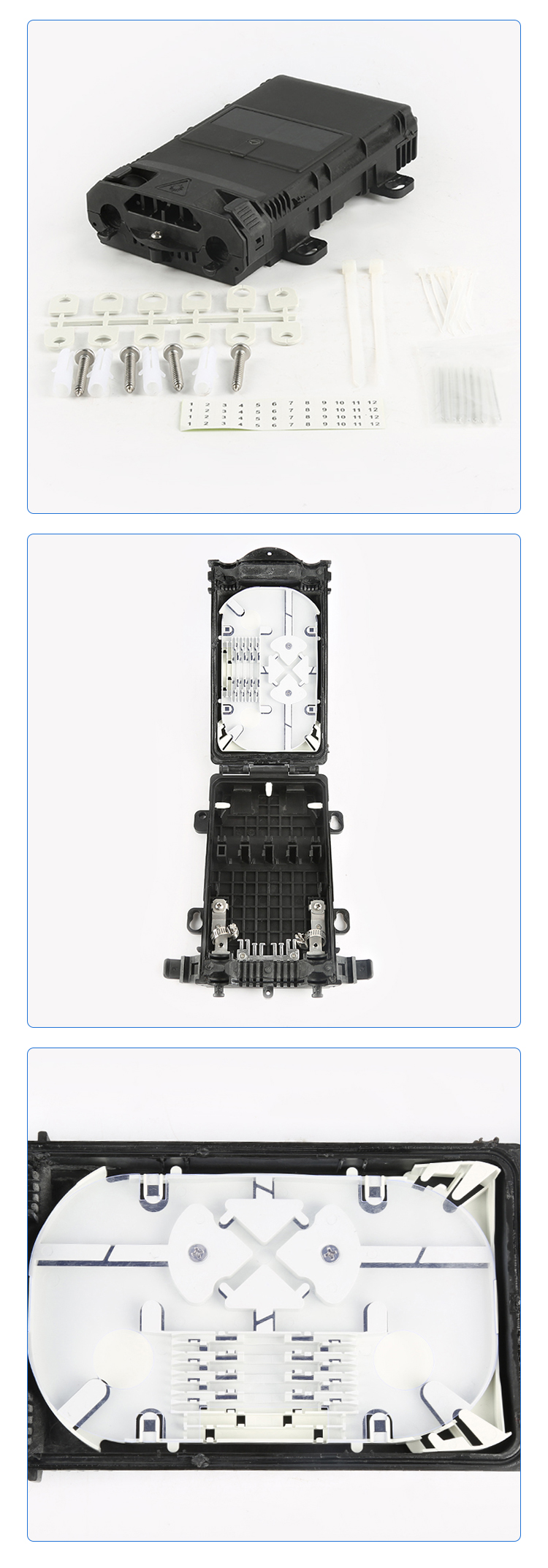

Image Details
