Basic Information

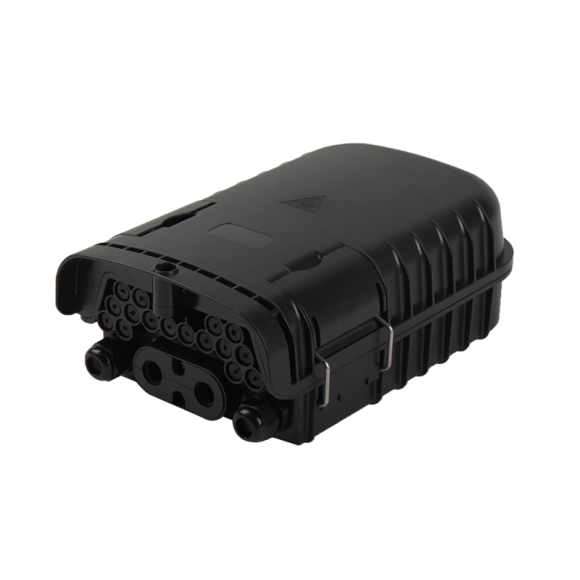

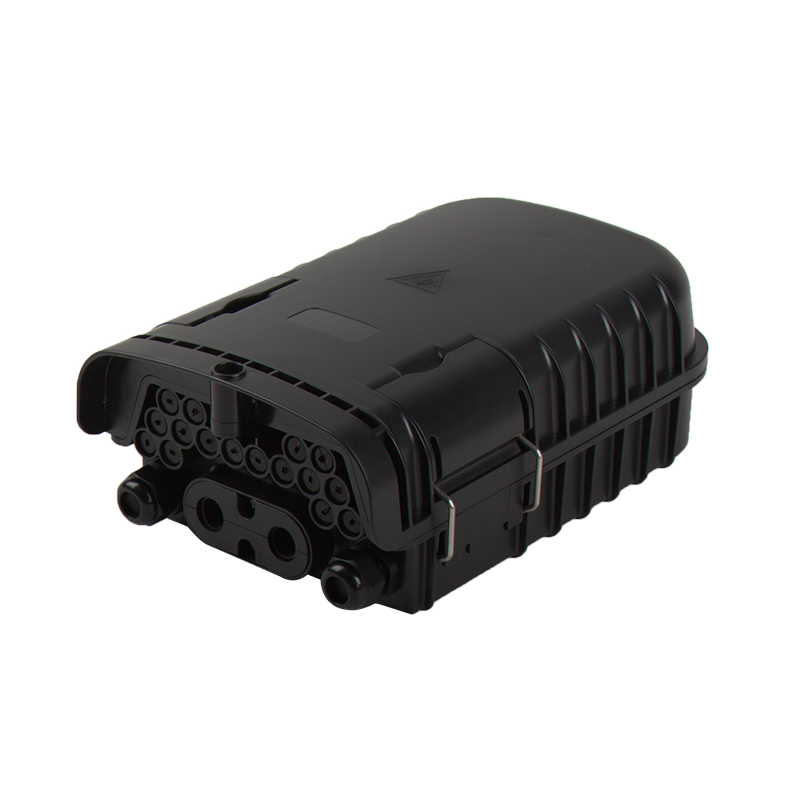

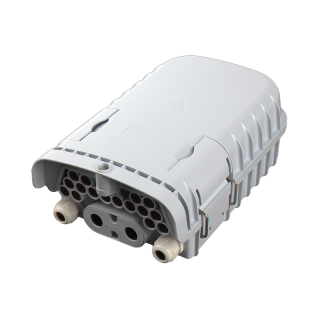

This 16 ports Outdoor Waterproof Wall Mounted FTTH Fiber Optical Splitter Distribution Box is designed with a hinge to connect base and cover.The inside can be installed with 1:16 PLC fiber optic splitters or manage 16 pcs fiber optic pigtails.
Specification
| Suitable Adapters | SC LC Fiber Adapter |
| Material | Premium PC/ABS material |
| Weight | 1420g |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 16 Port |
| Installation way | Wall Mount |
| Dimensions | 287mm x 172mm x 102mm |
| Applications | Wall Mountable |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 16pcs SC or 32pcs LC connectors |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Both Indoor / Outdoor Cable |
| Location | Wall or Pole Usually |
| Location of Use | Fiber to the building or FTTH |
| Lock Compatible | Screws |
| Number of Terminal Drops | 2 Cables |
| Number of Trays | 1 Splice Tray |
| Product Type | Wall fiber distribution |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 16 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 20pcs |
Image Details

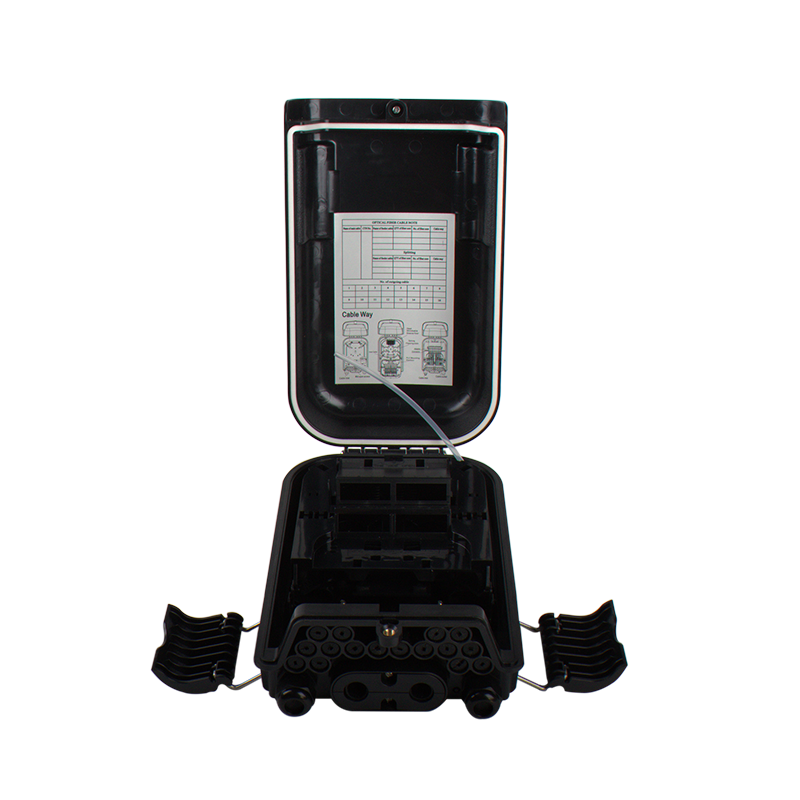

16 ports Outdoor Waterproof Wall Mounted FTTH Fiber Optical Splitter Distribution Box inside view

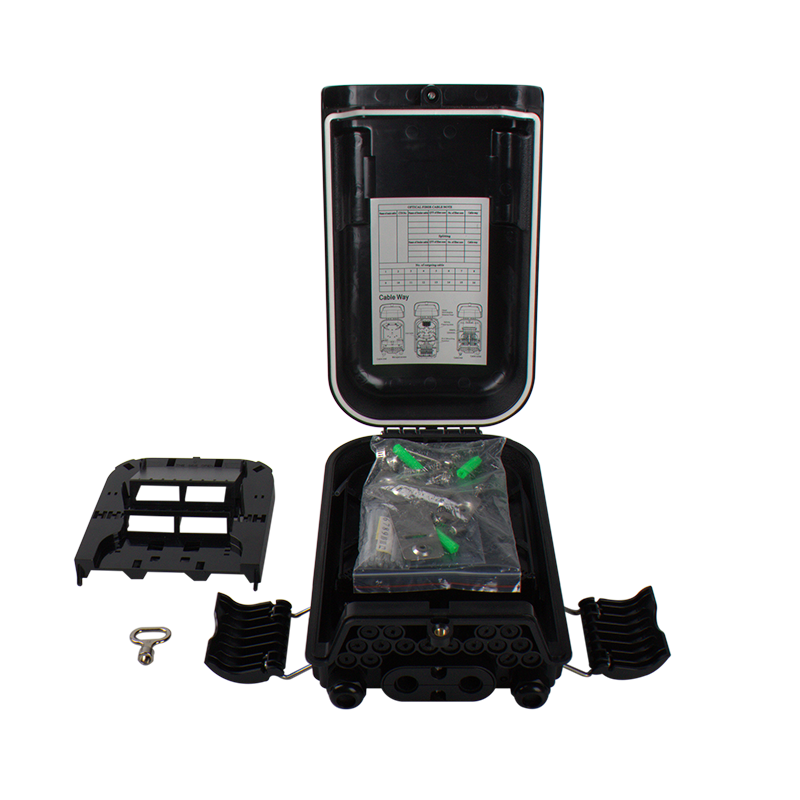

16 ports Outdoor Waterproof Wall Mounted FTTH Fiber Optical Splitter Distribution Box Splice tray and parts
16 ports Outdoor Waterproof Wall Mounted FTTH Fiber Optical Splitter Distribution Box Assemblied inside

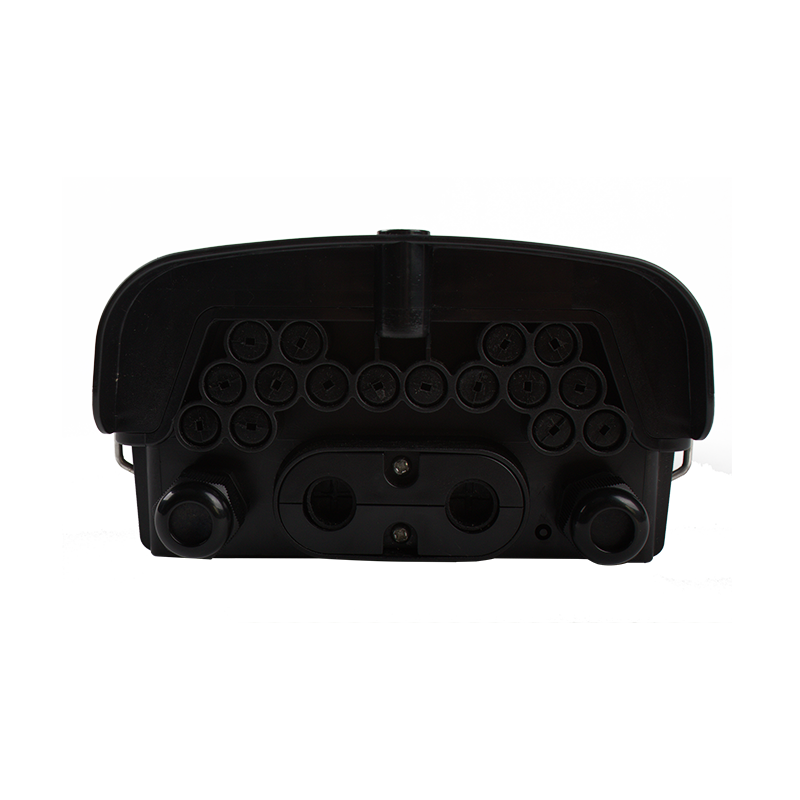

16 ports Outdoor Waterproof Wall Mounted FTTH Fiber Optical Splitter Distribution Box fiber port

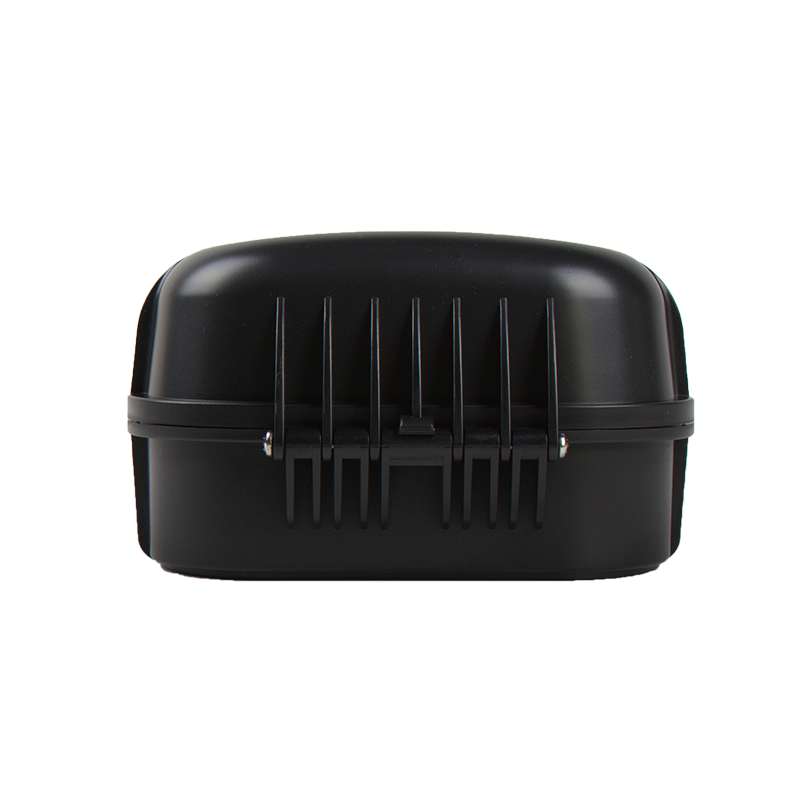

16 ports Outdoor Waterproof Wall Mounted FTTH Fiber Optical Splitter Distribution Box hinge
FAQs
What items are included in this 16 ports Outdoor Waterproof Wall Mounted FTTH Fiber Optical Splitter Distribution Box
A main parts (cover and base), 8 screws, 1pcs key and 16 pcs heat shrinkable sleeves.
