Basic Information

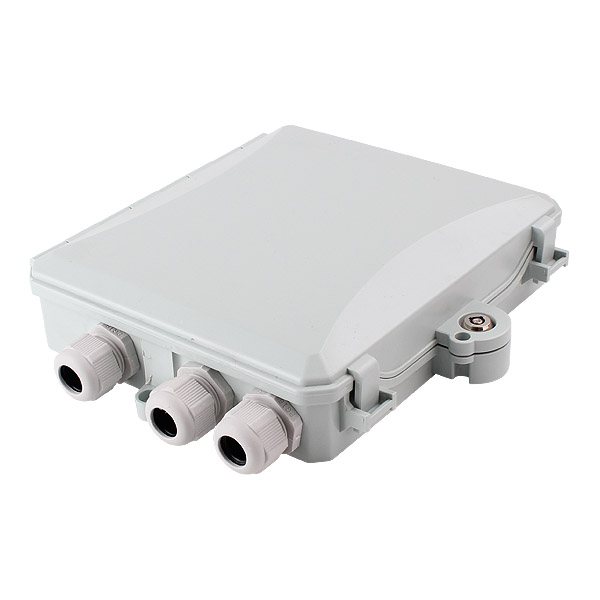

This 12 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure is used for managing indoor SC LC FC fiber optic cable and pigtails. used for wall mounted to connect indoor cable with drop cables.
Specification
| Suitable Adapters | SC LC Adapters |
| Material | Premium PC/ ABS material |
| Weight | 1220g |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 12 Small Ports + 2 Cable Ports |
| Installation way | Wall Mounted or Pole Mountable |
| Dimensions | 300mm*240mm*100mm/ |
| Applications | Wall mount or pole mount |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 12pcs SC |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Both Indoor / Outdoor Cable |
| Location | Wall, Pole |
| Location of Use | Wall mounted or Pole Mounted |
| Lock Compatible | Screws |
| Number of Terminal Drops | 12 Cables |
| Number of Trays | 1 Splice Tray |
| Product Type | Wall mounted Plastic Box |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 12 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 20pcs |
Image Details

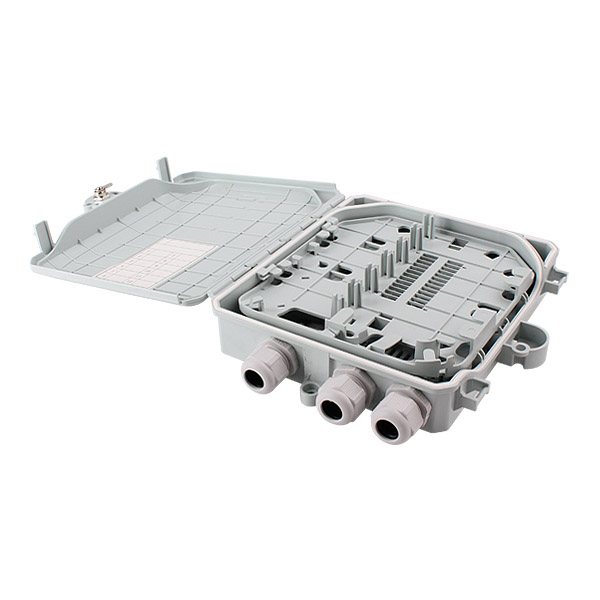

12 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure inside

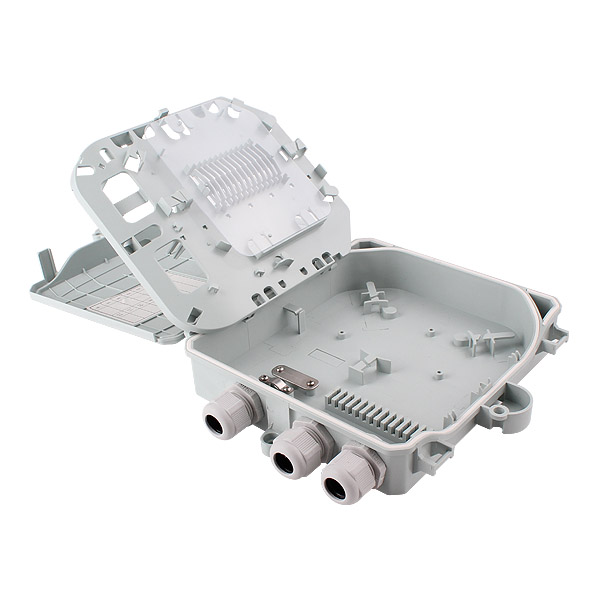

12 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure splice tray
FAQs
What items are included in this SC LC FC Fiber Wall Outlet Faceplate Socket Panel SP01A
A main parts (cover and base), 2 screws and 2 pcs heat shrinkable sleeves.
