1X8 LGX Cassette Type Fiber Optic Splitter

What Is 1X8 LGX Cassette Type Fiber Optic Splitter

1X8 LGX Cassette Type Fiber Optic Splitter PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar light-wave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
LGX Box PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it’s compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
Installation is simple using a variety of connector types or fusion splicing.

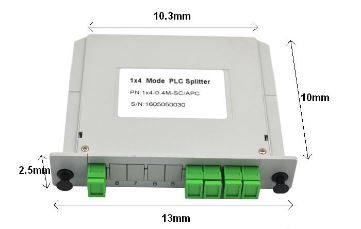

Drawing for LGX Box(make 1×4 LGX Splitter box as reference):

Noted: 1×2,1×4,1×8 LGX Box Type PLC Splitter has same size .
PLC Splitter LGX Box Features
Low insertion loss
Low Polarization Dependent Loss
Compact design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1260-1650nm
High Reliability and Stability
Telcordia GR-1209-CORE-2001 Compliant
Telcordia GR-1221-CORE-1999 Compliant
Application
Installed in Outdoor Cabinet and Floor Terminal Box
FTTH Fiber to the home
PON network
CATV
Fiber LAN

Advantages of PLC Splitters
The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength High spectral uniformity, can splitter the signals on average Compact structure, small volume The cost advantage is very obvious on many splitter channels

Parameters:

Type		1×2	1×4	1×8	1×16	1×32	1×64
Operating wavelength（nm）		1260-1650
Insertion loss (dB)	Typical	3.6	7.2	10.5	13.5	17	19.5
	Maximum	4	7.5	11	14	17.2	21
Uniformity (dB)	Typical	0.4	0.5	0.6	1	1	2
	Maximum	0.6	0.6	0.8	1.2	1.5	2.5
Polarization Dependent Loss (dB)	Typical	0.1	0.1	0.15	0.2	0.2	0.2
	Maximum	0.15	0.15	0.25	0.3	0.3	0.3
Wavelength dependent loss (dB)	Typical	0.1	0.1	0.15	0.3	0.3	0.3
	Maximum	0.2	0.3	0.3	0.5	0.5	0.5
Return loss (dB)	Minimum	55/50
Directivity (dB)	Minimum	55
Operating temperature (℃)		-20 to 85
Storage temperature (℃)		-40 to 85
Optical fiber type		SMF-28 Or customer required
Optical fiber length (m)		1.2 or customize

Order Information:

Input Channel Number	Input Optical Fiber Type	Output Channel Number	Output Optical Fiber Type	Connector Type In/Out	Fiber Length	Package Type
1=1 channel 2=2 channel	0=250um bare fiber 1=900um loose tube 2=2.0mmcable 3=3.0mmcable	02=2 channel 04=4 channel 08=8 channel 16=16 channel 32=32 channel 64=64 channel	0=250um bare fiber 1=900um loose tube 2=2.0mmcable 3=3.0mmcable	0=no connector 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=LC/PC 6=LC/APC S=Specify	10=1.0 meter 15=1.5 Meter 20=2.0 Meter 30=3.0 Meter	1=S.S Tube 1 2=S.S Tube 2 3=S.S Tube 3 4=ABS Box 5=LGX Box 6=19 Inch Rack

sfiberoptic.Com provides a various of 1xN and 2xN PLC splitters in LGX Box type. The PLC splitters in Mini plug-in LGX Box with its compact structure and small volume, are very convenient for use and can be installed in many places, such as: 19 inch racks, cross connect cabinet and some other devices. For more information about Fiber PLC Splitter in Mini plug-in LGX Box Type, please contact us

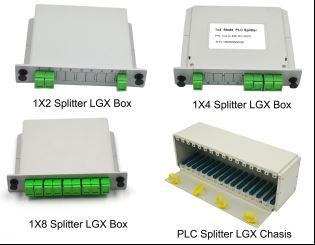

Picture show:

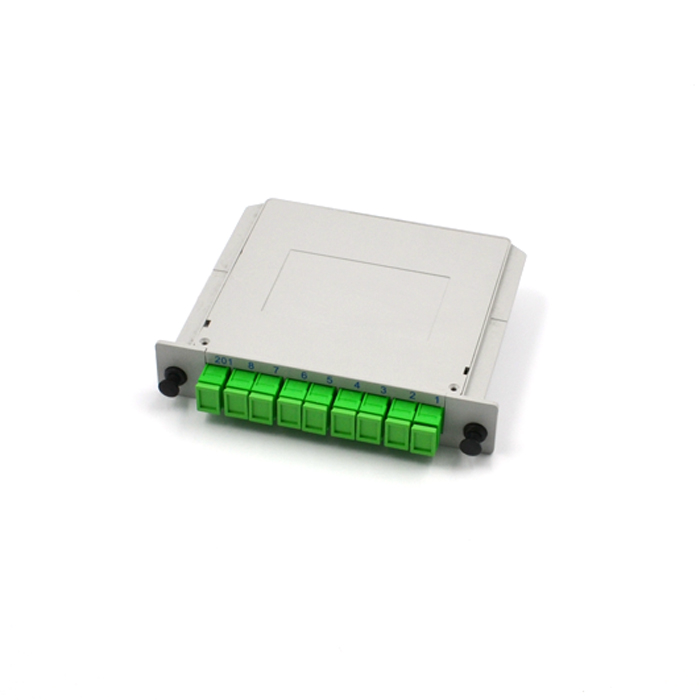

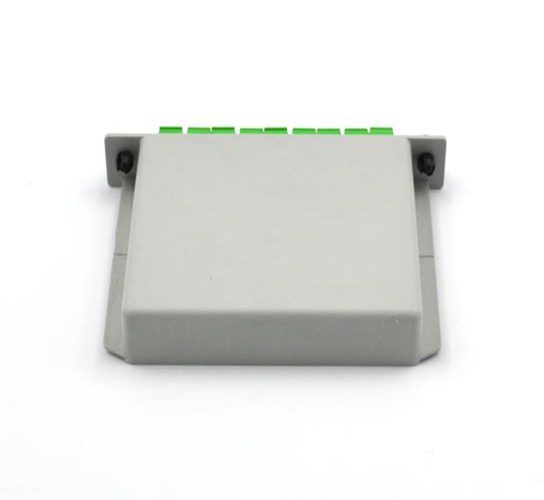

1X8 PLC Splitter picture:

sfiberoptic.Com is one of the largest and best 1×8 lgx cassette type fiber optic splitter manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized 1×8 lgx cassette type fiber optic splitter in stock with our factory. Also, free sample is also available if necessary.
