What is 4K HDMI Uncompressed Optic Fiber Extender & USB 2.0 KVM
4K HDMI Uncompressed Optic Fiber Extender & USB 2.0 KVM Uncompressed Real 4K, Support video resolution max up to [email protected](4:2:0), [email protected], [email protected], and 1080P [email protected] Support 3D. Transmits HDMI signals up to 10km(6.2 miles) through a single LC/LC siglemode fiber optic cable.Equip with two pieces of 10G SFP Optical module.Support KVM remote control .
Description 4K HDMI Uncompressed Optic Fiber Extender & USB 2.0 KVM:
The devices is high quality HDMI Extenders which provides extension of 4K*2K HDMI long distances through one fiber optic cable, Support resolution up to 4K*2K.The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
1. Uncompressed HD HDMI transmission,Support video resolution max up to [email protected](4:2:0), [email protected], [email protected], and 1080P [email protected] Support 3D.
2. Transmits HDMI signals up to 10km(6.2 miles) through a single LC/LC siglemode fiber optic cable. Compatible with mutlimode fiber cable, up to 300meters.
3. Equip with two pieces of 10G SFP Optical module.
4. Support KVM USB Keyboard and mouse for remote control.
5. Support up to 7.1 channel and LPCM, Dolby TrueHD, DTS-HD Master Audio.
6. Compliance with HDMI 1.4 standard.
7. High compatibility, can auto-match source and display device.
8. Built-in automatic adjustment system, make the image smooth, clear and stable.
9. Simple to install, plug and play.
Specifications:
Parameter | Description | |
Video | Standards | HDMI 1.4 |
| Resolution range | Up to [email protected](4:2:0), [email protected], [email protected], and 1080P [email protected] | |
| Connector | HDMI-A Interface | |
Optical fiber | Interface | 10G SFP module – single LC |
| Fiber type | Singlemode, also compatible with Multi-mode | |
| Interface bandwidth | 10Gbps | |
| Transmission distance | Single-mode fiber: 10km(0.62mile), Compatible with Multi- mode fiber: 0-300Meters. | |
Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 5W | |
| Temperature | Operating: -5℃ - +70℃ | |
| Humidity | Operating: 5% - 90% | |
| Dimension | 95*70*25mm | |
| The warranty | 1 year free warranty | |
| Port name | Description |
| HDMI IN/OUT | HDMI signal input/output |
| DC5V | Power adapter socket |
| TX/ RX | TX: Transmitter RX: Receiver |
| FIBER | SFP model —single LC connector |
| LED indicator | Description |
| LINK | TX: turn on when connect to video. RX: when connect to fiber optic. |
| PWR | Power light. |

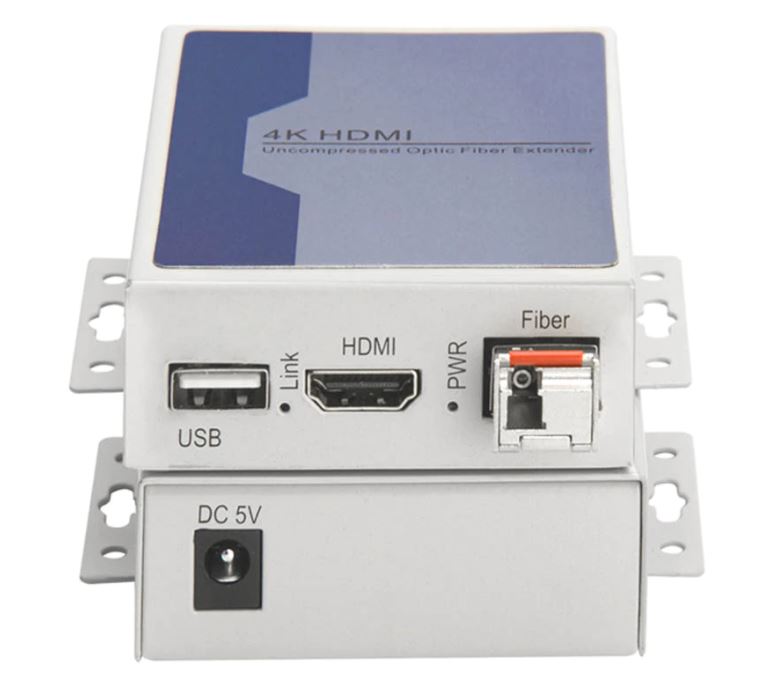

4K HDMI Uncompressed Optic Fiber Extender & USB 2 0 KVM B

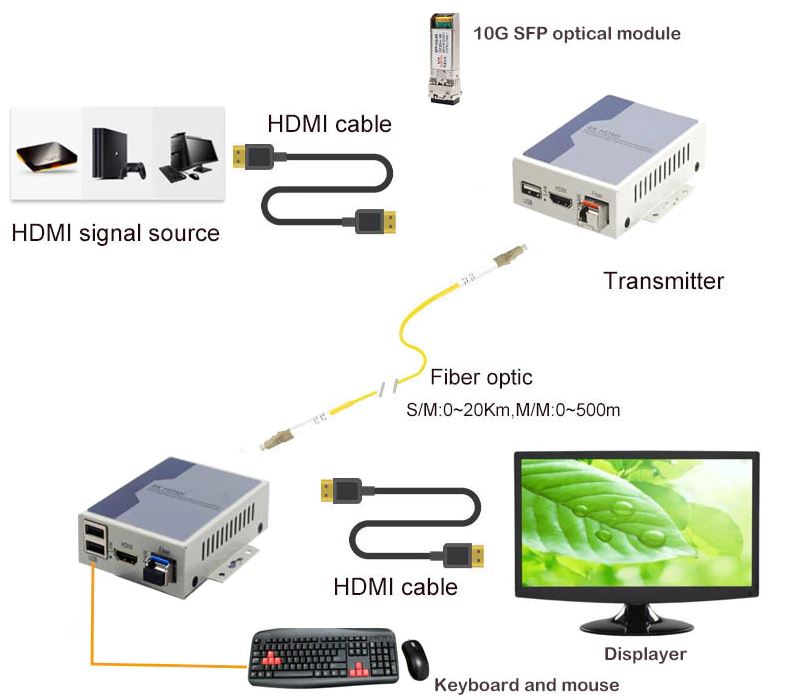

4K HDMI Uncompressed Optic Fiber Extender & USB 2 0 KVM shema

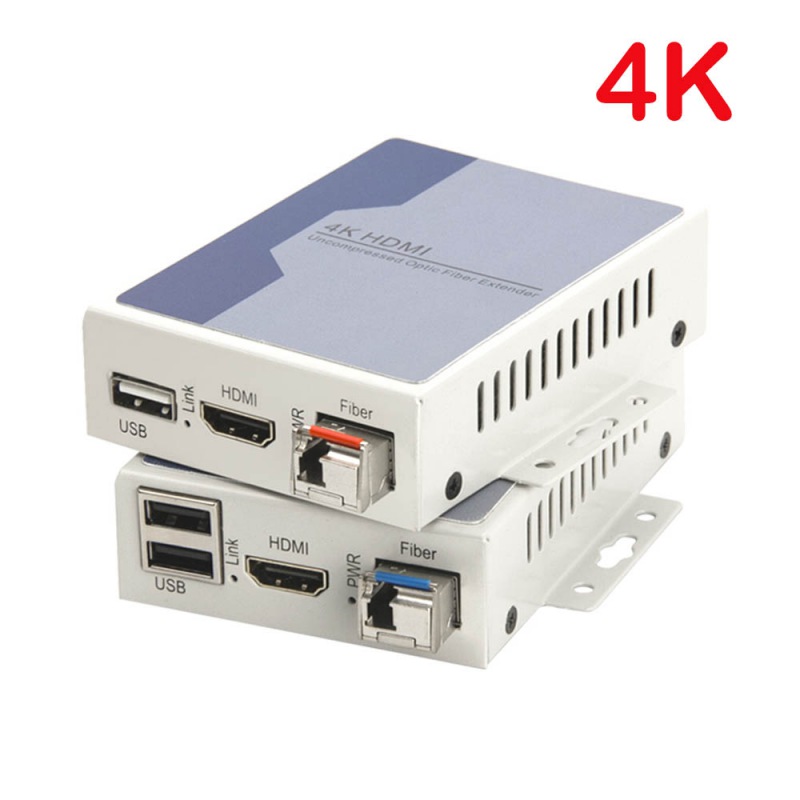

4K HDMI Uncompressed Optic Fiber Extender & USB 2 0 KVM
4Kx2K support up to 3840×2160 30Hz
Uncompressed lossles transmition vs compressed transmition imagePackage content:
1 x HDMI extenders Transmitter
1 x HDMI extenders Receiver
2 x 10Gbps SFP module
1 x Power adapter (US/EU/UK/AU optional)
1 x User manual
