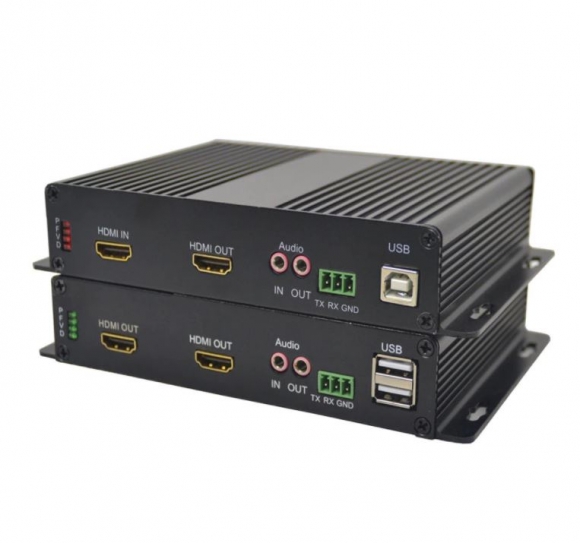

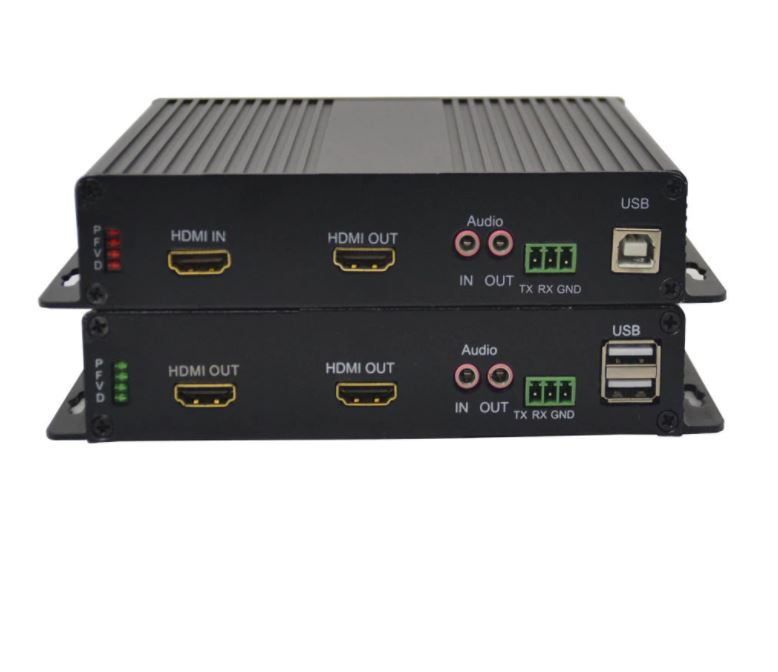

HDMI Fiber extender 1080p Bidirecitonal stereo 3.5mm audio in out and with KVM & RS232

What is HDMI Fiber extender 1080p Bidirecitonal stereo 3.5mm audio in out and with KVM & RS232

HDMI Fiber Extender, Uncompressed HD [email protected] HDMI over one Fiber optic Media Converters, with Bidirecitonal stereo 3.5mm audio in/out , and with KVM and RS232 data is optional,Lossless,Universal singlmode fiber Up to 20Km(12.4mi) ,SM 40Km/60Km/80Km/100Km is available ,and compatible with multimode fiber up to 500m (0.31mi). FC optical interface , LC/SC/ST is optional. Contace us if need.

Production function:

1 x HDMI in and loop out

1 x bi-directional stereo 3.5mm audio in/out.

1x KVM USB keyboard and mouse (optional)

1x RS-232 data (optional)

FC optical interface (LC/SC/ST optional), S/M:0-20Km, M/M:0-500M

Features:

1. Adopts uncompressed digital HD video and high-speed digital optical fiber transmission advanced technology, with strong anti-interferance performance, ensure the signal lossless and super-stable.
2. Long-distance transmission of HDMI video and audio signals through one optical fiber, Single-mode fiber up to 20km(12.4mi),compatible for multimode fiber up to 500m(0.31mi). S/M:40Km/60Km/80Km/100Km is available, contact us if need.
3. The resolution can reach up to [email protected], compatible for backward.
4. Comply with HDMI1.3 standard protocol.
5. Can automatically identify and configure various display modes, Built-in automatic equalization system, the picture is smooth, clear and stable;
6. Built-in ESD electrostatic protection circuit, comprehensive protection system safety;
7. Support KVM USB keyboard and mouse transmission;
8. Support bidirectional audio standard 3.5mm mini jack in/out.
9. Support RS232 data.
10. Simple to install, no need drive, Plug and Play. Mean Time between failures: More than 30,000 hours.

Specification:

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	10.2Gbps
	Resolution range	Up to [email protected]
	Connector	Female HDMI
	Impedance	100Ω

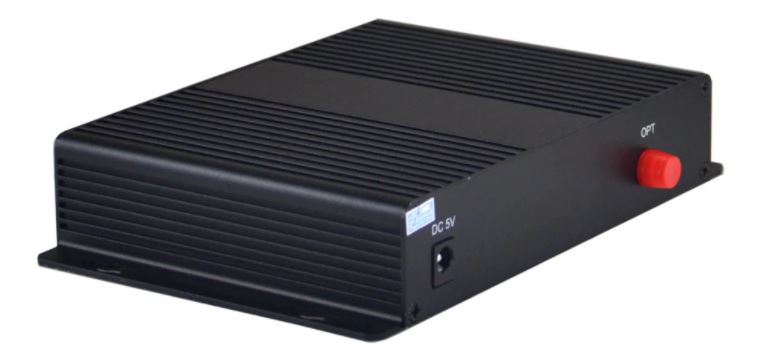

Optical fiber	Interface	FC connector (LC/SC/ST optional)
	Fiber type	Universal Single Mode and Multimode
	Wavelength	1310nm, 1510nm (S/M)
	Transmit power	≥-9.5dBm
USB	USB female,Standard	Support USB1.0, KVM keyboard and mouse only.
Other	Power supply	The power adapter: DC 5V/2A (US/EU/UK/AU standard available)
	Power dissipation	MAX 5W
	Temperature	Operating: -5- +70°c
	Humidity	Operating: 5% - 90%

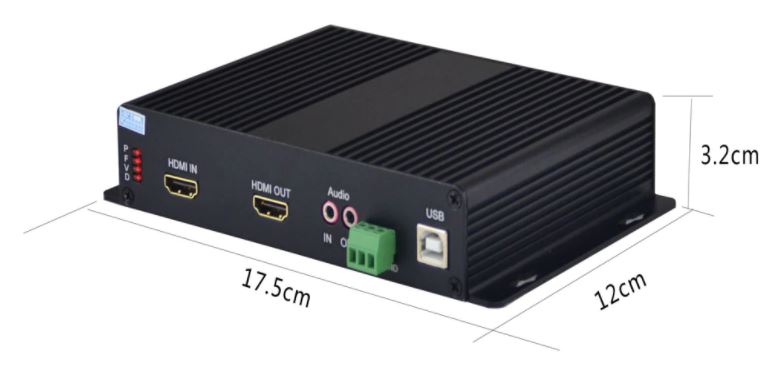

	Dimension	175*120*32mm (LxWxH)
	The warranty	2 years free warranty

Package contents:

1x HDMI transmitter
1x HDMI receiver
1x FC/FC 3m singlemode fiber patch cord
2 x power DC5V/2A(default ship US, EU/UK/AU is available)
1 x User manual

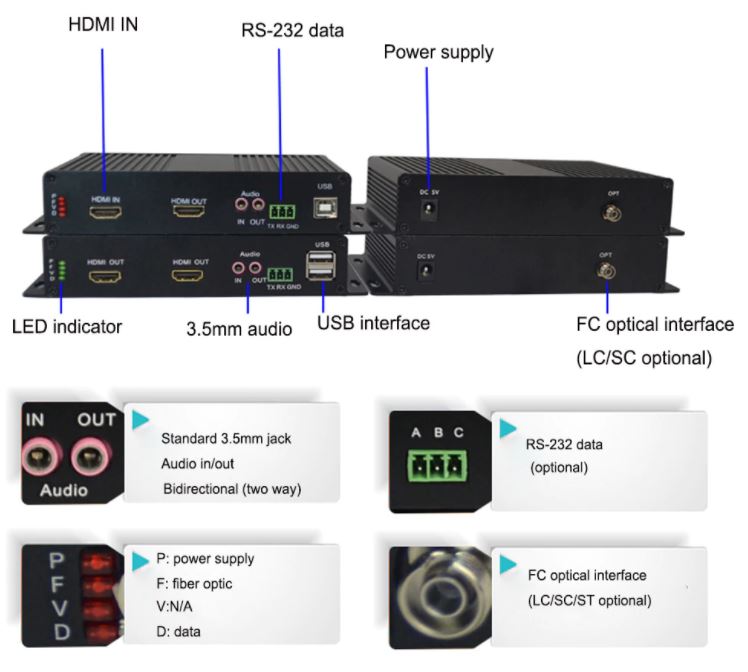

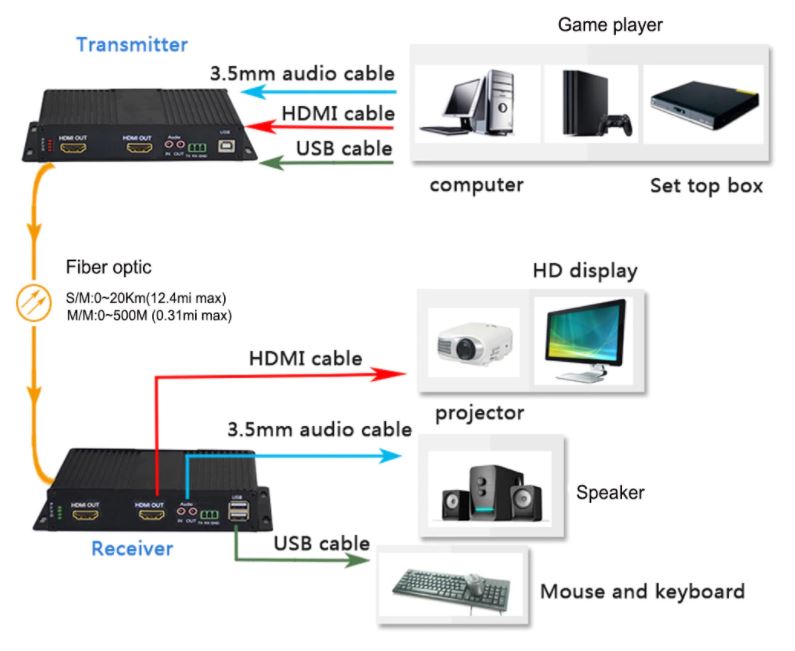

HDMI Fiber extender 1080p Bidirecitonal stereo 3.5mm audio in out and with KVM & RS232HDMI Fiber extender 1080p Bidirecitonal stereo 3.5mm audio in out and with KVM & RS232 sizeHDMI Fiber extender 1080p Bidirecitonal stereo 3.5mm audio in out and with KVM & RS232 portsHDMI Fiber extender 1080p Bidirecitonal stereo 3.5mm audio in out and with KVM & RS232 fiberHDMI Fiber extender 1080p Bidirecitonal stereo 3.5mm audio in out and with KVM & RS232 Diagram
