What is HDMI Fiber Optic Extenders transmit 1080p Uncompressed with Loop Out
HDMI Fiber Optic Extenders transmit 1080p Uncompressed with Loop Out signal over a single singlemode optical fiber cable up to 20 km. the highest resolution supported is [email protected] with a local loop out. High definition image output,Lossless. Super-stability .14 solts Rack Mountable. ODM &OEM,Custom made.
Features:
High definition image output, HDMI signal transmission no compression, super-stability, long working life.
with one HDMI local loop out on transmitter.

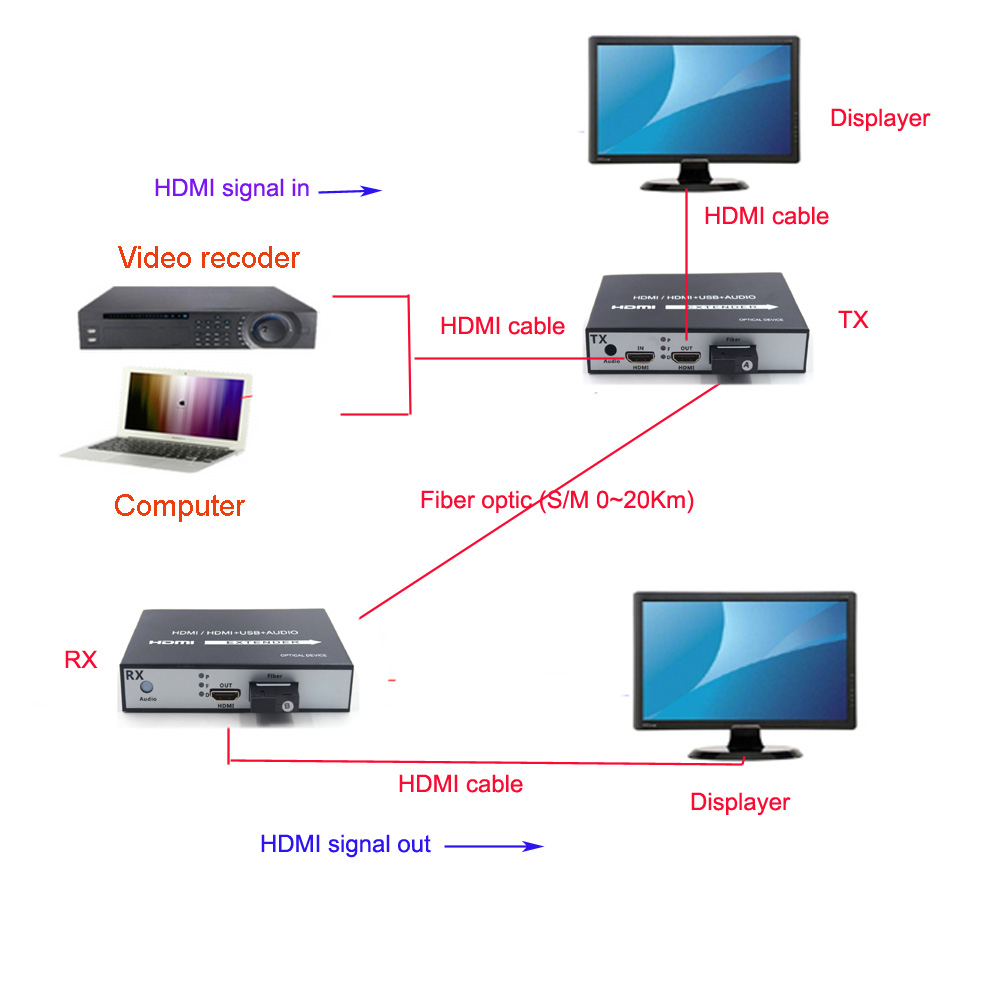

Transmits HDMI video and audio signals up to 20km over one single mode fiber optic cable, 0-300m over multimode fiber.
Support video resolution up to 1920*[email protected]
Support TCP/IP;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
No need any drive.
Simple to install, plug and play
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 10.2Gbps | |
Resolution range | Up to [email protected] | |
Connector | Female HDMI | |
Impedance | 100Ω | |
Optical fiber | Interface | SC connector |
Fiber type | Single Mode /Multimode | |
Wavelength | S/M 1310nm, 1510nm | |
Transmit power | ≥-9.5dBm | |
Transmission distance | Standard: 0-20km of singlemode fiber, 0-300meters of mulitmode fiber | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5- +70°c | |
Humidity | Operating: 5% - 90% | |

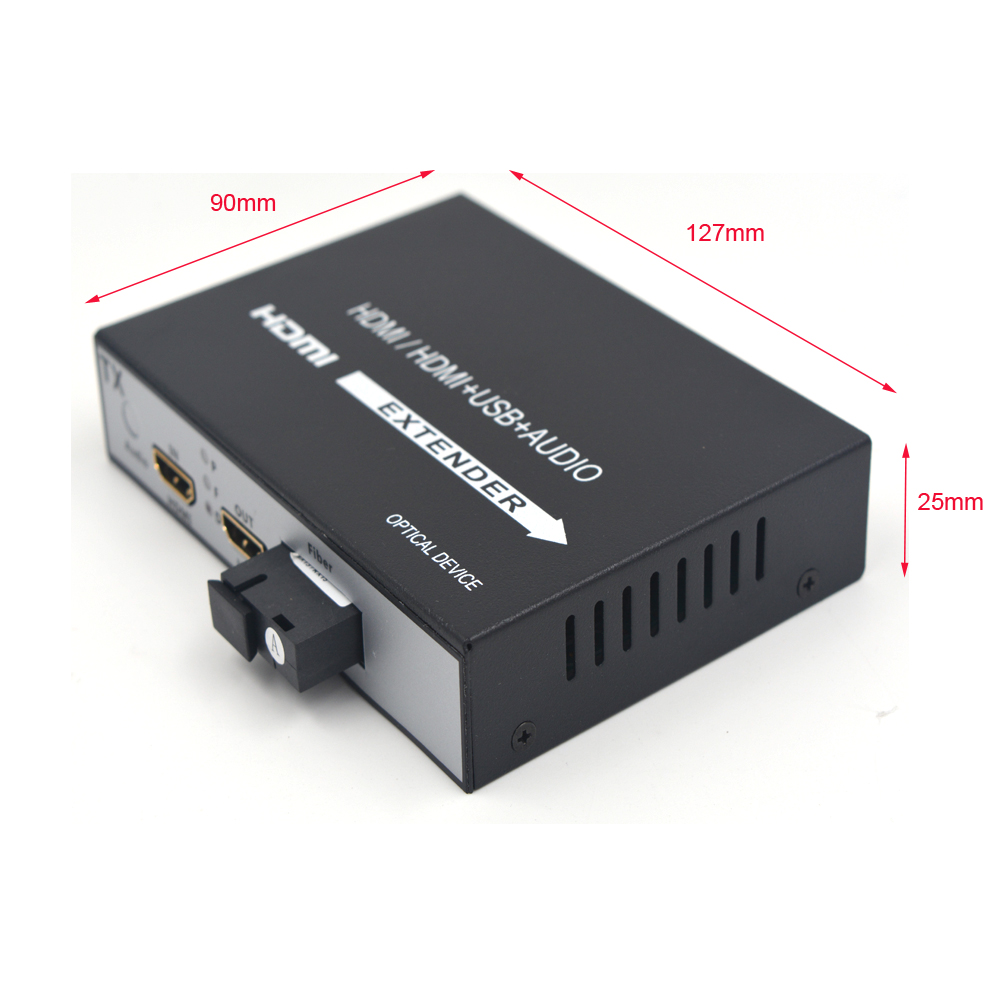

Dimension | ||
The warranty | 2 years free warranty | |
Package contents:
1 x HDMI Transmitter (TX)
1x HDMI Receiver (RX)
1x 3m SC/SC singlemode patch cord fiber
2 x power DC5V/2A(default ship US, EU/UK/AU is available)
1 x User manual

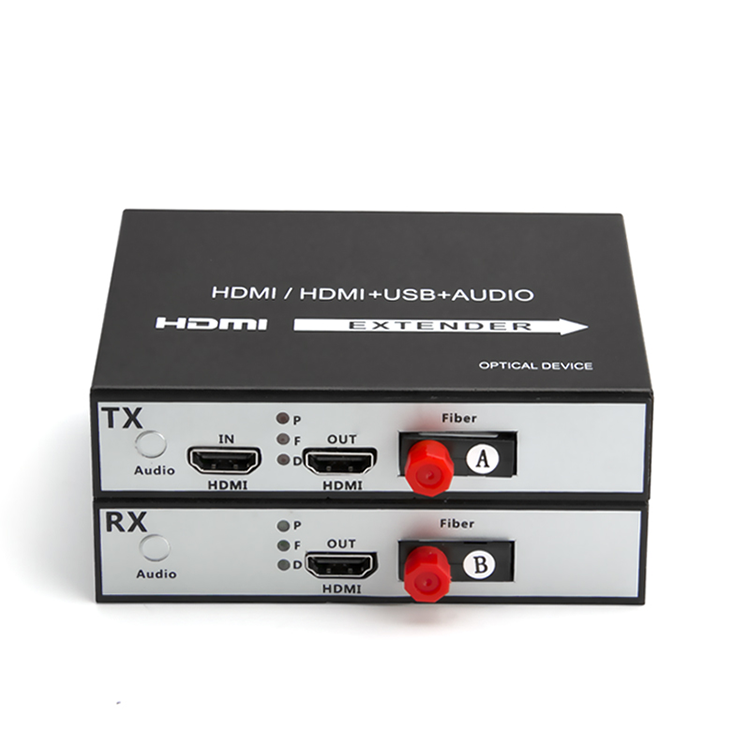

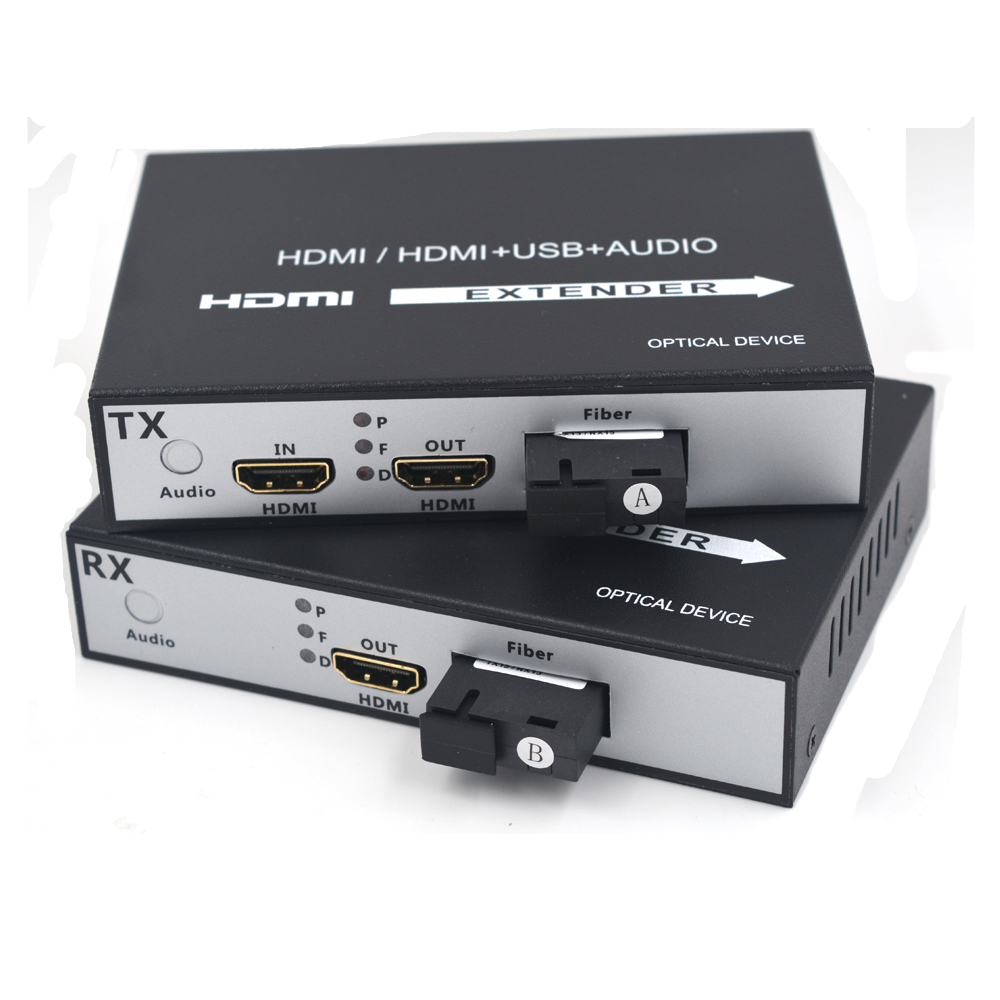

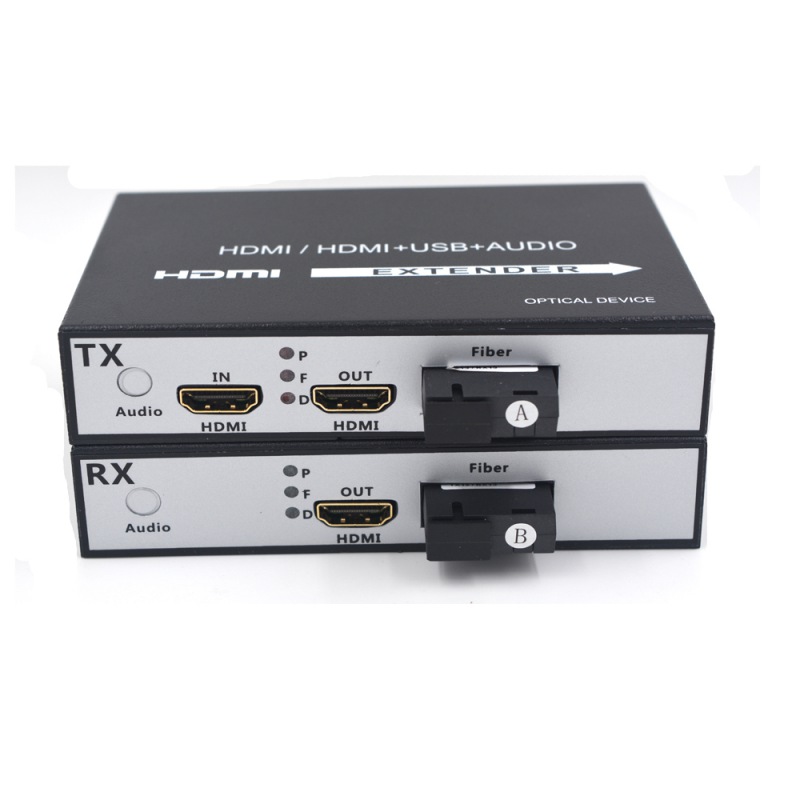

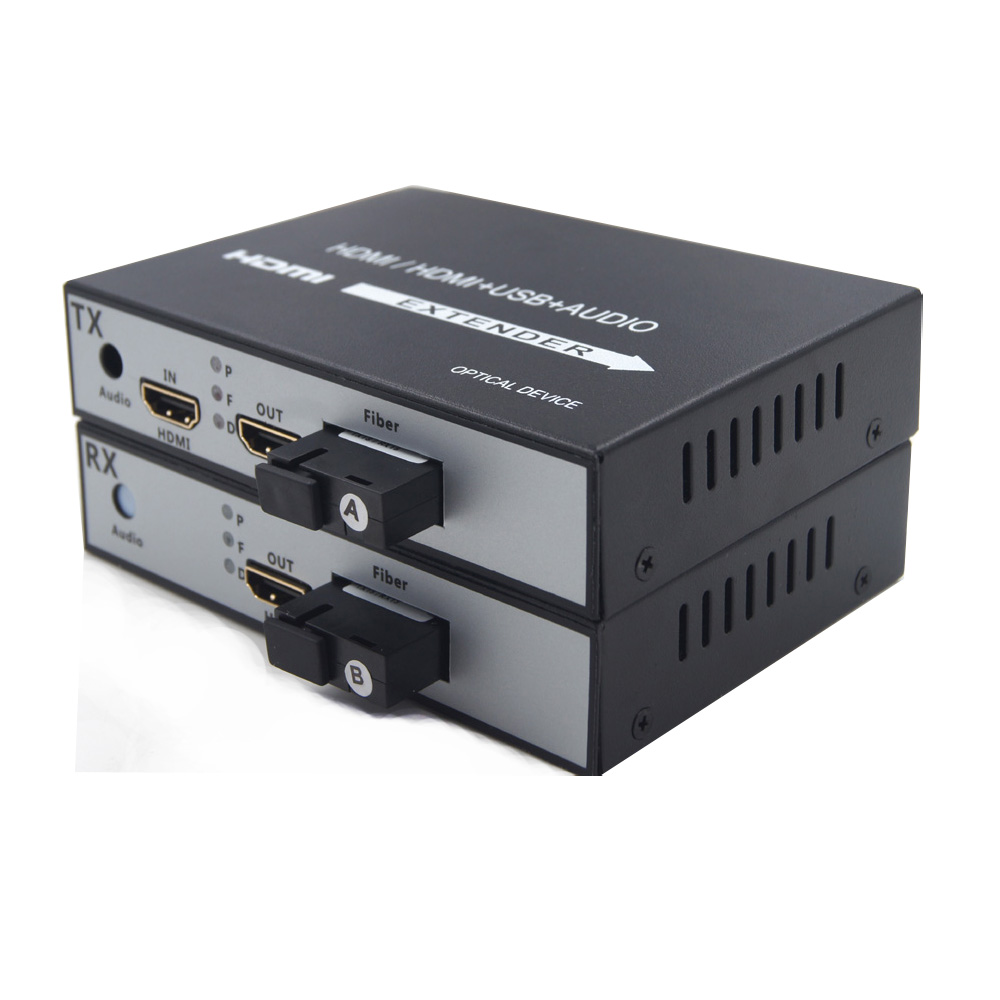

HDMI Fiber Optic Extenders transmit 1080p Uncompressed Loop Out
HDMI Fiber Optic Extenders transmit 1080p Uncompressed Loop Out

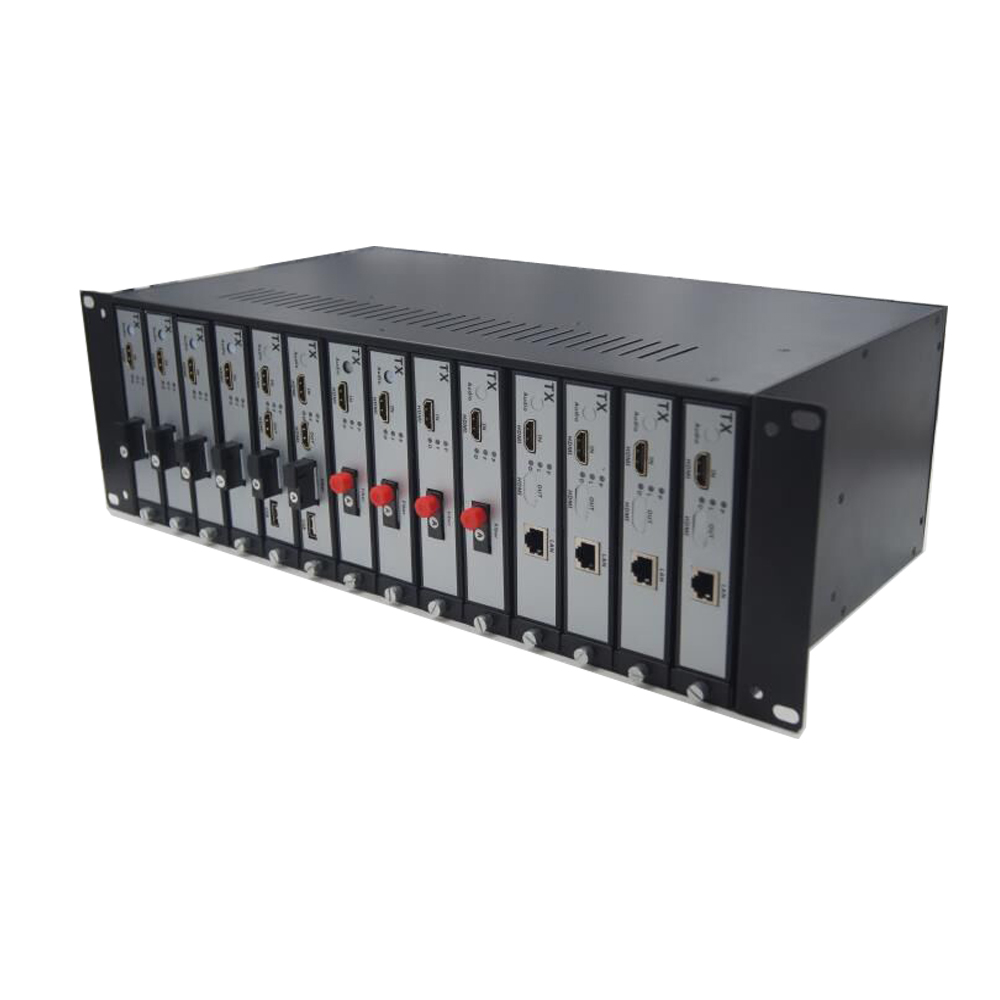

HDMI Fiber Optic Extenders transmit 1080p Uncompressed Loop Out Rack

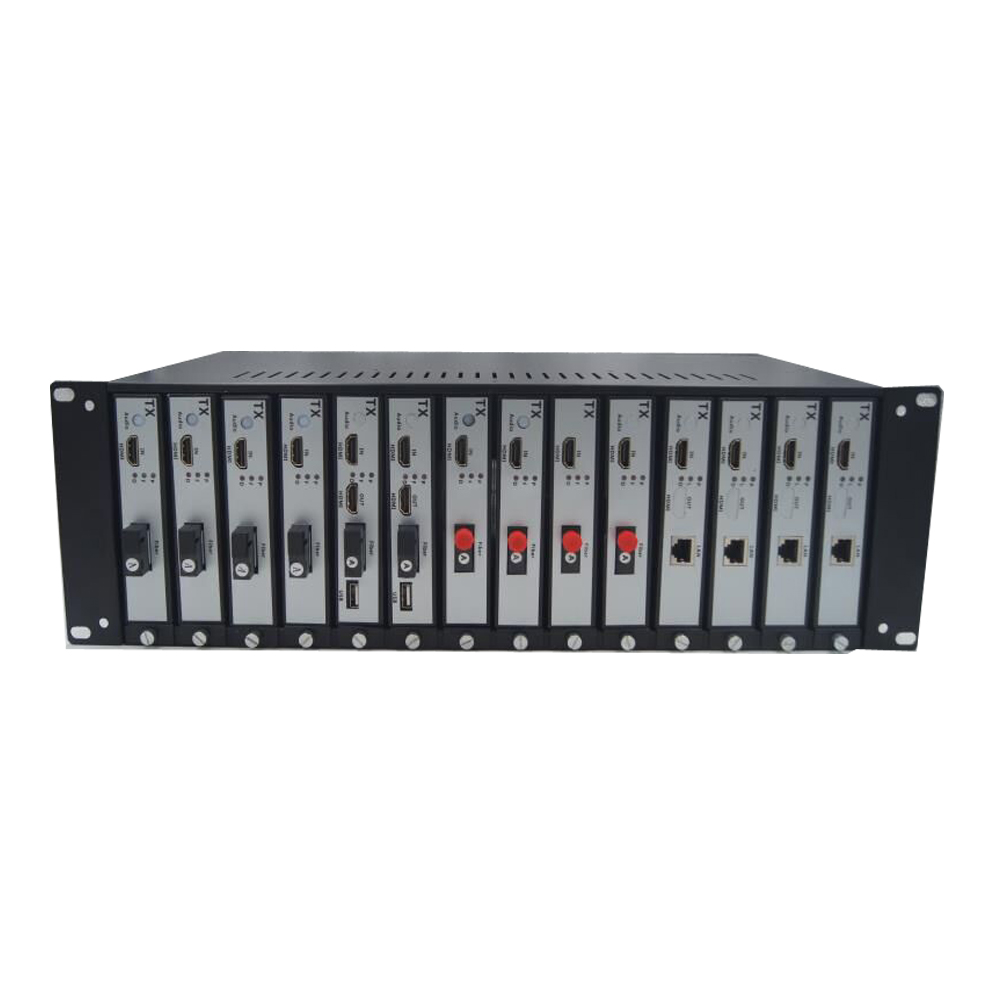

HDMI Fiber Optic Extenders transmit 1080p Uncompressed Loop Out Rack D

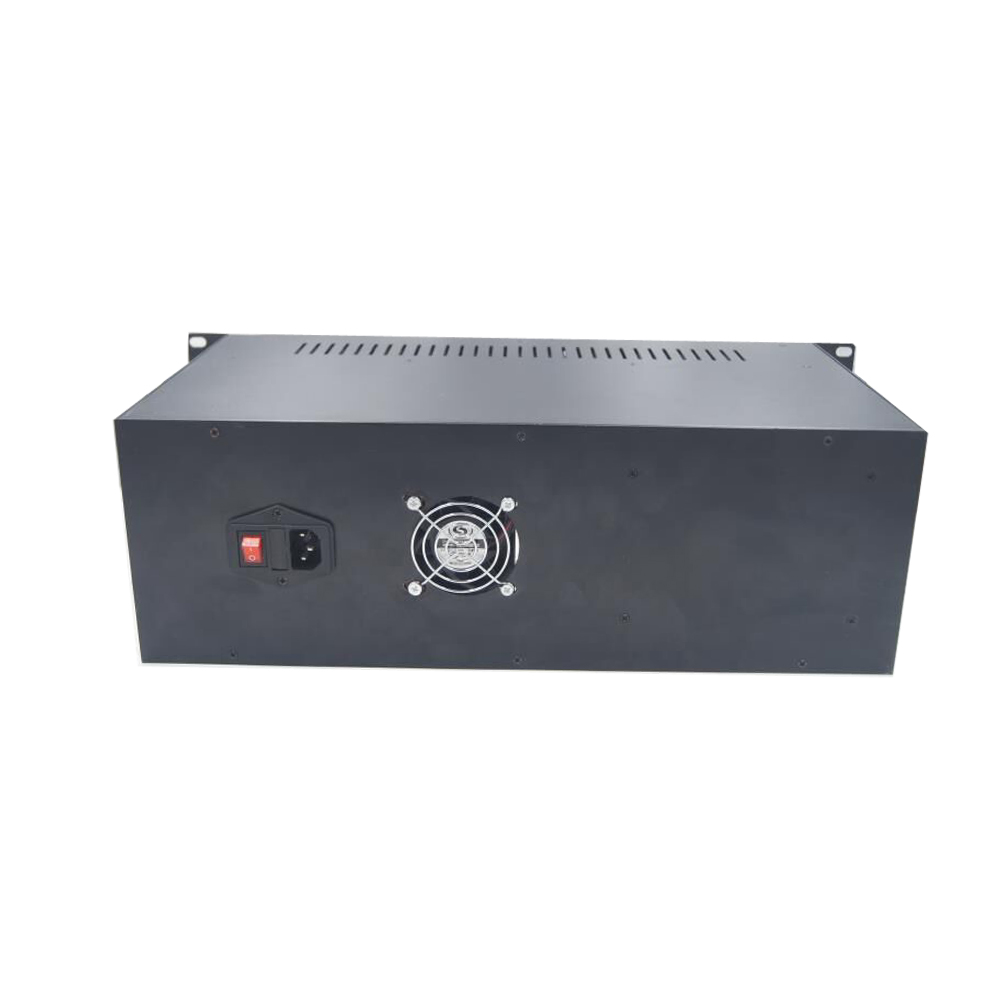

HDMI Fiber Optic Extenders transmit 1080p Uncompressed Loop Out Rack

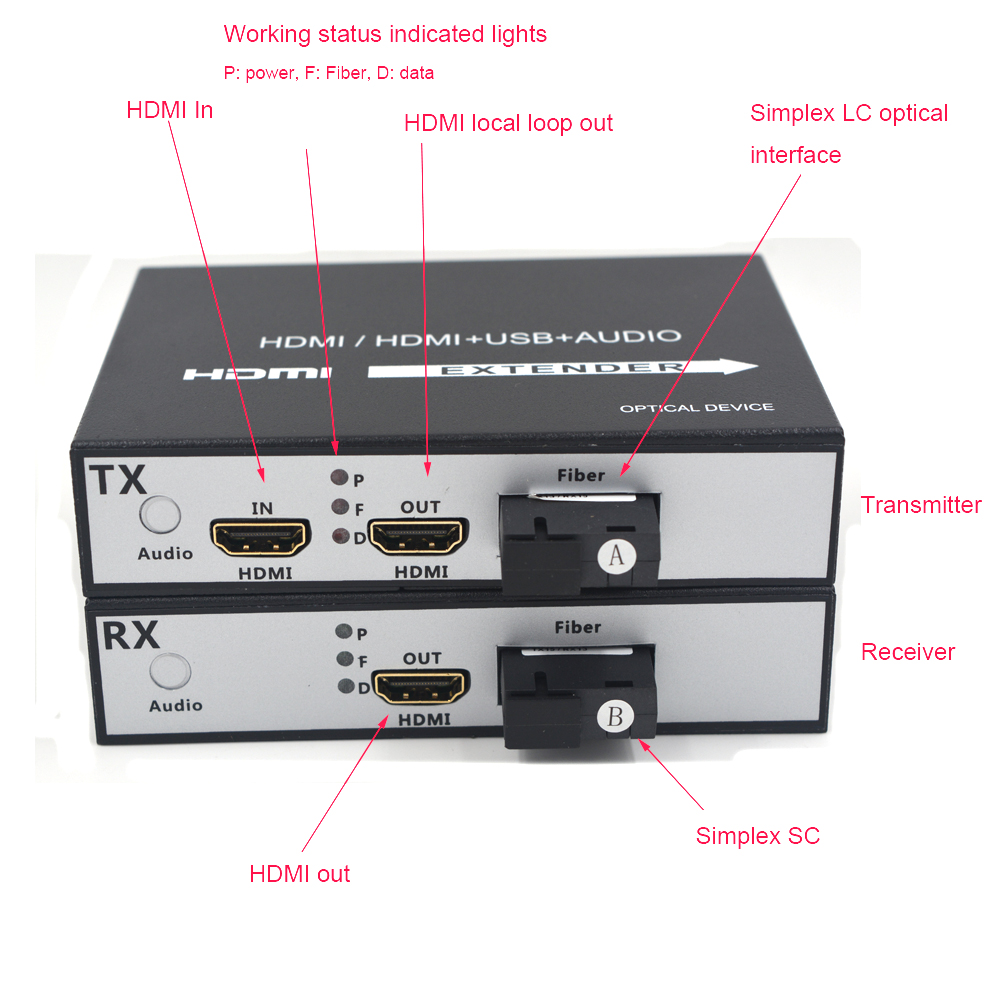

HDMI Fiber Optic Extenders transmit 1080p Uncompressed Loop Out part

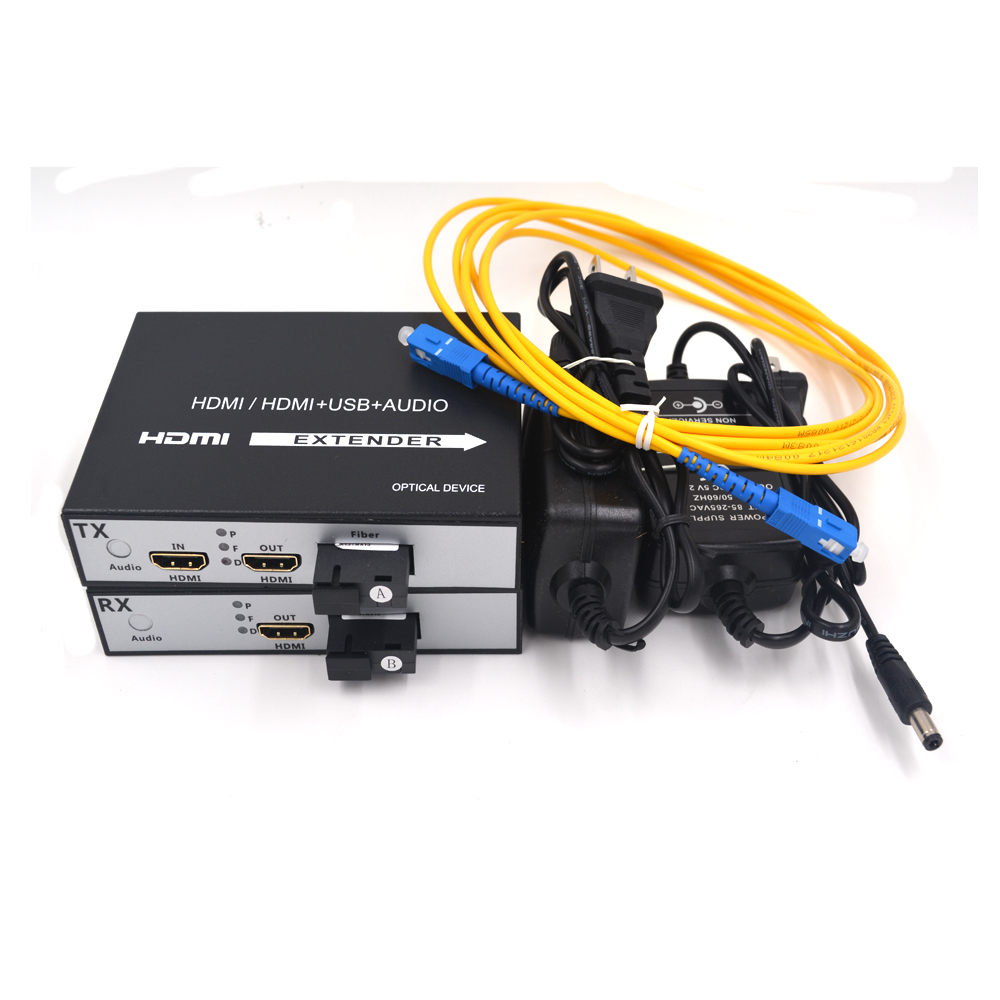

HDMI Fiber Optic Extenders transmit 1080p Uncompressed Loop Out Pack

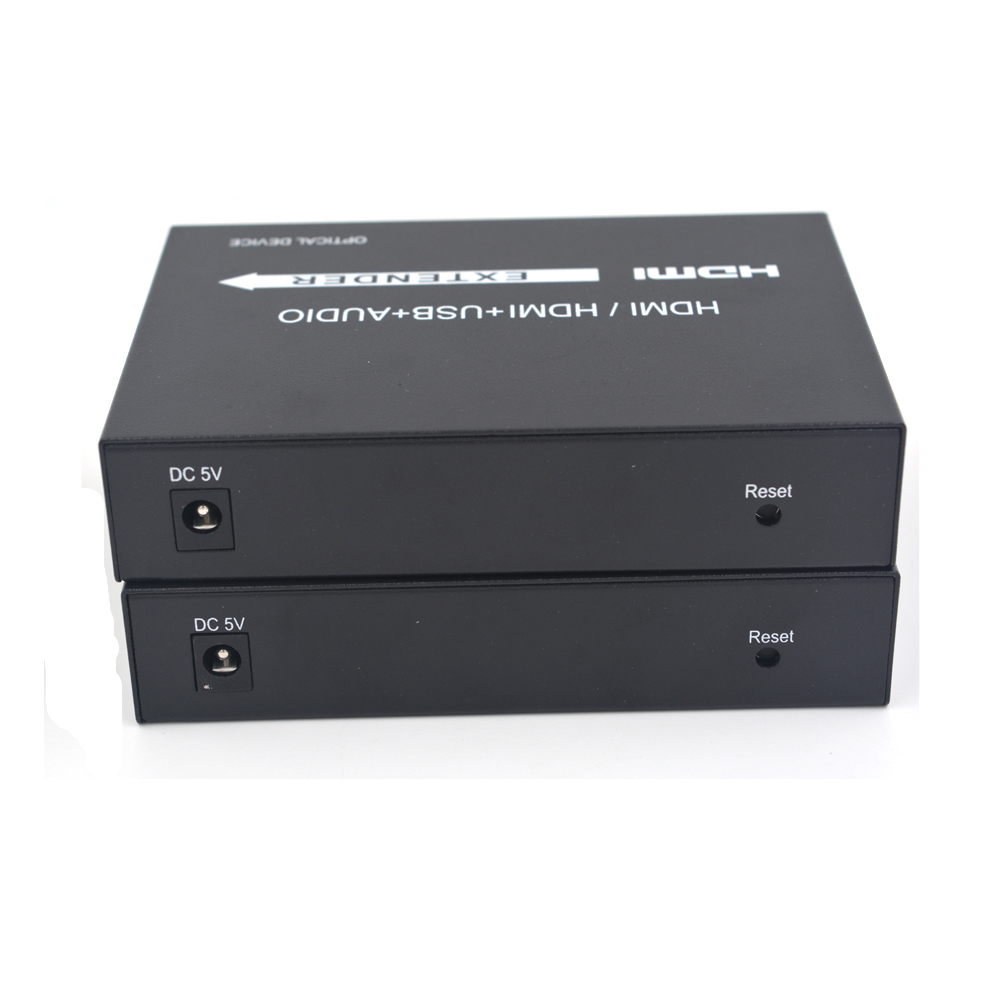

HDMI Fiber Optic Extenders transmit 1080p Uncompressed Loop Out Back
HDMI Fiber Optic Extenders transmit 1080p Uncompressed Loop Out
HDMI Fiber Optic Extenders transmit 1080p Uncompressed Loop Out

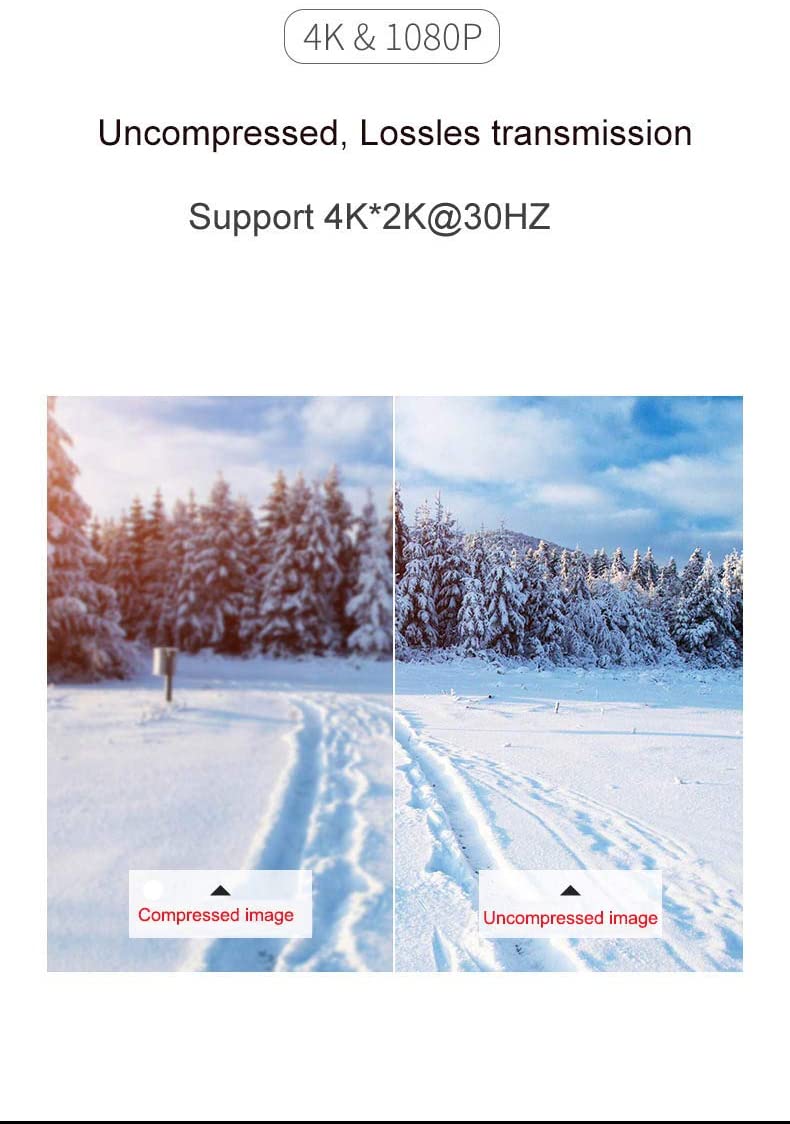

Uncompressed lossles transmition vs compressed transmition image
