4K HDMI 3D fiber optic Extenders 4Kx2K EDID RS232

What Is 4K HDMI 3D fiber optic Extenders 4Kx2K EDID RS232

4K HDMI 3D fiber optic Extenders 4Kx2K EDID RS232 provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, EDID copy/pass-thru and RS232 function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Optional version:
1. Singlemode 0-2Km
2. Singlemode 0-10Km
3. Singlemode 0-20Km
4. Multimode 0-300m

Features

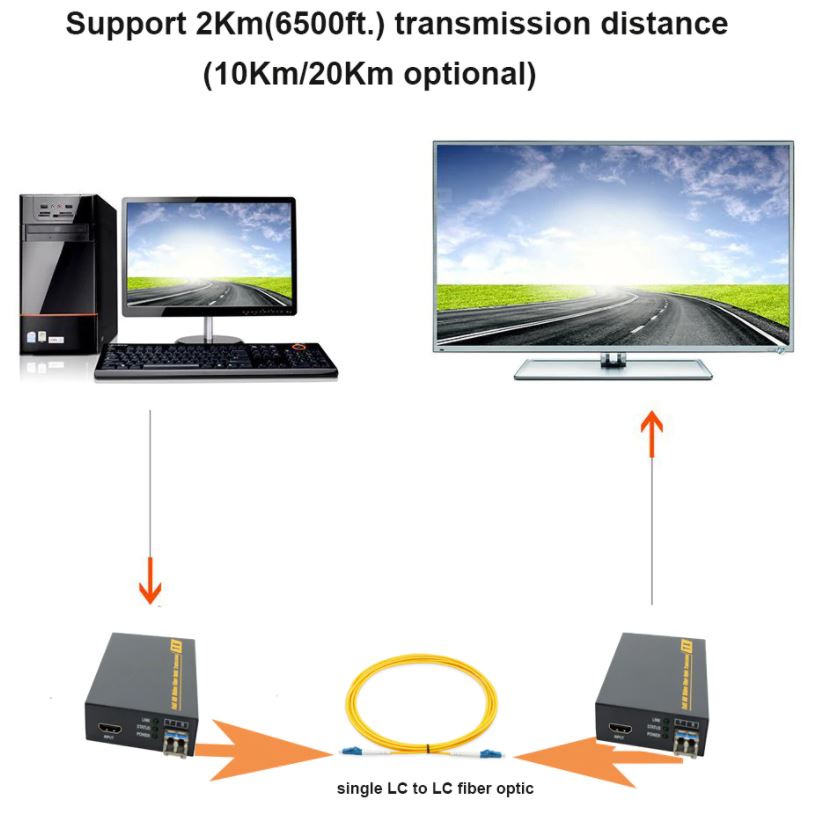

Transmits HDMI video signals up to 0km-20km over a dual single LC/LC fiber optic cable ;
Support video resolution max up to [email protected], [email protected]; 3D;
Support copy EDID copy, can match many kind display device;
Support RS232 undirectional transmission
Compliance with HDMI 1.4 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

4K HDMI 3D fiber optic Extenders 4Kx2K EDID RS232 B4K HDMI 3D fiber optic Extenders 4Kx2K EDID RS232 A4K HDMI 3D fiber optic Extenders 4Kx2K EDID RS232 2Km 6500ft 10Km 20km4K HDMI 3D fiber optic Extenders 4Kx2K EDID RS232 HD 4Kx2K 30Hz 3840×2160

Specifications

Parameter		Description
Video	Standards	HDMI 1.4
	Maximum pixel clock	225MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to [email protected], 3D, 1920*[email protected]
	Connector	HDMI-A Interface
	HDMI Cable Range	<5M( Resolution: 1920*[email protected])
	Impedance	100Ω
RS232	Interface	Industrial Terminal
	Signal Direction	Unidirectional
	Baud Rate	Self-adaptive,Max: 115200bps
	Data Bits	8
Optical fiber	Interface	SFP model – LC connector, dual LC ports
	Fiber type	Single-mode
	Wavelength	Single-mode 1310nm/ 1550nm
	Interface bandwidth	10Gbps
	Transmission distance	Single-mode fiber: standard 2km；maximum 10km Multi- mode fiber: < 300M
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ - +70℃
	Humidity	Operating: 5% - 90%
	Dimension	94.5*73*26mm
	The warranty	1 year free warranty

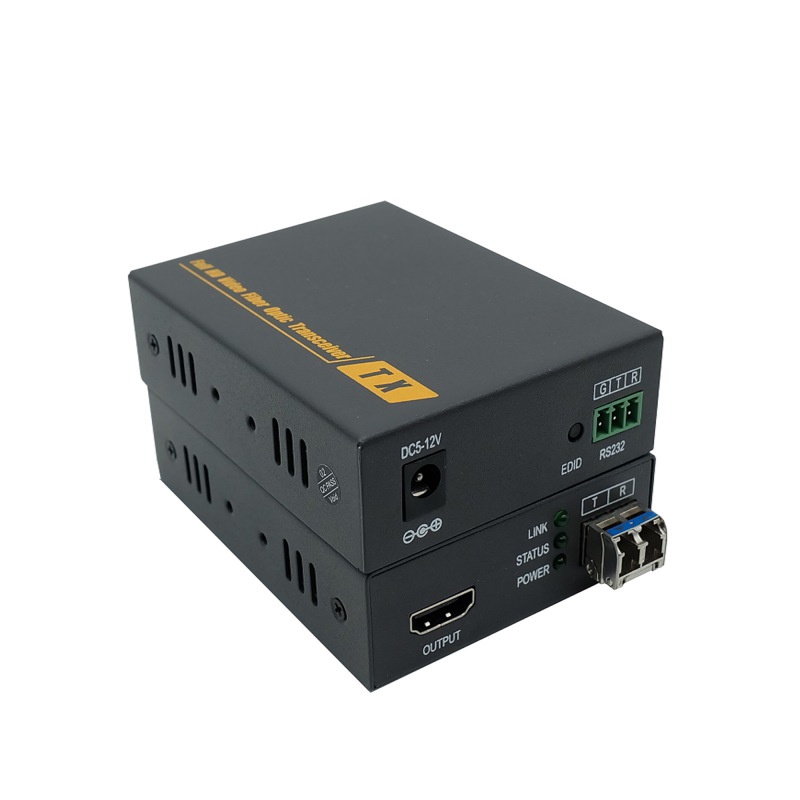

4K HDMI 3D fiber optic Extenders 4Kx2K EDID RS232 Shema

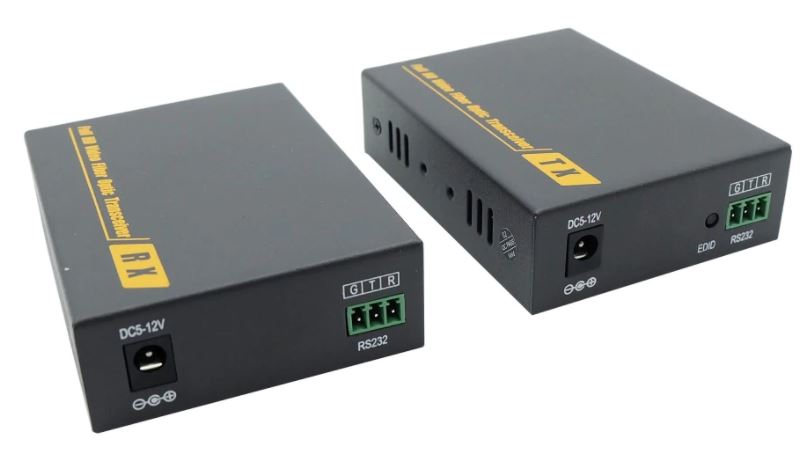

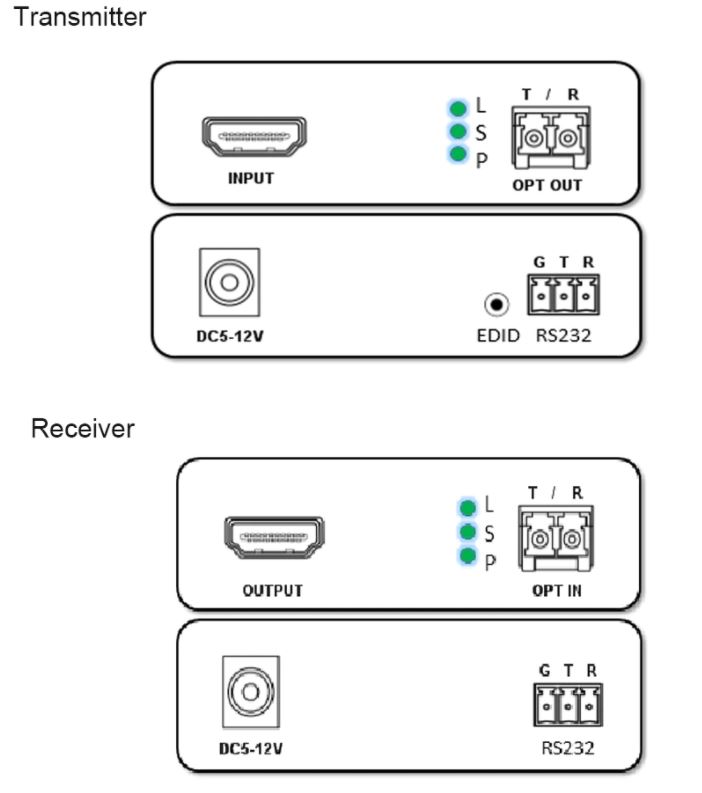

Port name	Description
HDMI IN/OUT	HDMI signal input/output
EDID	EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID.
DC/5-12V	Power adapter socket
TX/ RX	TX: Transmitter RX: Receiver
RS232	Industrial Terminal
FIBER	SFP model — LC connector (dual port or single port optional)

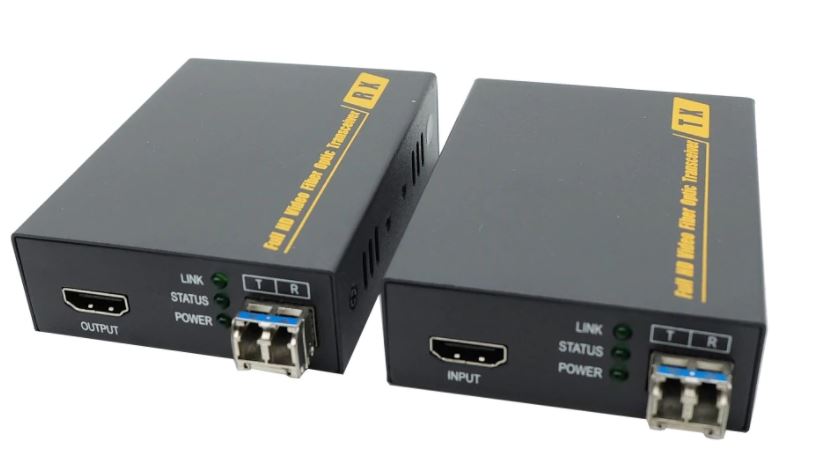

LED indicator	Description
L	Optical fiber signal connection indicator
S	Video signal connection indicator
P	System power indicator
TX/ Rx L,S, P All bright	Devices is on EDID,HDCP, pass-through process

Package list:

HDMI optical fiber transmitter ………. 1 pcs
HDMI optical fiber receiver ……………. 1 pcs
SFP Fiber optic module ………………………….2 pcs
Power adapter (US/EU/UK/AU optional)……………2 pcs
User manual ……………………………….….. 1 pcs

4K HDMI 3D fiber optic Extenders 4Kx2K EDID RS232 Diagram

Installation:

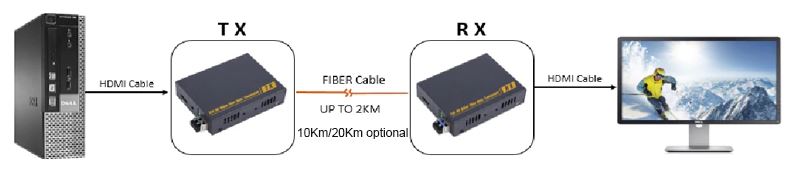

1, the HDMI source HDMI optical transceiver connected to the sender,

2, the HDMI optical receiver connected to the display device (such as high-definition TV, mosaic screen, etc.)

3, the use of LC interface fiber optic cable to connect the sending end and the receiving end of the SFP module optical interface,

4, the transmitter and receiver connected to the power supply, when the indicator light is lit, the system is running.

5, on the EDID button use, such as the connection after the launch of the P, S, light, the receiving end of the indicator light, no display or color, the transmitter power to the HDMI port of the monitor and the transmitter HDMI port , Press the EDID button until the S light flashes, stop after the restart power, repeat 1-5 steps can be, if access to dual-fiber EDID and HDCP transparent mode for the signal source for the Blu-ray DVD and the need for two-way RS232 client
