What Is HDMI fiber optic Extenders 1080p 60Hz 20Km
HDMI fiber optic Extenders 1080p 60Hz 20Km Support 1920*[email protected] max, High definition image, HDMI signal transmission no compression, Super-stability.14 solts Rack Mountable, Custom made Available.
Features:
High definition image output, HDMI signal transmission no compression, super-stability, long working life.
Transmits HDMI video and audio signals up to 20km over one single mode fiber optic cable, 0-300m over multimode fiber.
Support video resolution up to 1920*[email protected]
Support TCP/IP;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
No need any drive.
Simple to install, plug and play

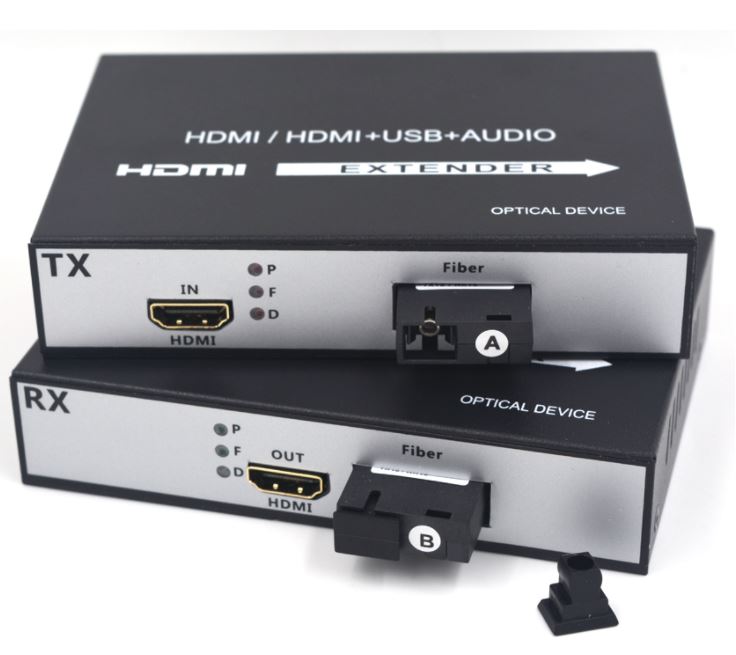

HDMI fiber optic Extenders 1080p 60Hz 20Km B

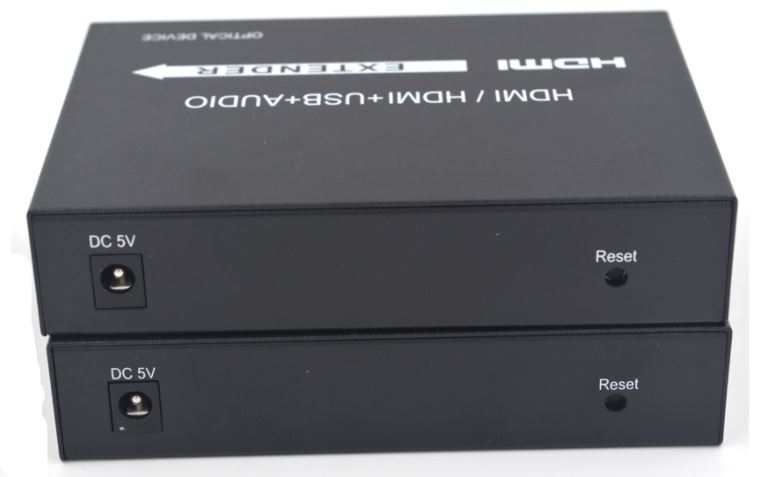

HDMI fiber optic Extenders 1080p 60Hz 20Km Back

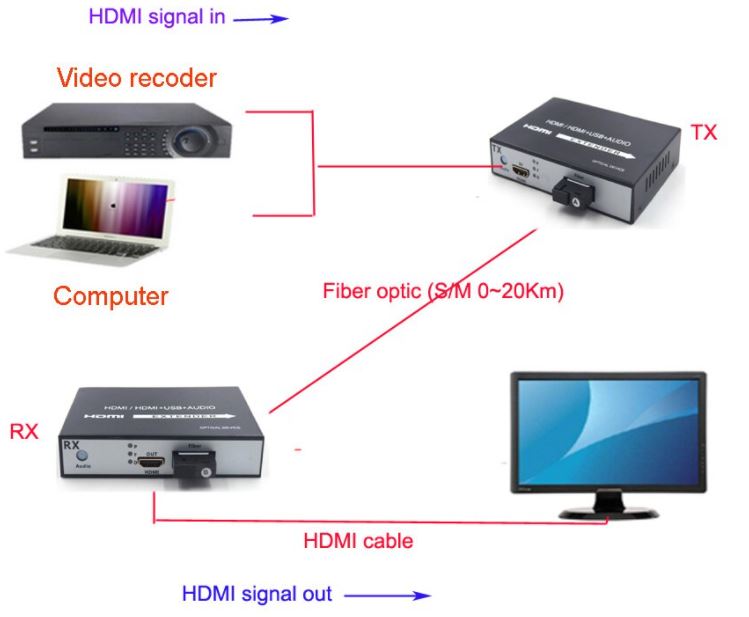

HDMI fiber optic Extenders 1080p 60Hz 20Km Diagram

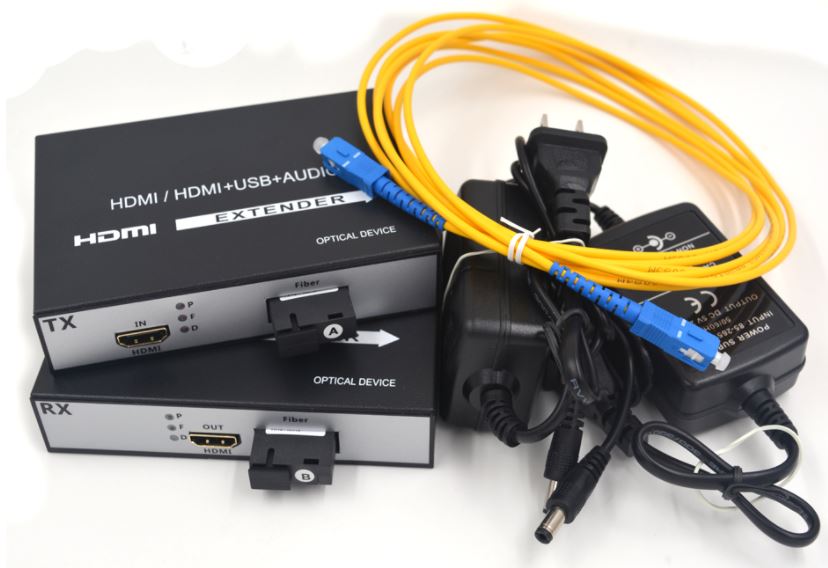

HDMI fiber optic Extenders 1080p 60Hz 20Km Pack

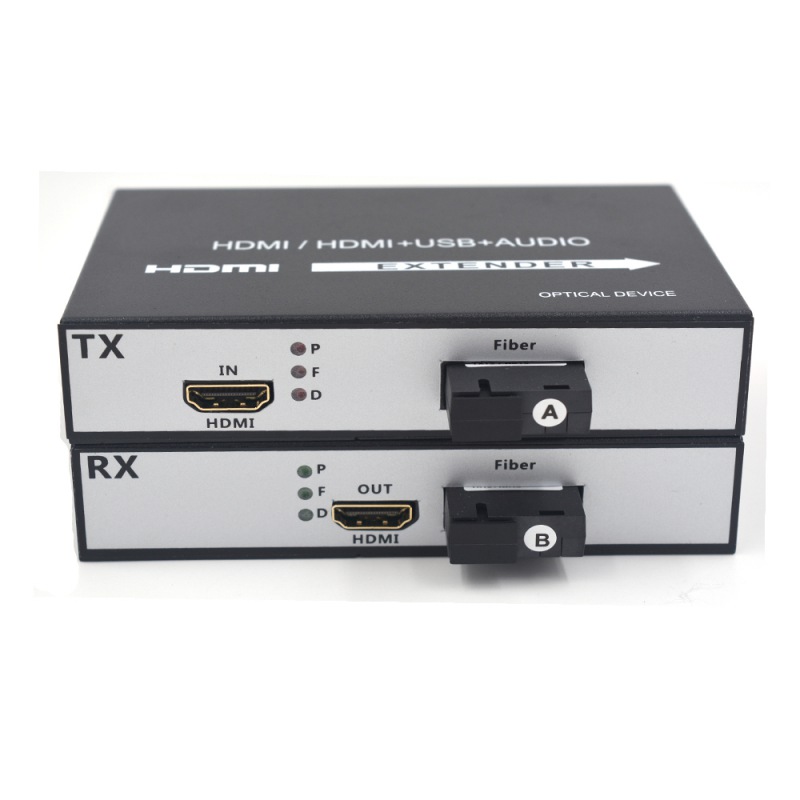

HDMI fiber optic Extenders 1080p 60Hz 20Km port

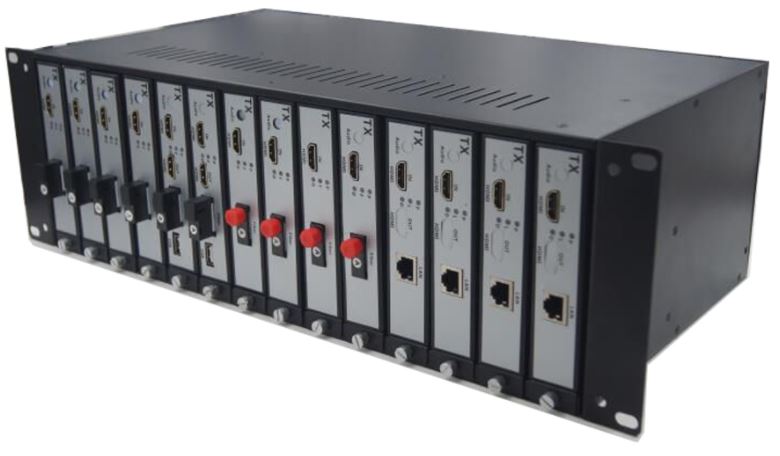

HDMI fiber optic Extenders 1080p 60Hz 20Km Rack mountParameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 10.2Gbps | |
Resolution range | Up to [email protected] | |
Connector | Female HDMI | |
Impedance | 100Ω | |
Optical fiber | Interface | SC connector |
Fiber type | Single Mode /Multimode | |
Wavelength | S/M 1310nm, 1510nm | |
Transmit power | ≥-9.5dBm | |
Transmission distance | Standard: 0-20km of singlemode fiber, 0-300meters of mulitmode fiber | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5- +70°c | |
Humidity | Operating: 5% - 90% | |
Dimension | ||
The warranty | 2 years free warranty | |
Package contents:
1 x HDMI Transmitter (TX)
1x HDMI Receiver (RX)
1x 3m SC/SC singlemode patch cord fiber
2 x power supply DC5V/2A (default ship US, EU/UK/AU is available)
1 x User manual
