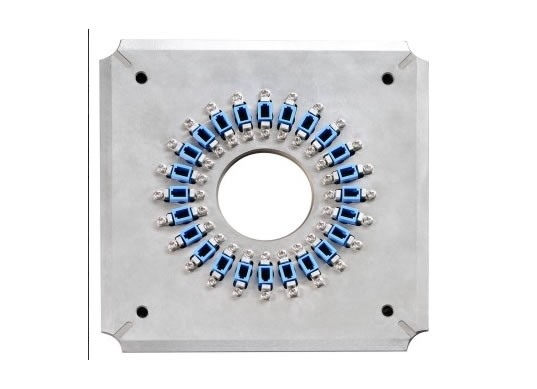

24 LC PC Fiber Optic Connector Polishing jigs grinding fixture Four Corner

What is 24 LC PC Fiber Optic Connector Polishing jigs grinding fixture Four Corner

24 LC PC Fiber Optic Connector Polishing jigs grinding fixture Four Corner use to fix SC connector on fiber optic polishing machine for connector polishing process in Fiber optic patch cord and pigtail production Line .This Type of LC/PC Fiber Optic Connector Polish jig grinding fixture design for Fiber Polishing Machine Four Corner Pressure Type Polisher.This polishing fixture for LC/PC 24 Connectors are made of stainless steel adopting four corners pressurized way which can polish in a more stable and efficient way. Meanwhile, the adapter of connector jig can be interchanged, prolong the service life of grinding plate.

Product Details

Adopt central pressurized way to polish, more stable;
The plugs of connector polishing jig can be interchanged, prolong the service life of grinding plate;
High efficiency, polishing Max 24 or 32 connectors in one cycle;
Made with high quality, by using hardened steel S13;
This fiber polishing jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing;

Main features:

1. Special designed for polishing LC/PC connectors.

2. 24 connectors can be placed for polishing at the same time.

3. Parts are changeable on each polish jig, it is cost effective.

4. Signifiacant number marked on each plate, easy to be identified by operator.

5. Push & pull type are speed to suit operation need.

6. The water inlet hole of polish jig comply with the water outlet of polish machine,

7. it is easy to expel the dirts out during operation.

Specifications:
Suitable style: LC/PC CONNECTOR STYLE
Connector head: 24 Position
