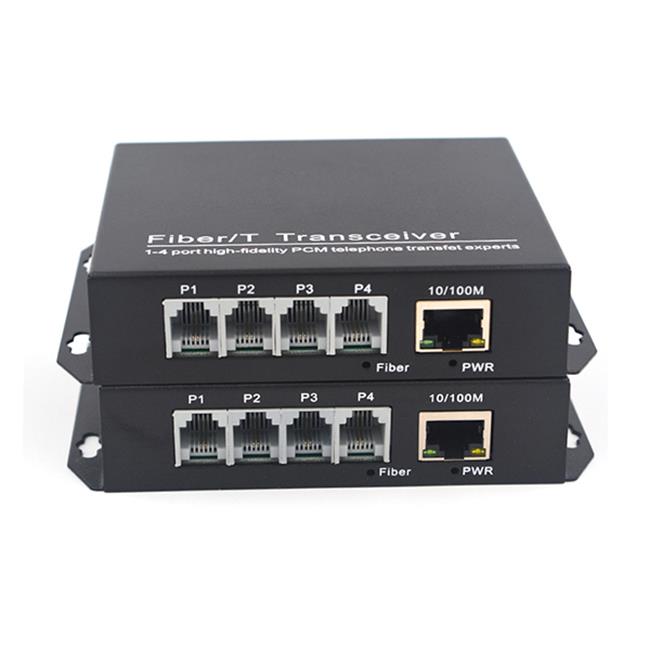

What Is 4 PCM Voice Telephone Media Converter Over Fiber with Ethernet
Description:
4 PCM Voice Telephone Media Converter Over Fiber with Ethernet The PCM Voice Telephone system over one Fiber Optic S/M up to 20Km (12.4miles) and M/M up to 500m. with one 10/100Mbps Ethernet for network extending, also can use for IP camera with RJ45 connector,SC fiber interface(FC/ST/LC optional). , S/M 40Km/60Km/80Km optional.
Features:
1. Support Protocol: IEEE 802.3, IEEE 802. 1Q (VLAN)
2. Transmission distance : singlemode fiber up to 20Km, Multimode fiber up to 500meters.
3. Network bandwidth: 10-100Mbps (per network port) full duplex, half duplex fully adaptive
4. Adopt traditional PSTN normal voice, each voice occupies a 64K channel, support caller ID and fax.
5. Compact design, beautiful appearance and convenient installation and operation.
6. Complete status display function for easy maintenance and management.
7. Single-mode and multi-mode adaptive, simplex SC interface

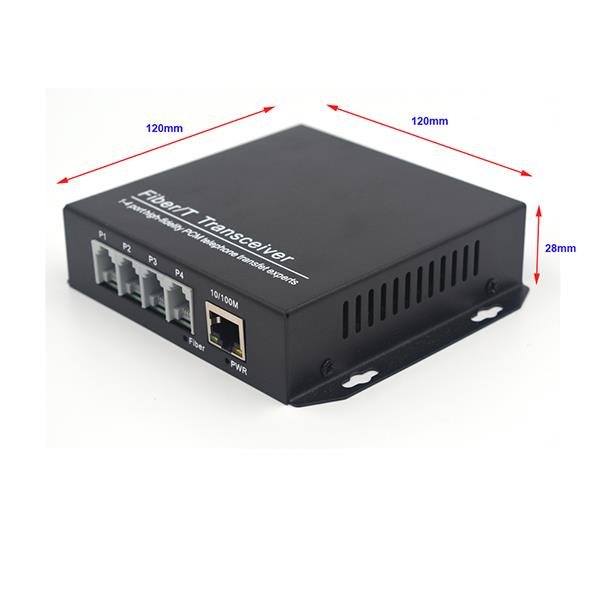

4 PCM Voice Telephone Media Converter Over Fiber with Ethernet Size

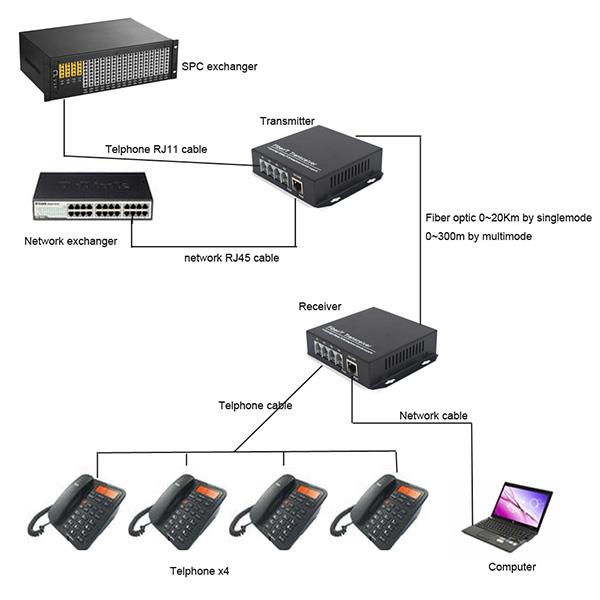

4 PCM Voice Telephone Media Converter Over Fiber with Ethernet DiagramPhone RJ11 port specifications:
● Voice coding: PCM coding, 64Kbps per voice
● Crosstalk attenuation: ≥65dB
● Balanced noise: ≤63.7dBmop
● Insertion loss: -3 ± 0.75dB
● Frequency characteristics: 300 to 3400 Hz (-0.6 to +3 dB)
● Relay port (FXO): connected to the switch
● Two-wire AC input impedance: 200+680//0.1 Ω (three components)
● Ringing voltage: 35 - 150V
● Ringing frequency: 17-60HZ
● Return loss: 20 db
● User Interface (FXS): Connect to the user’s telephone
● Two-wire AC input impedance: 200+680//0.1 Ω (three components)
● User line loop resistance: less than 1KΩ (including phone)
● Ringing voltage peak-to-peak value: 110-150V
● Ringing frequency: 22-28HZ
● Feed voltage: 28V
● Feed current: 20-50mA;
● Return loss: 20 db
● Bell flow: AC90 plus or minus 15V
Ethernet RJ45 port specifications:
● Rate: 10M/100M, full duplex, half duplex fully adaptive
● Actual transmission bandwidth: 50Mbps per network port
● Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)
● Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)
Package include:
● 1x telephone Transmitter
● 1x telephone Receiver
● 2x power supply adatper (plug US/EU/UK/AU optional)
● User Manual
