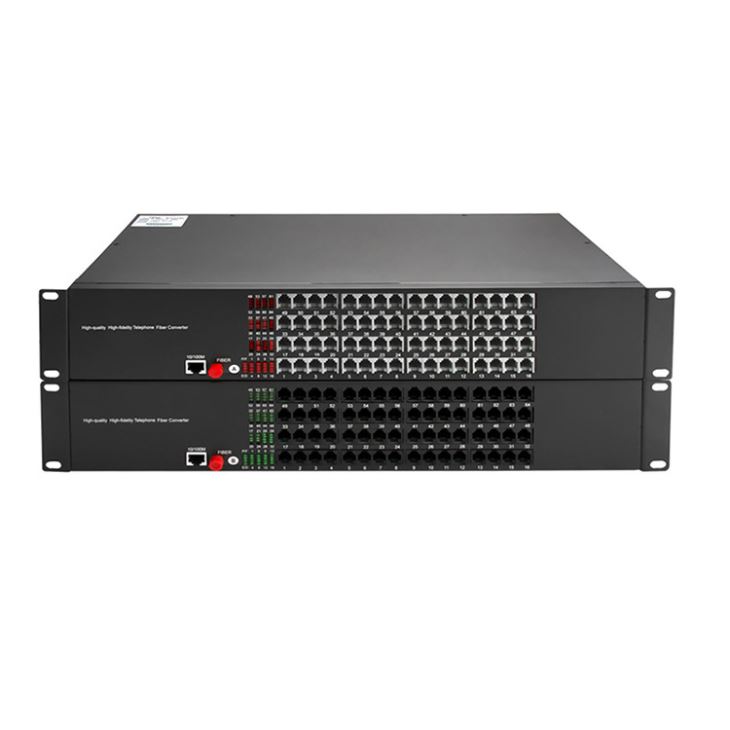

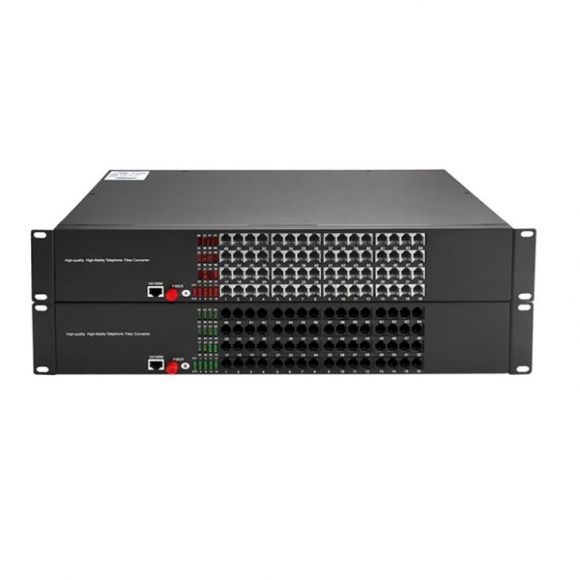

64 Channels Telephone Over Fiber Optic Extender

What Is 64 Channels Telephone Fiber Optic Extender

Telephone Extenders – 64 channels PCM Voice Telephone over Fiber Optic with 10/100Mbps Ethernet, FC fiber interface(SC optional) , Singlemode fiber working distance up 20Km (40Km/60Km/80Km optional).

Features:

1. Transmission distance through single single mode can be up to 20Km, Also compatible with multimode fiber 0-500meters.
2. The 48 channels telephone is synchronized in real-time on a single-core fiber optic, without distortion, high quality.
3. The plug-and-play design makes installation easy and eliminates the need for on-site adjustment.
4. With 10/100Mbps Ethernet (RJ45 port), for remote computer network signal transmission
5. Plug and play, Warranty-12 Months

Applicable environment
1. Urban Intelligent Traffic Monitoring System (ITS) Tunnel Communication Intercom and Monitoring System
2. Remote multimedia teaching / campus monitoring TV teleconferencing transmission system
3. Large-scale factory and mine enterprise security monitoring system Long-distance broadcast TV transmission system
4. Safe City High Definition Monitoring System Building Visual Intercom Control System
5. Highway monitoring/communication system
6. Community intelligent monitoring system
7. Electric/hydraulic safety monitoring system

Telephone port specification:
1. Application: Remote telephone networking
2. Physical interface terminal: RJ11
3. Ringing voltage: 75V
4. Ringing frequency: 25HZ
5. Return loss: 40 dB
6. Ring detection voltage: 35V

10/100M Ethernet specification :
1. Application: Remote computer networking, video server network signal transmission
2. Physical interface: RJ45 Unshielded Cat.5
3. Interface rate: 10/100Mbit/s adaptive, default is 100MBPS working status
4. Support Protocol: IEEE 802.3 100Base-TX, 10/100M Ethernet Standard
5. Communication mode of operation: full or half duplex

The 64 channels PCM Voice Telephone system over single Fiber Optic up to 20Km (12.4miles), with one 10/100Mbps RJ45 port for computer networking transmission, also can use for IP camera with RJ45 connector, FC fiber interface(SC/ST optional). Singlemode 40Km/60Km/80Km optional.

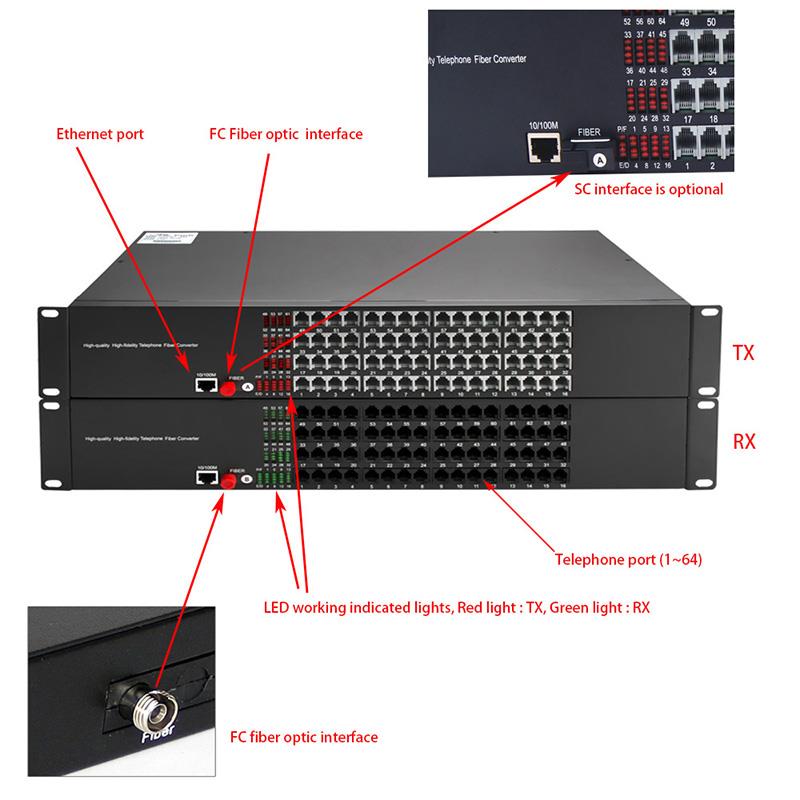

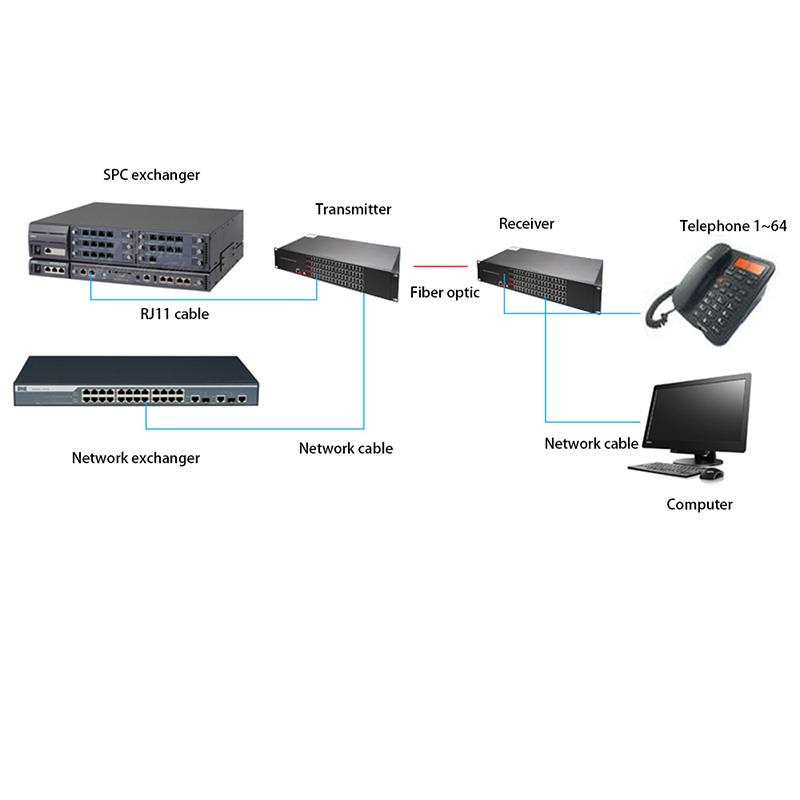

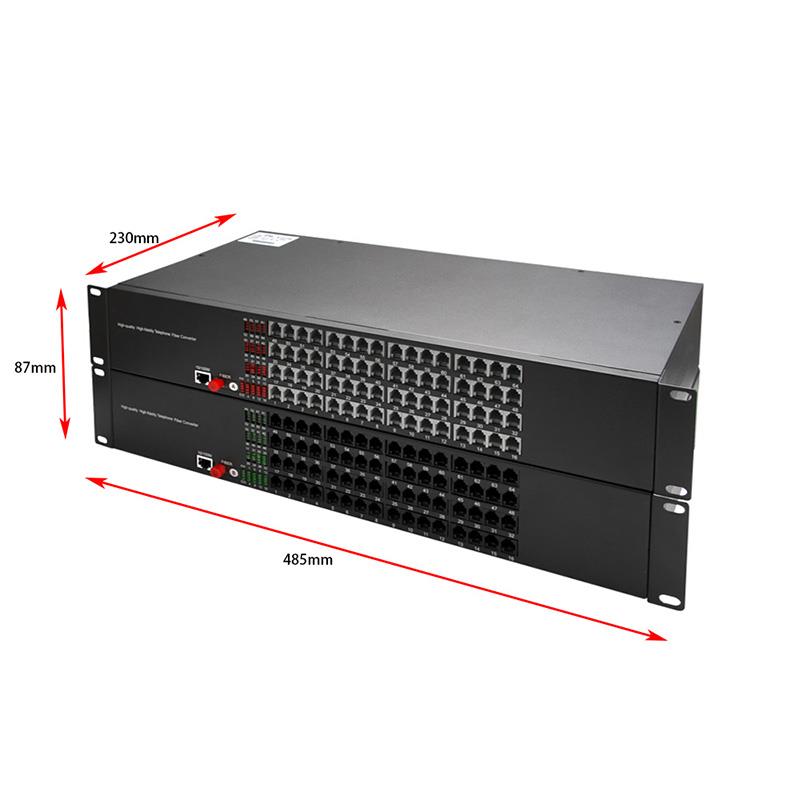

64 channels PCM Voice Telephone over Fiber Optic with one 10/100Mbps RJ4564 channels PCM Voice Telephone over Fiber Optic with one 10/100Mbps RJ45 Size64 channels PCM Voice Telephone over Fiber Optic with one 10/100Mbps RJ45 Ports64 channels PCM Voice Telephone over Fiber Optic with one 10/100Mbps RJ45 Diagram

Feature:

1. Working distance: single mode up to 20Km(12.4miles), multimode fiber up to 500meters. FC fiber interface (SC/ST optional).

2. Adopt traditional PSTN normal voice, each voice occupies a 64K channel, support caller ID and fax.

3. Transmission bandwidth: 10-100Mbps (per network port) full duplex, half duplex fully adaptive

4. Premium quality PCM voice telephone Modular design, stable and reliable performance, Plug and Play.

5. Support Protocol: IEEE 802.3, IEEE 802. 1Q (VLAN).

100Mbps Ethernet :

1. Application: Remote computer networking, video server network signal transmission

2. Physical interface: RJ45 Unshielded Cat.5/Cat6/7

3. Interface rate: 10/100Mbit/s adaptive, default is 100MBPS working status

4. Support Protocol: IEEE 802.3 100Base-TX, 10/100M Ethernet Standard

5. Communication mode of operation: full or half duplex.

Power supply:

1.Working voltage: AC100-240V, DC5V/5A.

2.US/EU/UK/AU type power supply adaptor is available.

Package include:

1x 64 channels telephone Transmitter

1x 64 channels telephone Receiver

1x 3M SC/SC singlemode fiber patch cord

2x power supply adapter.

1x User Manual
