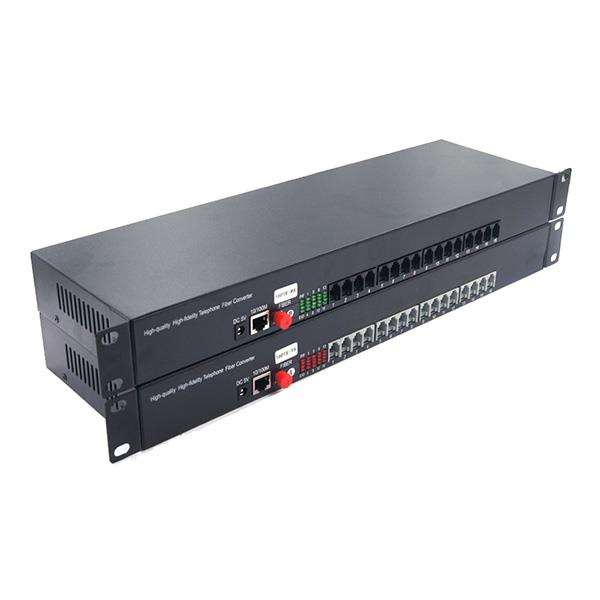

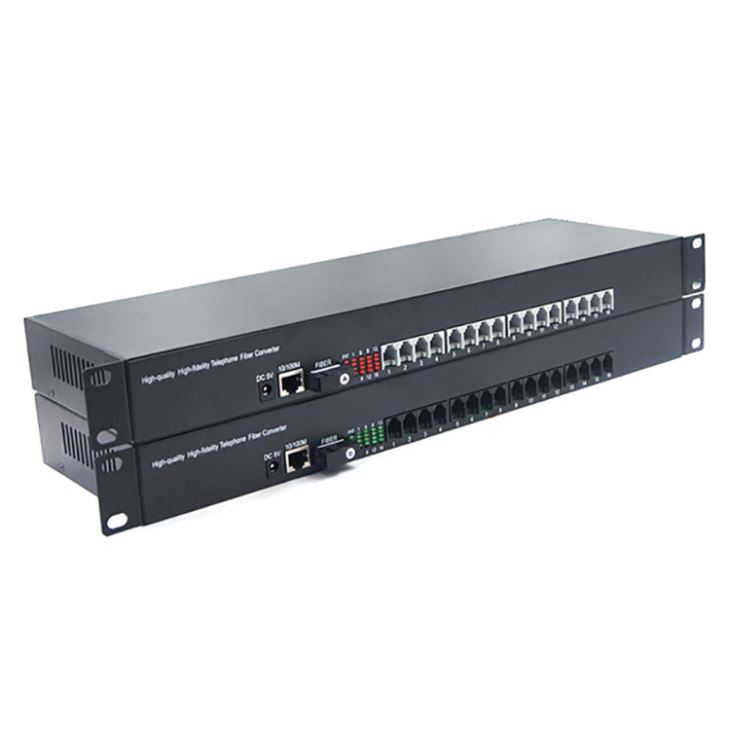

16 Channels Telephone Over Fiber Extender+Ethernet

What Is 16 Channels Telephone Over Fiber Extender With Ethernet

Description:

The 16 channels PCM Voice Telephone system over Fiber Optic Singlemode up to 20Km (12.4miles) and multimode up to 500m, and with one 10/100Mbps Ethernet for network extending, also can use for IP camera with RJ45 connector, SC fiber interface(FC/ST optional). Singlemode 40Km/60Km/80Km is optional.

Features:

1. Transmission distance by single mode fiber up to 20Km, Simplex SC Fiber Optical interface (FC optional)

2. Adopt traditional PSTN normal voice, each voice occupies a 64K channel, support caller ID and fax.

3. Transmission bandwidth: 10-100Mbps (per network port) full duplex, half duplex fully adaptive

4. High quality PCM voice telephone Modular design, stable and reliable performance, Plug and Play.

5. Support Protocol: IEEE 802.3, IEEE 802. 1Q (VLAN). 1U 19” Rack Mountable

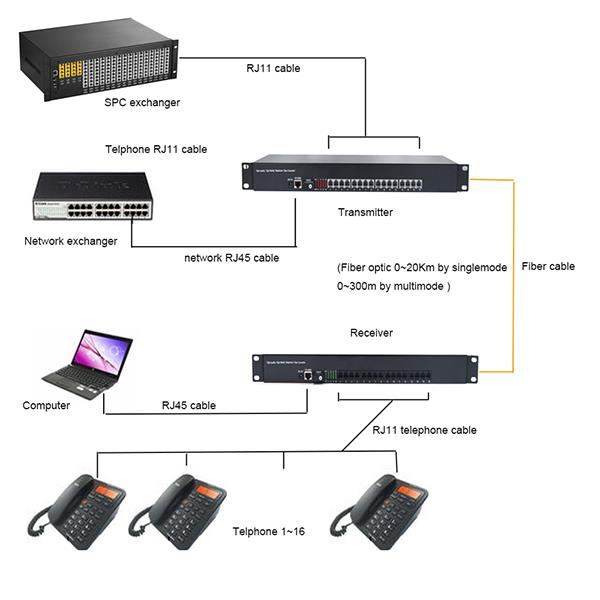

16 Channels Telephone Over Fiber Extender With Ethernet16 Channels Telephone Over Fiber Extender With Ethernet16 Channels Telephone Over Fiber Extender With Ethernet Diagram

Features:

1. High quality PCM voice telephone Modular design, stable and reliable performance
2. Support Protocol: IEEE 802.3, IEEE 802. 1Q (VLAN)
3. Transmission bandwidth: 10-100Mbps (per network port) full duplex, half duplex fully adaptive
4. Adopt traditional PSTN normal voice, each voice occupies a 64K channel, support caller ID and fax.
5. Compact design, beautiful appearance and convenient installation and operation.
6. Complete status display function for easy maintenance and management.
7. Single-mode and multi-mode adaptive,FC or SC fiber interface optional.
8. Working distance : singlemode fiber 0-20Km, and compatible with Multimode fiber 0-500meters.

Phone RJ11 port specifications:

1. Voice coding: PCM coding, 64Kbps per voice
2. Crosstalk attenuation: ≥65dB
3. Balanced noise: ≤63.7dBmop
4. Insertion loss: -3 ± 0.75dB
5. Frequency characteristics: 300 to 3400 Hz (-0.6 to +3 dB)
6. Relay port (FXO): connected to the switch
7. Two-wire AC input impedance: 200+680//0.1 Ω (three components)
8. Ringing voltage: 35 - 150V
9. Ringing frequency: 17-60HZ
10. Return loss: 20 db
11. User Interface (FXS): Connect to the user’s telephone
12. Two-wire AC input impedance: 200+680//0.1 Ω (three components)
13. User line loop resistance: less than 1KΩ (including phone)
14. Ringing voltage peak-to-peak value: 110-150V
15. Ringing frequency: 22-28HZ
16. Feed voltage: 28V
17. Feed current: 20-50mA;
18. Return loss: 20 db
19. Bell flow: AC90 plus or minus 15V

Ethernet RJ45 port specifications:

1. Rate: 10M/100M, full duplex, half duplex fully adaptive
2. Actual transmission bandwidth: 50Mbps per network port
3. Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)
4. Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)

Power supply:

1. Suitable working voltage AC100-240V, DC5V/5A.
2. US/EU/UK/AU power supply adaptor is available.

Applicable environment:

Major communication operators, governments, enterprises and institutions.

Package include:

1. 1x 16CH PCM telephone Transmitter
2. 1x 16CH PCM telephone Receiver
3. 2x power supply (US/EU/UK/AU plug available)
4. Manual
