- Description

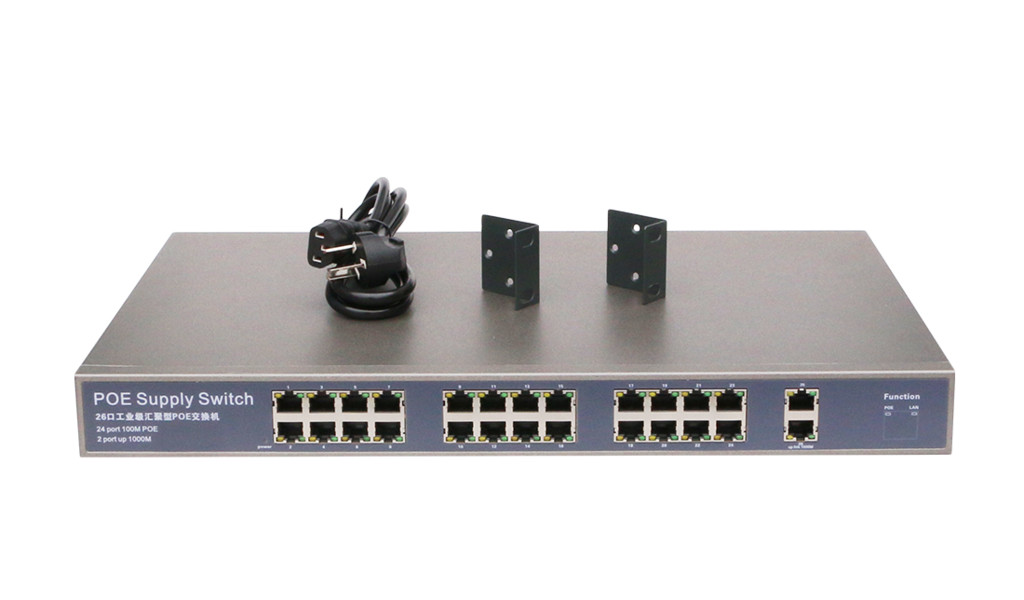

24 Port FE POE 2 Port Gigabit Up-link POE Switch
applied to POE IPC camera, POE WIFI AP, and POE IPPHONE, and easy for network transmission.
Main Features
◆ 2FE POE+2GE.
◆ Comply to IEEE 802.3、IEEE 802.3u、IEEE 802.3ab.
◆ Comply to POE IEEE 802.3af/at standard, all ports standard testing.
◆ Support POE IPC camera, POE WIFI AP, and POE IPPHONE.
◆ Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
◆ Auto MDI/MDIX.
◆ Upstream port lightning protection.
◆ MAX 30W, MAX power 300W.
◆ Store-and-forward.
◆ All ports support wire speed switch, jumbo frame transmission.
◆ Zero QFD, self-adaption.
◆ Panel lights can monitor operative mode and malfunction analysis.
Electric Port
1000M Rj45
2
100M POE
24
Function
Exchange
Mechanism
Store-and-forward
Exchange Capacity
16G
MAC
8K
Environmental
Working Temperature：0℃-40℃
Storage temperature ：-40℃-70℃
Working Humidity ：10%-90% RH non-condensing
Storage Humidity：5%-90% RH non-condensing
POE
IEEE802.3af/at, MAX 30W, MAX power 150W
Power
AC110-265V 2.5A
Network protocol
IEEE 802.3X
IEEE 802.3i 10BASE-T X
IEEE 802.3u 100BASE-TX
IEEE 802.3af /IEEE 802.3at
IEEE 802.3x Flow control
IEEE 802.1q VLAN Bridge operation
Default Mode
Common switch
Match
VLAN isolation
Speed
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Gigabit Ethernet 2000Mbps full-duplex
Network Media
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤100m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤100m)
1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤100m)
1000Base-SX:62.5um/50um MMF（2m-550m)
1000Base-LX:62.5um/50um MM（2m-550m) or 10um SMF（2m-5000m)
Physical Specifications
Product Size：440mm*290mm*45mm（L*W*H）
package Size：497mm*393mm*97mm（L*W*H）
4Kg
