- Description

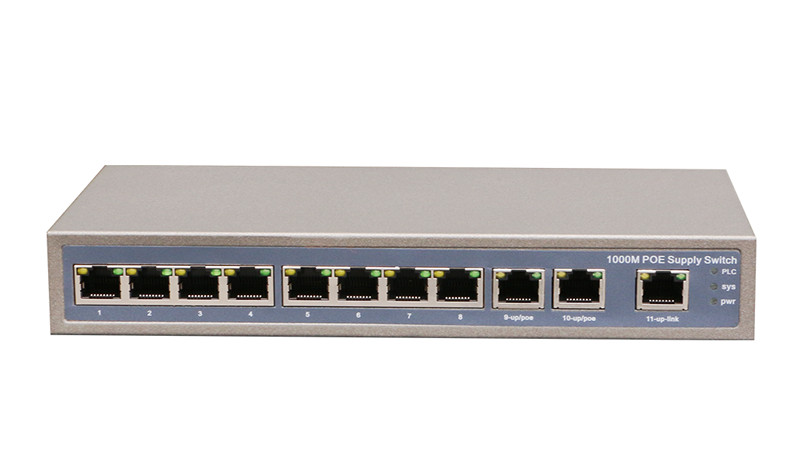

8 Port POE Power Supply Switch+3FE/GE UPlink
applied to POE IPC camera, POE WIFI AP, and POE IPPHONE, and easy for network transmission.
Main Features
◆ 8FE/GE POE+3FE/GE.
◆ Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
◆ Comply to POE IEEE 802.3af/at standard, all ports standard testing.
◆ Support POE IPC camera, POE WIFI AP, and POE IPPHONE.
◆ Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
◆ Auto MDI/MDIX.
◆ Upstream port lightning protection.
◆ MAX 30W, MAX power 120W.
◆ Store-and-forward.
◆ All ports support wire speed switch, jumbo frame transmission.
◆ Zero QFD, self-adaption.
◆ Panel lights can monitor operative mode and malfunction analysis.
Model
POE11AF
Electric Port
100/1000M Rj45
3
100/1000M POE
8
Function
Exchange
Mechanism
Store-and-forward
Exchange Capacity
2.2G
MAC
1K
Environmental
Working Temperature：0℃-40℃
Storage temperature ：-40℃-70℃
Working Humidity ：10%-90% RH non-condensing
Storage Humidity：5%-90% RH non-condensing
POE
IEEE802.3af/at, MAX 30W, MAX power 120W
power
AC110-265V 2.5A
Network protocol
IEEE 802.3X
IEEE 802.3i 10BASE-T X
IEEE 802.3u 100BASE-TX
IEEE 802.3af /IEEE 802.3at
IEEE 802.3x Flow control
Default
Mode
Common switch
Match
VLAN isolation
Speed
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100/1000Mbpshalf-duplex, 200Mbps full-duplex
Network Media
10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m)
100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m)
Physical Specifications
Product Size：225mm*105mm*32 mm(L*W*H)
package Size：300mm*175mm*100mm(L*W*H)
1.2kg
