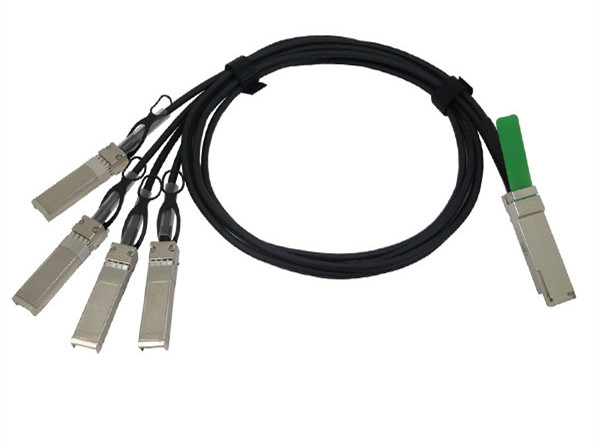

5m Cisco QSFP-4SFP10G-CU5M Compatible 40G QSFP+ to 4x10G SFP+ Passive Direct Attach Copper Breakout Cable
Cisco Genuine QSFP-4SFP10G-CU5M Vendor Name sfiberoptic Connector Type QSFP+ to 4 SFP+ Max Data Rate 40Gbps Cable Type Passive Copper Cable Wire AWG 30AWG Cable Length 5m(16.4ft) Commercial Temperature Range 0 to 70°C (32 to 158°F) Features
Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
Support for multi-gigabit data rates :1.0 Gbps – 10.3125 Gbps (per channel)
Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s)
Hybrid cable link length up to 5m (passive limiting)
High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
Power Supply :+3.3V
Low power consumption: 0.02 W (typ.)
Temperature Range: 0- 70 °C
Applications
40G QSFP+ to 4x10SFP+
10G/40Gigabit Ethernet
InfiniBand SDR, DDR, QDR
Switches, Routers, and HBAs
Data Centers
Fibre Channel
STANDARDS COMPLIANCE
QSFP+
SFF-8436
QDR InfiniBand
QSFP+ MSA
RoHS Compliant
SFP+
SFF-8431
SFP+ MSA
RoHS Compatible
Product Description
The QSFP+ to 4x SFP+ Passive cable assemblies are high performance，cost effective for SFP+ and QSFP+ equipment interconnects . The Hybrid cables are compliant with SFF-8436 and SFF-8431 specifications. It is offer a low power consumption，short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s ,providing an aggregated rate of 40Gb/s.
